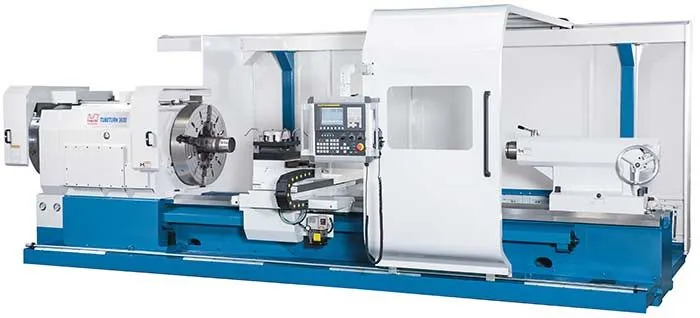

NEW KNUTH TUBETURN CNC

Equipped With

TubeTurn CNC 2830
TubeTurn CNC 3630
Working Area
Turning diameter over bed
39 in
Turning-¯ over support
26 in
24 in
Bed width
24 in
30 in
Center height
20 in
Machining length (max.)
118 in
Travels
Travel X-axis
23.6 in
24 in
Travel Z-axis
110 in
Headstock
Speed range
5 - 450 rpm
3 - 315 rpm
Spindle bore
11 in
14 in
Rapid Feed
Rapid Feed X-axis
157.48 in/min
Rapid Feed Z-axis
236.22 in/min
Tool Head
Number of tool stations
4 positions
Accuracies
Positioning accuracy X-axis
0.00118 in
Positioning accuracy Z-axis
0.00236 in
Repeatability X-axis
0.00047 in
0.00472 in
Repeatability Z-axis
0.00098 in
Tailstock
Tailstock taper
MT 6
metric 80
Tailstock quill diameter
5 in
6 in
Tailstock quill stroke
10 in
12 in
Drive Capacity
Motor rating main drive
24.8 Hp
40.2 Hp
Motor rating X-axis
3.4 Hp
4 Hp
Motor rating Z-axis
3.35 Hp
4.02 Hp
Measures and Weights
Overall dimensions (length x width x height)
229x56x60 in
249x79x69 in
Weight
17,600 lbs
28,600 lbs
This machine was designed for use in demanding petroleum industry applications and integrates decades of experience
The wide machine bed features large, hardened and ground guideways and high rigidity
Machining lengths up to 118 inch - expandable to 63 inch upon request

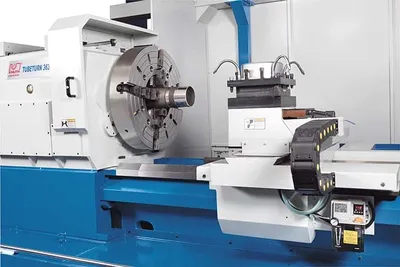

Massive headstock with main spindle running in tapered roller bearings, and 2 lathe chuck mounts
Spindle bore 14 inch (standard) -
Up to 25 inch through-bore upon request
Fanuc 0i-TF-V with Manual Guide 0i features advanced control technology and maximum reliability
High-torque drives and preloaded ball screws on all axes
Automatic 2-step gears with 2 infinitely variable speed ranges
Hardened and ground gears for effective power transmission
Powerful main drive motor with 40 HP rating
Heavy-duty 4-station tool holder with automatic tool changing function
Including high-performance coolant system, and central lubrication unit
Fanuc 0i TF control
Easy programming and operation, short learning curve
User-friendly graphics display for visual verification of parts programs
Use of existing programs without reprogramming requirements
High-speed machining and standard nano-interpolation
Fixed cycles and custom macro B for simplified parts programming
State-of-the-Art functionality, like jerk limitation, nano smoothing, and Al Contour Control ll - compatibile with previous version series 0 and series 0i models A, B, C and D
Series 0i Model F are the successor models of the Series 0 and Series 0i, which are the most popular CNC controls worldwide with over 700,000 installations.
With up to 4 simultaneously controlled axes, the CNC Series 0i provides the best controls for highly demanding machine tools.
Fanuc 0i-TF V with Manual Guide 0i
electronic hand-wheel
two 4-jaw faceplate lathe chucks 31 inch ¯
automatic 2-step gears
4-station tool holder

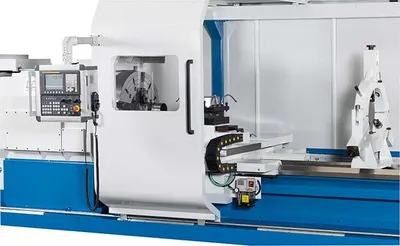

steady rest 2" - 19"
coolant system
central lubrication
Mechanical tailstock
work lamp
operating tools
operating manual and programming instructions
