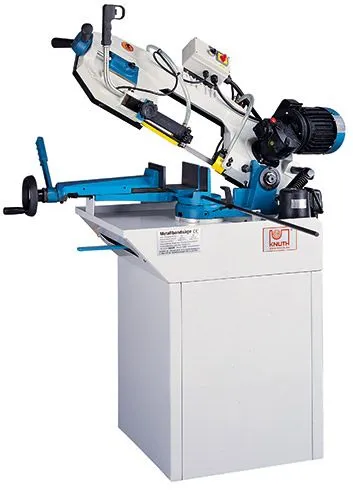

NEW KNUTH HB

Equipped With

HB 210 A
HB 250 A
Cutting Capacities
Cutting capacity 90¡ round
7 in
9 in
Cutting capacity 90¡ - flat
6x8 in
10x7 in
Cutting capacity 45¡ - flat
4x5 in
8x6 in
Cutting capacity 45¡ - round
5 in
6 in
Belt speed
131 / 262 fpm
131 / 295 fpm
Cutting capacity 60¡ round
4 in
Drive Capacity
Main motor rating
1 Hp
1,48 Hp
Measures and Weights
Overall dimensions (length x width x height)
52x23x35 in
54x23x36 in
Weight
334 lbs
407 lbs
Cast-iron saw frame, one-piece construction
For miter cuts, the operator moves the saw frame - not the material
Hydraulic cylinder provides for infinitely variable support pressure and saw frame feed (HB 210 A / HB 250 A)
Vise with quick-action clamping feature
1 saw blade
coolant system
base
quick-action vise
hydraulic cylinder for saw frame
operator instructions
