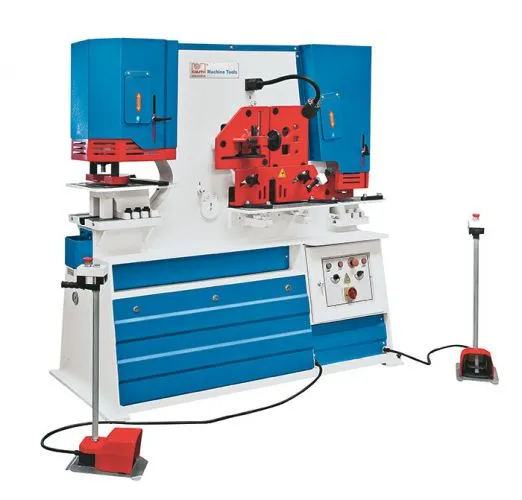

Equipped With
HPS 45 H
HPS 60 H
HPS 65 H
HPS 85 H
HPS 115 H
HPS 175 H
Working Area
Number of hydraulic cylinders
1 positions
1 positions
2 positions
2 positions
2 positions
2 positions
Punch press
Pressure force
49.5 t
66 t
71.5 t
93.5 t
126.5 t
192.5 t
Punch capacity (max.)
0.87x0.59 in
1.1x0.59 in
1.02x0.79 in
1.3x0.79 in
1.34x1.02 in
1.57x1.26 in
Diameter x thickness
1.5x0.3 in
1.5x0.4 in
2.2x0.4 in
2.2x0.5 in
2.2x0.6 in
2.2x0.9 in
Throat
7 in
9 in
12 in
14 in
16 in
25 in
Stroke
1.4 in
2 in
2.2 in
3.1 in
3.1 in
3.1 in
Stroke number (at 20 mm stroke)
20
25
25
25
25
22
Working height
37 in
37 in
40 in
42 in
42 in
44 in
Steel cutter
Cutting capacity flat (max. width)
11.8x0.5 in
11.8x0.6 in
14.8x0.6 in
18.9x0.6 in
23.6x0.6 in
23.6x0.8 in
Cutting capacity flat (max. thickness)
8x1 in
8x1 in
12x1 in
15x1 in
15x1 in
15x1 in
Knife length
13 in
13 in
15 in
19 in
24 in
24 in
Cutting capacity round
1 in
2 in
2 in
2 in
2 in
3 in
Cutting capacity square
1 in
1 in
2 in
2 in
2 in
2 in
Steel cutter working height
37 in
37 in
35 in
37 in
36 in
36 in
Profile cutter
Cutting capacity 90¡
3.9x3.9x0.4 in
4.7x4.7x0.5 in
5.1x5.1x0.5 in
5.9x5.9x0.6 in
6.3x6.3x0.6 in
7.9x7.9x0.8 in
Cutting capacity 45¡
2.4x0.2 in
2.8x0.3 in
2.8x0.3 in
3.1x0.3 in
3.1x0.3 in
3.1x0.3 in
Profile cutter working height
44.68 in
44.49 in
44.49 in
46.85 in
46.85 in
45.67 in
Notcher
Plate thickness (max.)
0.31 in
0.39 in
0.39 in
0.51 in
0.51 in
0.63 in
Width
1 in
2 in
2 in
2 in
2 in
3 in
Depth
4 in
Drive Capacity
Motor rating hydraulic pump
5.4 Hp
5.4 Hp
7.4 Hp
10.1 Hp
14.8 Hp
14.8 Hp
Measures and Weights
Overall dimensions (length x width x height)
53x31x58 in
58x31x63 in
67x31x70 in
74x31x75 in
81x31x80 in
111x43x88 in
Weight
2,640 lbs
3,080 lbs
3,740 lbs
4,950 lbs
6,930 lbs
12,650 lbs

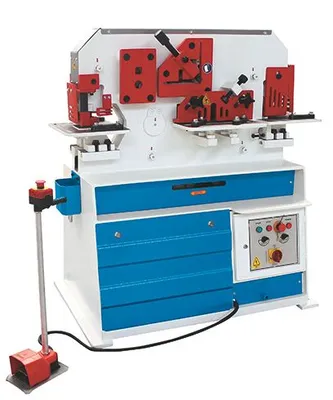

Flat Steel Cutters
For strip steel, flat steel, wide flat steel
Table with angular and linear stops
Adjustable hold-down
Lower knife provides 4 cutting edges

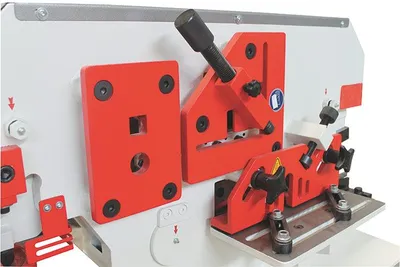

Angular Profile Steel Cutters
For angle steel sections
Cut angle 90¡ and 45¡
Adjustable material guide plate
Rod Steel Station
For round and square steel
Robust material guide plate
Back Gauge
Including swivel boom
For use on Flat Steel, Angular Steel and Rod Steel Stations
Hole Punch Station
For punching round holes and slots in sheet metals, flat steel and U-section steel
Table with adjustable angular stops
Infinitely variable stroke adjustment
Premium Kingsland tools
Hydraulic overload protection
Notching Station
Rigid support table with adjustable stops
Easy replaceable punch holder
stamps and dies
angle cutting blade
flat bar cutting blade
notching blade
solid bar cutting blade
Elecric backauge with automatic cutting (39 in)
foot pedal with emergency stop button
hook spanner wrench
work lamp
