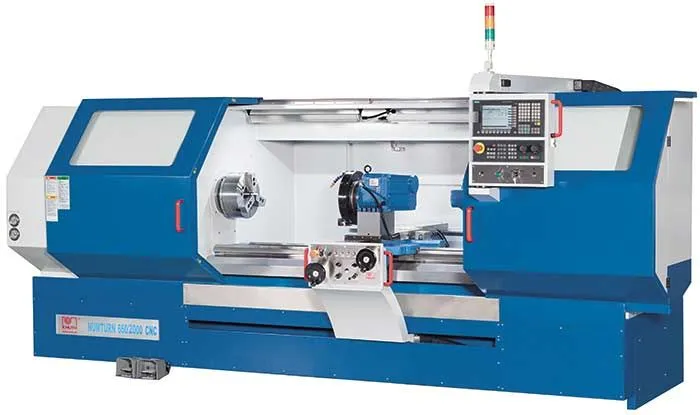

Equipped With
Numturn 500/1000 FA
Numturn 500/2000 FA
Numturn 660/1000 FA
Numturn 660/1500 FA
Numturn 660/2000 FA
Numturn 660/1500 SI
Numturn 660/1000 SI
Numturn 500/1000 CNC (SI)
Numturn 500/1500 SI
Numturn 500/2000 SI
Numturn 660/2000 SI
Working Area
Workpiece length (max.)
36 in
77 in
38 in
58 in
78 in
58 in
38 in
36 in
57 in
77 in
78 in
Turning-¯ over bed (max.)
20 in
20 in
26 in
26 in
26 in
26 in
26 in
20 in
20 in
20 in
26 in
Turning-¯ over support
12 in
12 in
18 in
18 in
18 in
18 in
18 in
12 in
12 in
12 in
18 in
Turning length (max.)
30 in
68 in
29 in
48 in
68 in
48 in
29 in
30 in
48 in
68 in
68 in
Details
Control
Fagor 8055i
Fagor 8055i
Fagor 8055i
Fagor 8055i
Fagor 8055i
Siemens 808D Advanced TTL
Siemens 808D Advanced TTL
Siemens 808D Advanced TTL
Siemens 808D Advanced TTL
Siemens 808D Advanced TTL
Siemens 808D Advanced TTL
Travels
Travel X-axis
10.2 in
10.2 in
13.8 in
13.8 in
13.8 in
13.8 in
13.8 in
10.2 in
10.2 in
10.2 in
13.8 in
Travel Z-axis
36 in
75 in
36 in
56 in
75 in
56 in
36 in
36 in
56 in
75 in
75 in
Headstock
Speed range
60 - 2,000 rpm
Spindle mount
A2-8
Lathe chuck diameter
10 in
10 in
12 in
12 in
12 in
12 in
12 in
10 in
10 in
10 in
12 in
Spindle capacity with draw tube
3 in
Rapid Feed
Rapid Feed X-axis
157.48 in/min
157.48 in/min
236.22 in/min
236.22 in/min
236.22 in/min
236.22 in/min
236.22 in/min
157.48 in/min
157.48 in/min
157.48 in/min
236.22 in/min
Rapid Feed Z-axis
314.96 in/min
Tool Head
Number of tool stations
8 positions
Accuracies
Positioning accuracy X-axis
± 0.0005 in
± 0.0002 in
± 0,0006 in
± 0.0005 in
± 0.0005 in
± 0.0005 in
± 0.0005 in
± 0,006 in
± 0,006 in
± 0.0005 in
± 0.0005 in
Positioning accuracy Z-axis
± 0.0006 in
± 0.0003 in
± 0,0008 in
± 0.0006 in
± 0.0006 in
± 0.0006 in
± 0.0006 in
± 0,008 in
± 0,008 in
± 0.0006 in
± 0.0006 in
Repeatability X-axis
± 0.0004 in
± 0.0004 in
± 0,0005 in
± 0.0004 in
± 0.0004 in
± 0.0004 in
± 0.0004 in
± 0,005 in
± 0,005 in
± 0.0004 in
± 0.0004 in
Repeatability Z axis
± 0.0006 in
± 0.0006 in
± 0,0008 in
± 0.0006 in
± 0.0006 in
± 0.0006 in
± 0.0006 in
± 0,008 in
± 0,008 in
± 0.0006 in
± 0.0006 in
Tailstock
Tailstock taper
MT 5
Tailstock quill diameter
3 in
Tailstock quill stroke
6 in
Drive Capacity
Motor rating main drive
20.1 Hp
24.8 Hp
24.8 Hp
24.8 Hp
24.8 Hp
24.8 Hp
24.8 Hp
20.1 Hp
20.1 Hp
24.8 Hp
24.8 Hp
Main drive, continuous load
14.75 Hp
20.11 Hp
20.11 Hp
20.11 Hp
20.11 Hp
20.11 Hp
20.11 Hp
14.75 Hp
14.75 Hp
20.11 Hp
20.11 Hp
Torque of drive X
89 ft.lb.
Torque of drive Z
133 ft.lb.
Motor rating coolant pump
0.2 Hp
Measures and Weights
Overall dimensions (length x width x height)
123x70x73 in
163x69x73 in
123x78x73 in
143x78x73 in
163x78x73 in
143x78x73 in
123x78x73 in
123x70x73 in
144x70x73 in
163x69x73 in
163x78x73 in
Weight
6,600 lbs
7,920 lbs
7,040 lbs
7,920 lbs
8,800 lbs
7,920 lbs
7,040 lbs
6,600 lbs
7,260 lbs
7,920 lbs
8,800 lbs

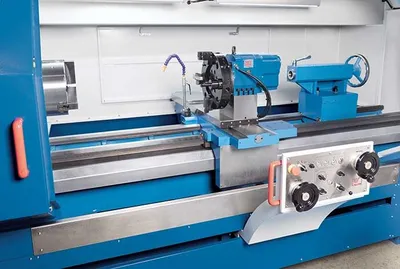

Heavy ribbing of the machine frame and wide hardened V-guides for heavy-duty machining
Headstock and main spindle are designed for constant precision and optimum
temperature balance
High-quality spindle bearings ensure error-free continuous operation
The heavy-duty tailstock is easy to handle and features high clamping force
The automatic 8-station VDI tool turret is part of the standard package and ensures maximum flexibility and productivity
Hydraulic chuck with adjustable holding force included in standard equipment

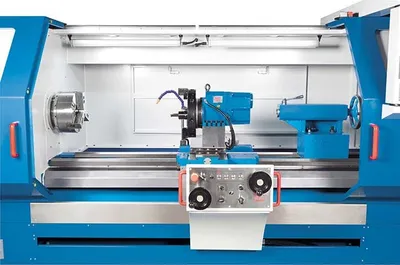

The machine housing can be completely closed and is easily accessible through a wide opening sliding door
The machine housing can be completely closed and is easily accessible through a wide opening sliding door
Smart central lubrication system for low-maintenance operation
SINUMERIK 808D ADVANCE -- the perfect solution for modern standard machines
In combination with a new generation of spindle and axis drives, the SINUMERIK 808D ADVANCE with 8.4" LCD provides an innovative ready-to-use digital CNC solution for modern standard machines
This is topped by a guaranteed superior price/performance ratio
CNC and drive communicate via a high-speed bus to ensure efficient positioning control plus high precision and optimum cutting performance
This globally leading CNC technology provides high performance and power for the control of standard lathes
Advantages - Digital solution provides higher precision:
Increased overload capacity supports a faster acceleration and deceleration of machine tools
Constant cutting speeds result in an increased surface quality of the workpiece
Increased ruggedness:
The SINAMICS features a wide voltage range to prevent machine shut-downs during poor voltage supply conditions. This will significantly reduce machine down-times.
During heavy machining operations, an automatic spindle torque adjustment will help protect machining tools and spindle systems.
Increased operator comfort:
A fast Ethernet connection facilitates easy start-up and diagnostics of machine tools and simplifies NC program use
hydr. tailstock
Siemens 808D Advanced TTL control
2 electronic hand-wheels
8-station VDI tool turret
hydr. 3-jaw chuck ¯ 11.81"
automatic central lubrication
work lamp
operating tools
operating manual and programming instructions
