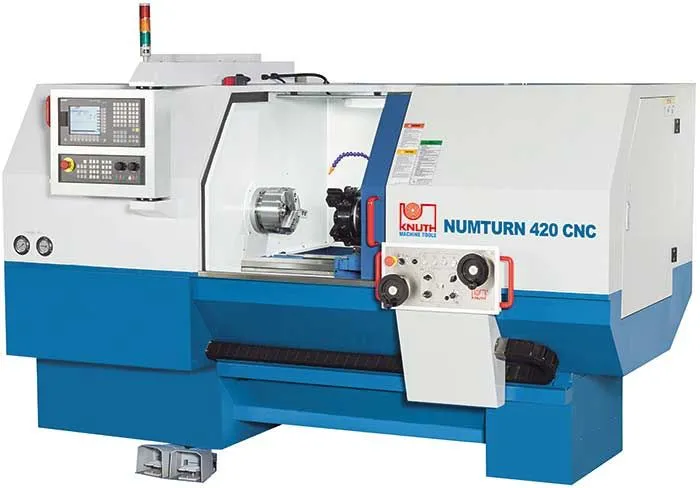

NEW KNUTH NUMTURN CNC 420 • ECO

Equipped With

Numturn 420 SI
Numturn 420 SI Eco
Working Area
Workpiece length (max.)
39 in
Turning diameter over bed
17 in
Turning-¯ over support
9 in
Turning length (max.)
36 in
Travels
Travel X-axis
8.7 in
Travel Z-axis
36 in
Headstock
Spindle speed
60 - 3,000 rpm
Spindle mount
A2-6
Spindle bore
2 in
Spindle bore with draw tube
1.9 in
Rapid Feed
Rapid Feed X-axis
157.48 in/min
Rapid Feed Z-axis
314.96 in/min

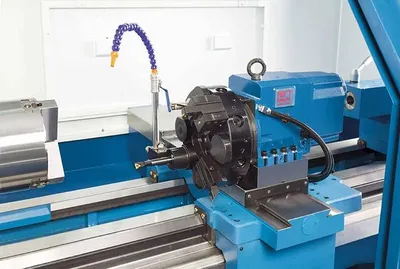

Tool Head
Number of tool stations
8 positions
1 positions
Accuracies
Positioning accuracy X-axis
0.00024 in
Positioning accuracy Z-axis
0.00031 in
Repeatability X-axis
0.0002 in
Repeatability Z-axis
0.00031 in
Tailstock
Tailstock taper
MT 4
Tailstock quill diameter
2 in
Tailstock quill stroke
4 in
Drive Capacity
Motor rating main drive
10.1 Hp
Motor rating coolant pump
0.2 Hp
Motor rating X-axis
2 Hp
Motor rating Z-axis
2.01 Hp
Motor rating X / Z axis
1,5 Hp
Measures and Weights
Overall dimensions (length x width x height)
113x63x69 in
Weight
6,050 lbs

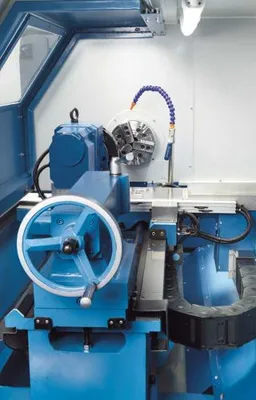

Manually transverse the X and Z axis via 2 electronic hand wheels
User-oriented cycle interface for easy parts programming - turning cycles with many programming options to create a complete parts program
USB port for easy data transfers
Induction-hardened, ground guide ways
Longitudinal and transverse movements via high-quality preloaded ball screws and servo drives
Smart central lubrication system for low-maintenance operation
SINUMERIK 808D ADVANCE -- the perfect solution for modern standard machines
In combination with a new generation of spindle and axis drives, the SINUMERIK 808D ADVANCE with 8.4" LCD provides an innovative ready-to-use digital CNC solution for modern standard machines
This is topped by a guaranteed superior price/performance ratio
CNC and drive communicate via a high-speed bus to ensure efficient positioning control plus high precision and optimum cutting performance
This globally leading CNC technology provides high performance and power for the control of standard lathes
Advantages - Digital solution provides higher precision:
Increased overload capacity supports a faster acceleration and deceleration of machine tools
Constant cutting speeds result in an increased surface quality of the workpiece
Increased ruggedness:
The SINAMICS features a wide voltage range to prevent machine shut-downs during poor voltage supply conditions. This will significantly reduce machine down-times.
During heavy machining operations, an automatic spindle torque adjustment will help protect machining tools and spindle systems.
Increased operator comfort:
A fast Ethernet connection facilitates easy start-up and diagnostics of machine tools and simplifies NC program use
siemens 808D Advanced TTL control
2 electronic hand-wheels
3-jaw hand chuck ¯ 7.9 inch
quick change tool holder WBD 25120
automatic central lubrication
work lamp
operating tools
operating manual and programming instructions
hydr. tailstock
