NEW KNUTH HB B/BS

Equipped With

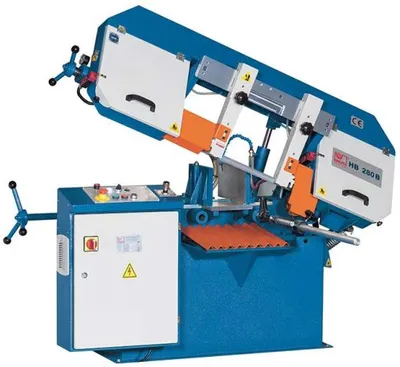

HB 280 B
HB 320 BS
Cutting Capacities
Cutting capacity 90¡ round
11 in
13 in
Cutting capacity 90¡ - square
11 in
13 in
Cutting capacity 90¡ - flat
14x8 in
24x13 in
Cutting capacity 45¡ - round
9 in
13 in
Cutting capacity 45¡ - square
8 in
13 in
Cutting capacity 45¡ - flat
9x7 in
14x13 in
Cutting speed infinitely variable
65 - 327 fpm
Cutting capacity 30¡ - round
10 in
Cutting capacity 30¡ - square
9 in
Cutting capacity 30¡ - flat
11 x 8 in
Drive Capacity
Motor rating main drive
2 Hp
3 Hp
Motor rating coolant pump
0.2 Hp
Measures and Weights
Blade dimensions
133.86x1.06x0.04 in
163.78x1.34x0.04 in
Overall dimensions (length x width x height)
71x34x40 in
83x48x53 in
Weight
1,166 lbs
2,200 lbs
Infinitely variable hydraulic saw advance ensures optimum cutting results and minimized tool wear
Automatic shut-off upon completion of saw process
Band break sensor activates automatic shut-off upon band break
Helical gears, designed for continuous operation with above average life time and low maintenance
Infinitely variable cutting speed from 65 to 330 feet/min
Coolant system
Rigid guide arms

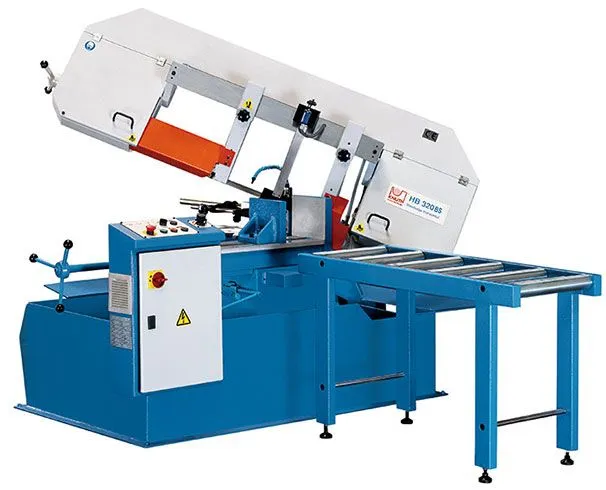

HB 320 BS highlights
Saw frame swivels allowing universal angle setting - no need to rotate the work piece!
Including feed roller table, 47" long
automatic lifting of the bandsaw with switching device for variable workpiece sizes

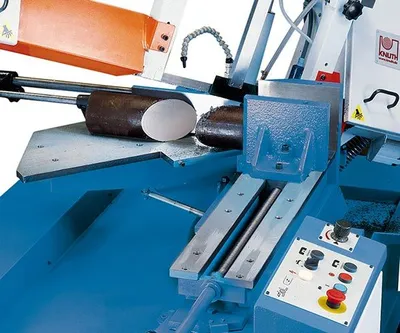

part clamping
coolant system
linear stop
feed roller table 47"
roller table
operator manual
