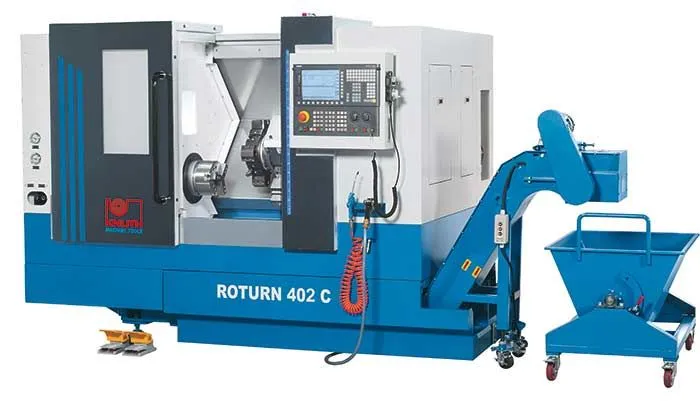

NEW KNUTH ROTURN 402 C

Equipped With
Working Area
Workpiece length (max.)
17 in
Center height
8 in
Turning diameter over bed
16 in
Turning diameter over support
10 in
Travels
Travel X-axis
7.9 in
Travel Z-axis
18 in
Headstock
Lathe chuck diameter
10 in
Speed range
50 - 2,000 rpm
Spindle mount
A2-8
Spindle bore
3 in
Spindle bore with draw tube
3 in
Rapid Feed
Rapid Feed X-axis
629.92 in/min
Rapid Feed Z-axis
787.4 in/min
Tool Head
Number of tool stations
8 positions
Tool shank dimensions
1x1 in
Boring bar mount diameter
1.6 in
Tailstock
Tailstock taper
MT 5
Tailstock quill diameter
3 in
Tailstock quill stroke
3 in
Drive Capacity
Main motor rating
15 / 11 Hp
Motor rating coolant pump
0.2 Hp
Measures and Weights
Overall dimensions (length x width x height)
150x74x76 in
Weight
7,480 lbs
Part No.
180628
Heavy machine frame with inclined bed ensuring high rigidity and easy chip removal
Precise linear guides in X and Z for high stability and accuracy even at highest loads

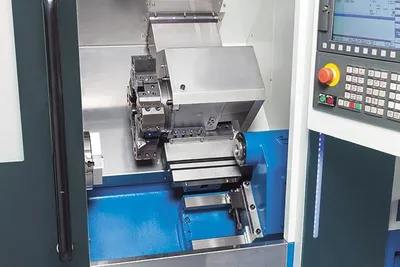

The enclosed work space is easily accessible through a large sliding door
Future-proof: the Siemens 828 D Basic control meets all requirements for advanced control technology
The 8-station tool turret ensures a large work area and quick and precise tool changes
A powerful 20 HP headstock motor delivers high torque across the entire speed range
Hydraulic 8 in 3-jaw chuck with through-hole
Tailstock with hydraulically operated quill with a maximum stroke of 3 in
Automatic central lubrication system ensures reliable lubrication of guideways
Hinged belt conveyor and high-performance coolant system included in standard equipment
Proven record:
Easy, dialog-guided user interface
Complete bandwidth of technology cycles
High performance and precision
Siemens 828 D Basic control
Hydraulic 3-jaw lathe chuck, ¯ 8 inch with bore
hydr. tailstock
automatic central lubrication
Chain-type chip conveyor
Heat exchanger for electric control cabinet
enclosed work space
LED work lamp
coolant system
compressed air gun
coolant gun
operating tools
operator manual
