Equipped With

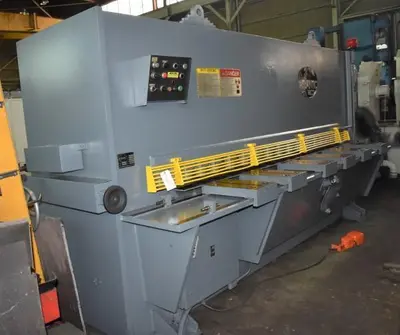

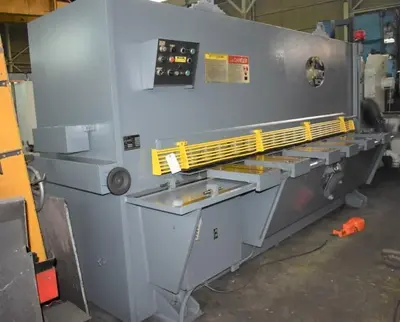

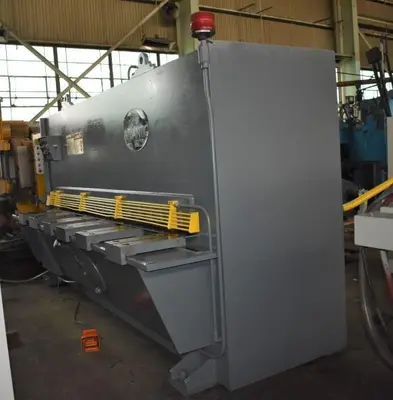

10' x 1/2" ATLANTIC HDS HYDRUALIC POWER SQUARING SHEAR
EQUIPPED WITH:
39" Front Operated Power Back Gauge
6' Squaring Arm - (2) Front Supports
No Pit Required
CATALOG SPECIFICATIONS:
Shearing Capacity, Mild Steel
10' x 1/2"
Shearing Capacity, Stainless
10' x 5/16"
Cutting Length, Maximum
122"
Angle Adjustment, Range
1 to 3-DEGREES
Motor Horsepower
40 HP
Electrical System
220-440/3/60
Overall Dimensions, L x D
158" x 84"
Overall Height
90"
Weight, Approximately
20500 LBS
