USED 2004 OKAMOTO ACC GRIND-X12.24 DXNC

Equipped With

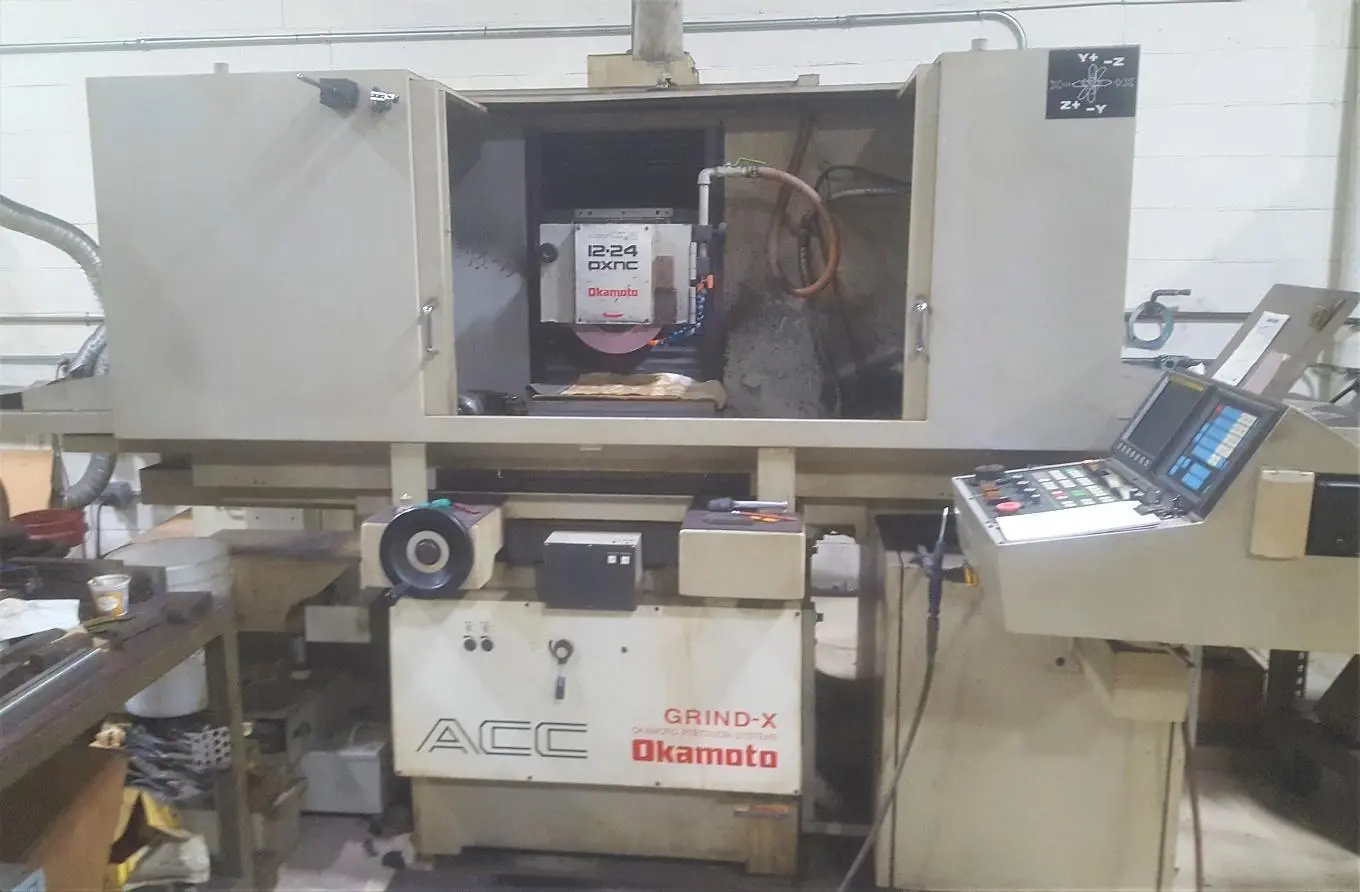

12" x 24" OKAMOTO MODEL ACC GRIND-X 12.24 DXNC CNC SURFACE GRINDER
New 2004
Parts and Service Available

  Table working capacity:                 12" X 24"
  Max Dist. Under 12" Wheel to Table:     13.6"
  Table Load Capacity:                    925 Lbs.
  T-Slots:                                .67" X 3"
  X-Axis Longitudinal Feed:               30"
  Max Surface Speed:                      6500 SFPM
  Table Feed Rate:                        3-82 Feet Per Minute
  Z-Axis Crossfeed:                       13.3"
  Intermittent Traverse Feed:             .02-.80
  Y-Axis Vertical Feed:                   .001-40 IPM
  Grinding Wheel:                         14" X 2" X 5"
  Grinding Wheel Speed:                   500-1800 RPM
  Grinding Wheel Motor:                   7.5 HP
  Power Supply:                           230/460, 3ph, 60 Hz


  Equipped with:

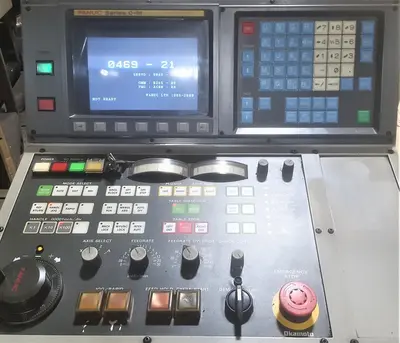

  Fanuc Series 0-M CNC Control
  Rotary Dresser
  Wheel Balancer with 6 new and 12 used wheels (with mounting flanges)
  Angles for grinding at 45 Degrees
