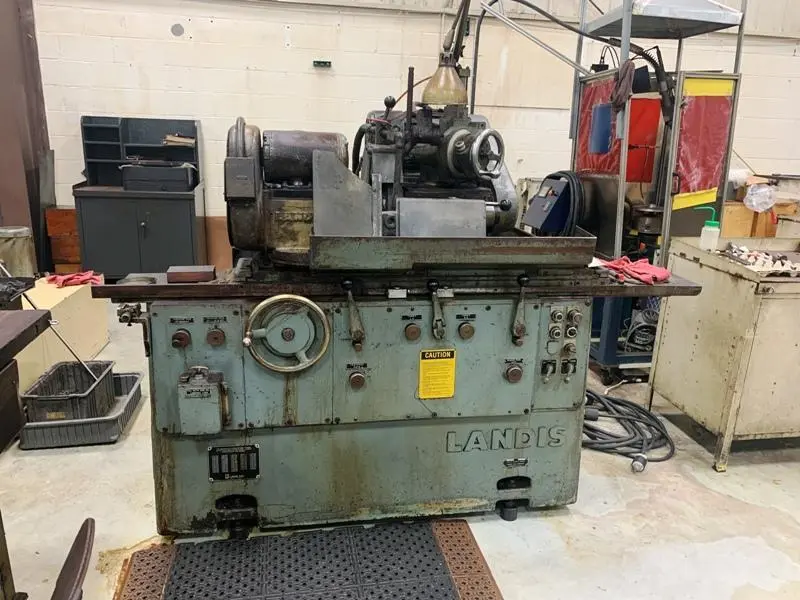

10" x 20" LANDIS MODEL 1R UNIVERSAL CYLINDRICAL GRINDER

Equipped With
10" x 20" LANDIS MODEL 1R UNIVERSAL CYLINDRICAL GRINDER
New 1980
SPECIFICATIONS:
 Nominal swing over table  ..................... 10"
 Max. swing over table ......................... 10-7/8"
 Distance between centers ...................... 20"
 Hydraulic table traverse ...................... 2" TO 240" IPM
 Traverse per turn of handwheel ................ 0.200"
 Traverse handwheel graduations ................ 0.001"
 Swivel table gradauted ........................ 20 deg,, 4" per foot Wheelhead :
  Wheelehead swivels left & right of center..... 90 DEG.
  Max wheel size ............................... 12" x 3"
  Max. hydraulic infeed - on diameter .......... 0.090"
  Rapid infeed stroke .......................... 1"
  Min. feed graduations - on diameter .......... 0.000050"
  Work diam. reduction per rev of handwheel .... 0.100"
  Work diam. per rev. of fine feed knob ........ 0.001"
  Wheelhead motor .............................. 5 HP
 Workhead:
  Workhead swivels toward wheelhead ............ 90 deg.
  Workhead swivels away from wheelhead ......... 30 deg.
  Workehead spindle speeds (6) ................. 60 TO 600 RPM
  Workehad spindle nose ........................ A2-5"
  Workhead motor ............................... 1/4 HP
 Approximate weight ............................ 4,150 LBS
 Approximate dimensions ........................ 8'L X 4'W X 6'6"HT

 EQUIPPED WITH:
 Universal workhead and universal wheelhead
 Hydraulic table traverse
 Auto infeed @ table reversals
 Auto plunge feed
 Power rapid wheelhead advance & retraction
 Sparkout timer
 Hard film microsphere spindle bearings
 Coolant system with pump
