Equipped With

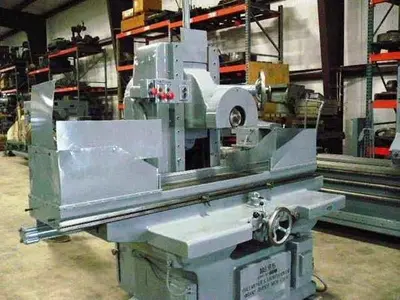

12" X 58" GRAND RAPIDS MODEL A HORIZONTAL SURFACE GRINDER
New 1975
Specifications:
Table-L
58"
Table-W
12"
Grinding Wheel Dia.
12"
Power
15 hp
Table Size 12" X 58"
Magnetic Chuck Size 12" X 43"
Longitudinal 58"
Cross Travel 14"
Vertical Working Height 14"
Standard Size Grinding Wheel Low Speed 20" X12"X3"
Grinding Wheel Speeds High 1170
Main Motor 15 Hp. 220 / 440
Height 8'5"
Approximate Weight 14,500 Lbs.
Incremental Down Feed Yes
Electromatic Neutrofier For Chuck Yes
Rapid Traverse Up & Down Yes
