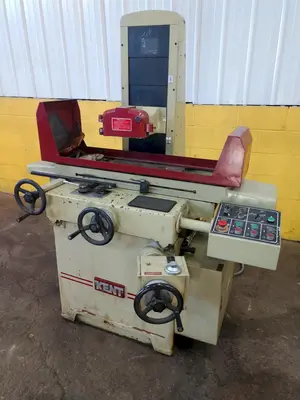

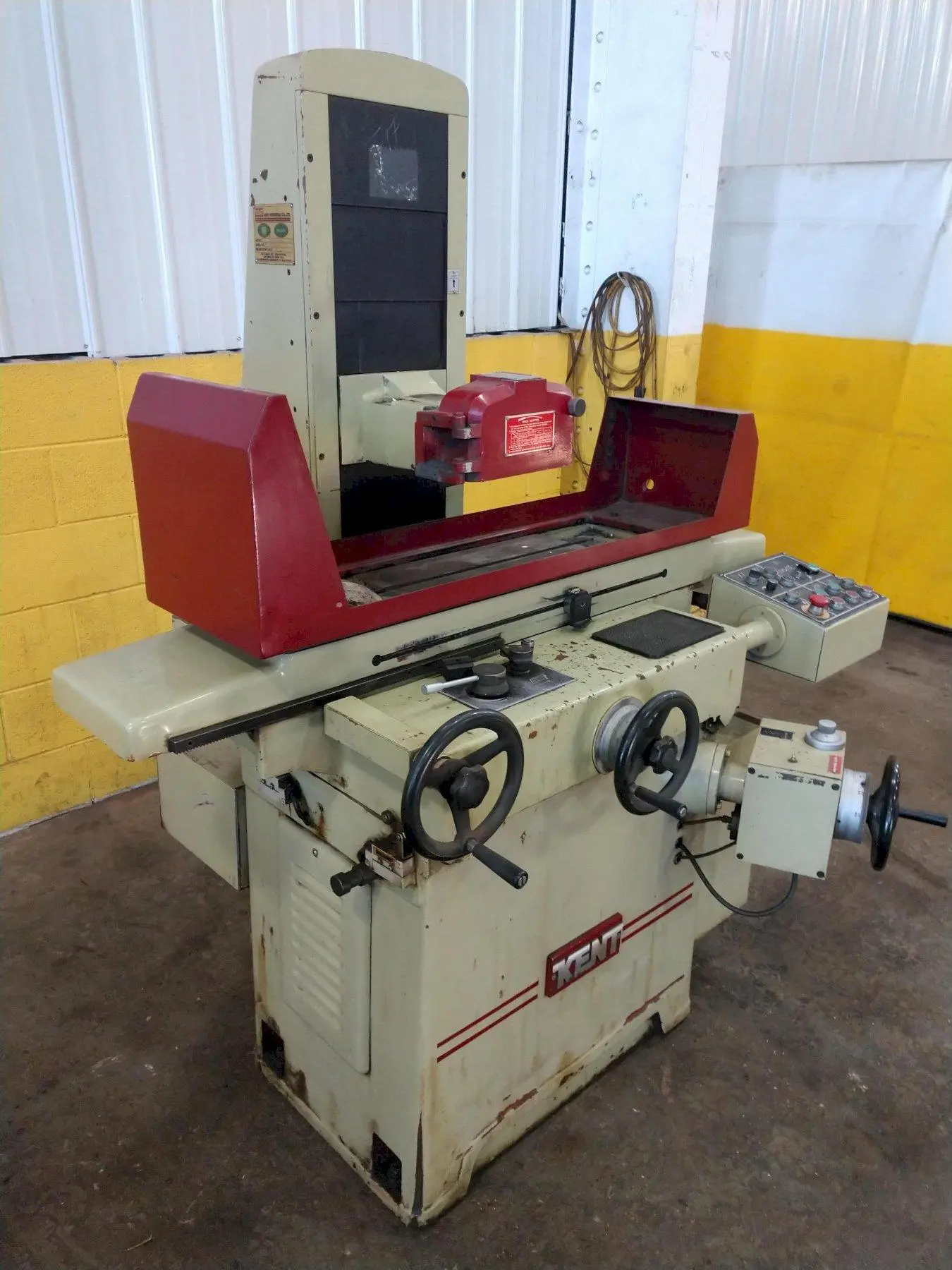

USED 1989 KENT KSG-818AHD

Equipped With
8" X 18" KENT #KSG-818AHD AUTOMATIC HYDRAULIC SURFACE GRINDER
SERIAL NO. 89060304  NEW 1989
Specifications:
 TABLE WORKING SURFACE ................ 8" X 18"

MAXIMUM TABLE TRAVEL ................. 19" X 10"

TABLE TO SPINDLE CENTER, MAXIMUM ..... 19"

LONGITUDINAL HYDRAULIC FEED RATES .... 16 TO 75 FPM

CROSS POWER FEED ..................... .004" TO .3" PER STROKE

RAPID CROSS FEED ..................... 35 IPM

AUTOMATIC DOWNFEED INCREMENT ......... .0001" TO .001"

HAND FEED PER REVOLUTION/GRADUATION .. .2"/.001"

SPINDLE MOTOR ........................ 1.5 HP 220/440/3/60

HYDRAULIC PUMP ....................... 1 HP 220/440/3/60

GRINDING WHEEL ( STANDARD WHEEL ) .... 7" X 1/2" X 1.25"



INCREMENTAL DOWN FEED ................ POWER
LONGITUDINAL & CROSS FEEDS ........... POWER

COOLANT SYSTEM ....................... YES

ONE SHOT LUBRICATION ................. YES

SPLASH GUARDS ........................ YES

HYDRAULIC UNIT ....................... YES
