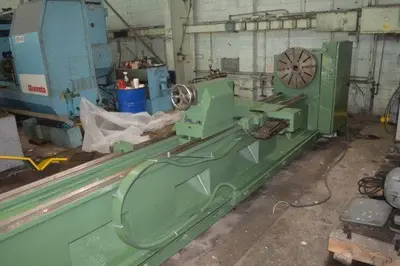

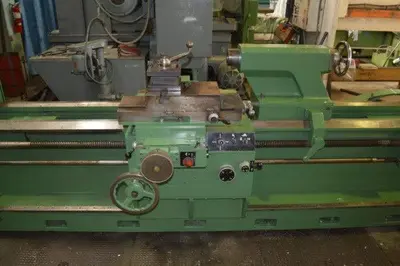

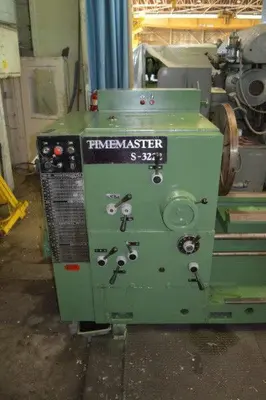

32"/45" X 160" TIMEMASTER MODEL S3222 "HEAVY-DUTY" GAP-TYPE ENGINE LATHE

Equipped With
32"/45" X 160" TIMEMASTER MODEL S3222 "HEAVY-DUTY" GAP-TYPE ENGINE LATHE
EQUIPPED WITH:
Taper Attachment
Threading (Inch-Metric) - Threading Dial
25" Faceplate
Hardened & Ground Bed & Cross-Slide Ways
Power Rapid Traverse

CATALOGUE SPECIFICATIONS:
Hole Thru Spindle
5"
Swing Over Bed Ways, Rated
32"
Swing thru Gap
44.78"
Swing Over Cross-Slide
22"
Distance Between Centers
160"
Gap Length
18"
Compound-Rest Travel
12"
Cross-Slide Travel
22"
Tailstock, Quill Diameter
4.75"
Tailstock, Quill Travel
16.5"
Tailstock, Spindle Taper
#6 MT
(24) Spindle Speeds, Range
11 to 800 RPM
(264) Carriage Longitudinal Feeds
.0015 to .205 IPR
(264) Cross Feeds, Range
.0008 to .102 IPR
(66) Thread Changes, Range
27/32 to 52 TPI
(66) Metric Threads, Range
1 to 52 MM
(66) Modular Threads, Range
.25 to 13
(66) Diametral Pitch, Range
3-3/8 to 208
Main Motor, Horsepower
25 HP
Weight, Approximately
16800 LBS
