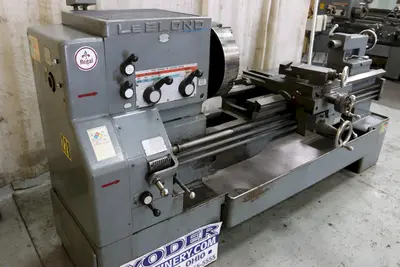

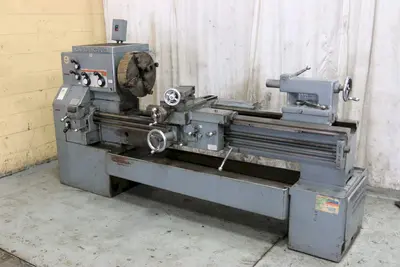

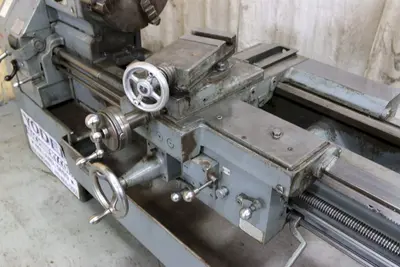

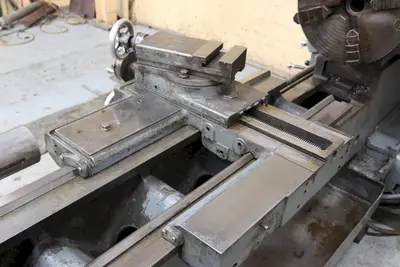

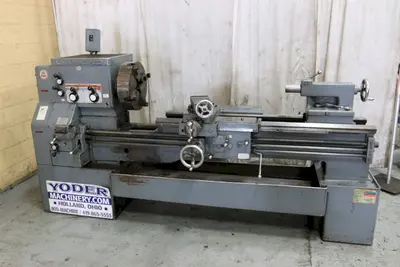

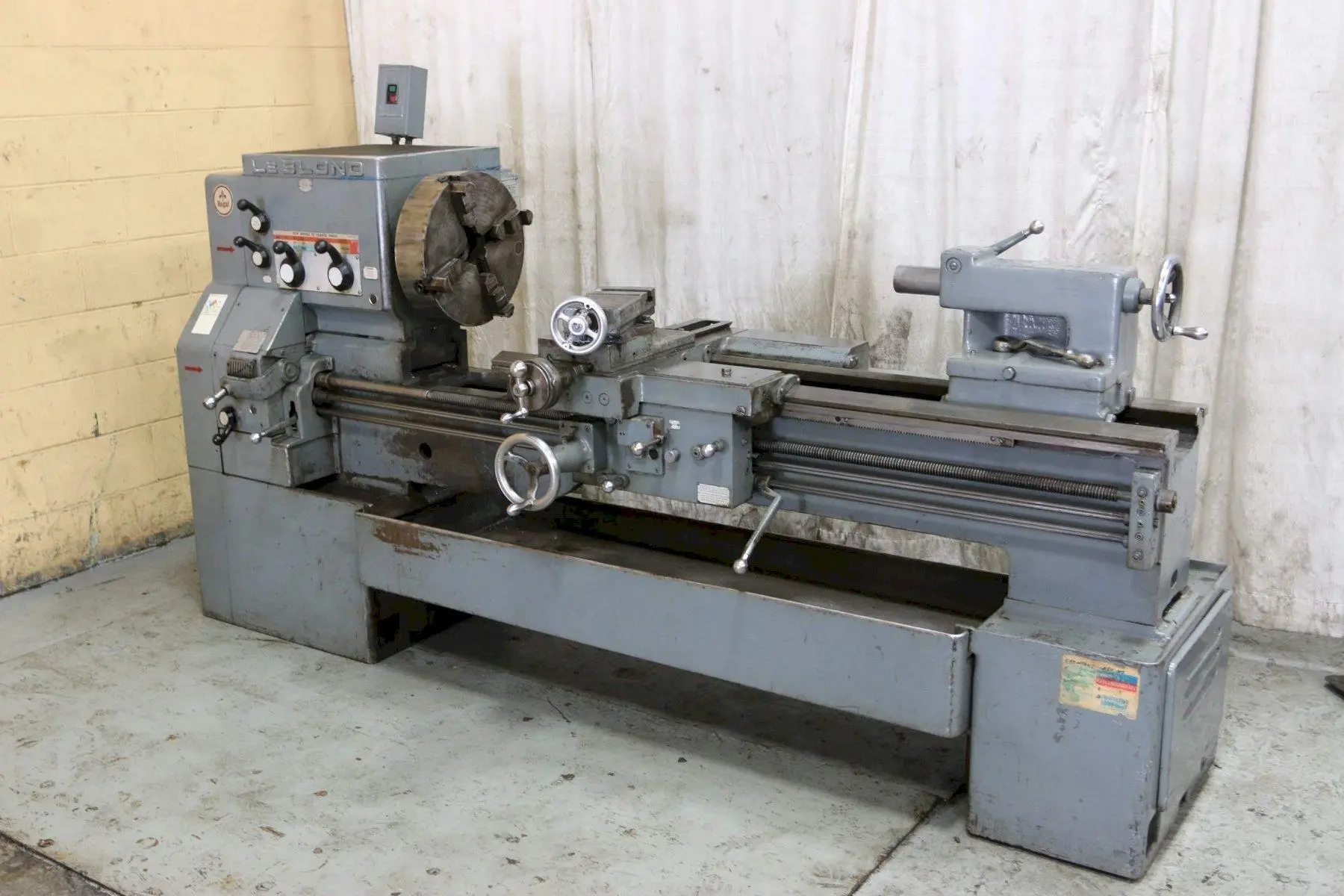

19"/28" X 60" LEBLOND GAP BED ENGINE LATHE

Equipped With
19"/28" X 60" LEBLOND GAP BED ENGINE LATHE
SWING OVER WAYS ..................... 19"
SWING OVER CROSS SLIDE .............. 12.5"
DISTANCE BETWEEN CENTERS ............ 60"
SPINDLE SPEEDS ...................... (12) 25 TO 1000 RPM
FEEDS ............................... .0023 TO .132" IPM
THREADS ............................. 2 TO 112 TPI
DIAMETER OF SPINDLE HOLE ............ 1-3/4"
SPINDLE FORWARD & REVERSE ........... YES
THREAD DIAL ......................... YES
COOLANT ............................. YES
MOTOR ............................... 7-1/2 HP
