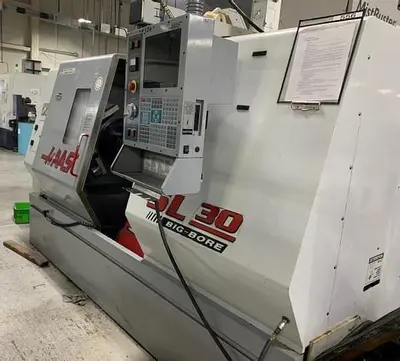

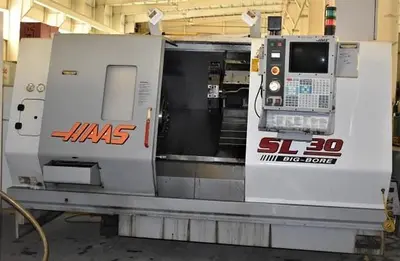

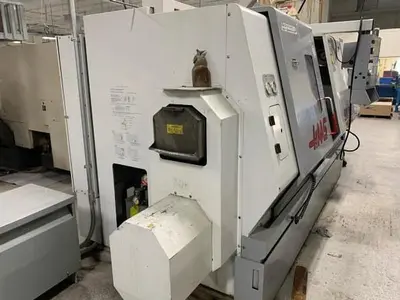

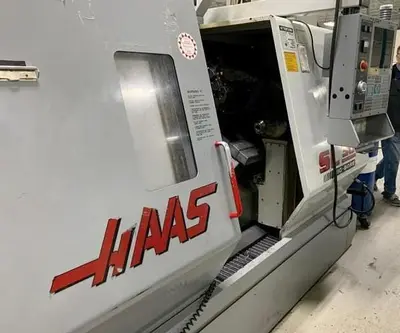

USED 2001 HAAS SL30 TB BIG BORE

Equipped With
SL30TB HAAS "BIG-BORE" CNC TURNING CENTER
New 2001
EQUIPPED WITH:
HAAS CNC CONTROL
4" BIG BORE DRIVE SYSTEM
COLLET CHUCK - 12-POSITION TURRET
PROGRAMMABLE HYDRAULIC TAILSTOCK
COOLANT SYSTEM & CHIP CONVEYOR
TOOL PRESETTER









Round bar stock diameter capacity, minimum
0.236" 6MM
Round bar stock diameter capacity, maximum
3.15" 80MM
Bar capacity length, range
13.78" TO 63"
X or z-axis retract travel
23.6" 600MM
Weight capacity, bar stock
147LB 67KG
Weight capacity, loading table
1100LB 500KG
Feed rates, maximum
4000 IPM
Push force/torque
167 NM
Weight approximately
814LB 370KG
SPECIFICATIONS:
Spindle bore
4"
Bar capacity, maximum
4"
Swing over apron, maximum
30"
Swing over cross slide
14.5"
Maximum cutting diameter
16"
Between centers
39"
Maximum cutting length
34"
Spindle nose
A2-8
X-axis cross slide travel
11.3"
Z-axis carriage travel
34"
X-axis rapid traverse
710 IPM
Z-axis rapid traverse
710 IPM
Spindle speeds, range
TO 2400 RPM
Spindle motor, horsepower
40 HP
Overall dimensions, l x w
162" X 77"
Overall height
74"
Weight approximately
16,000 LBS
