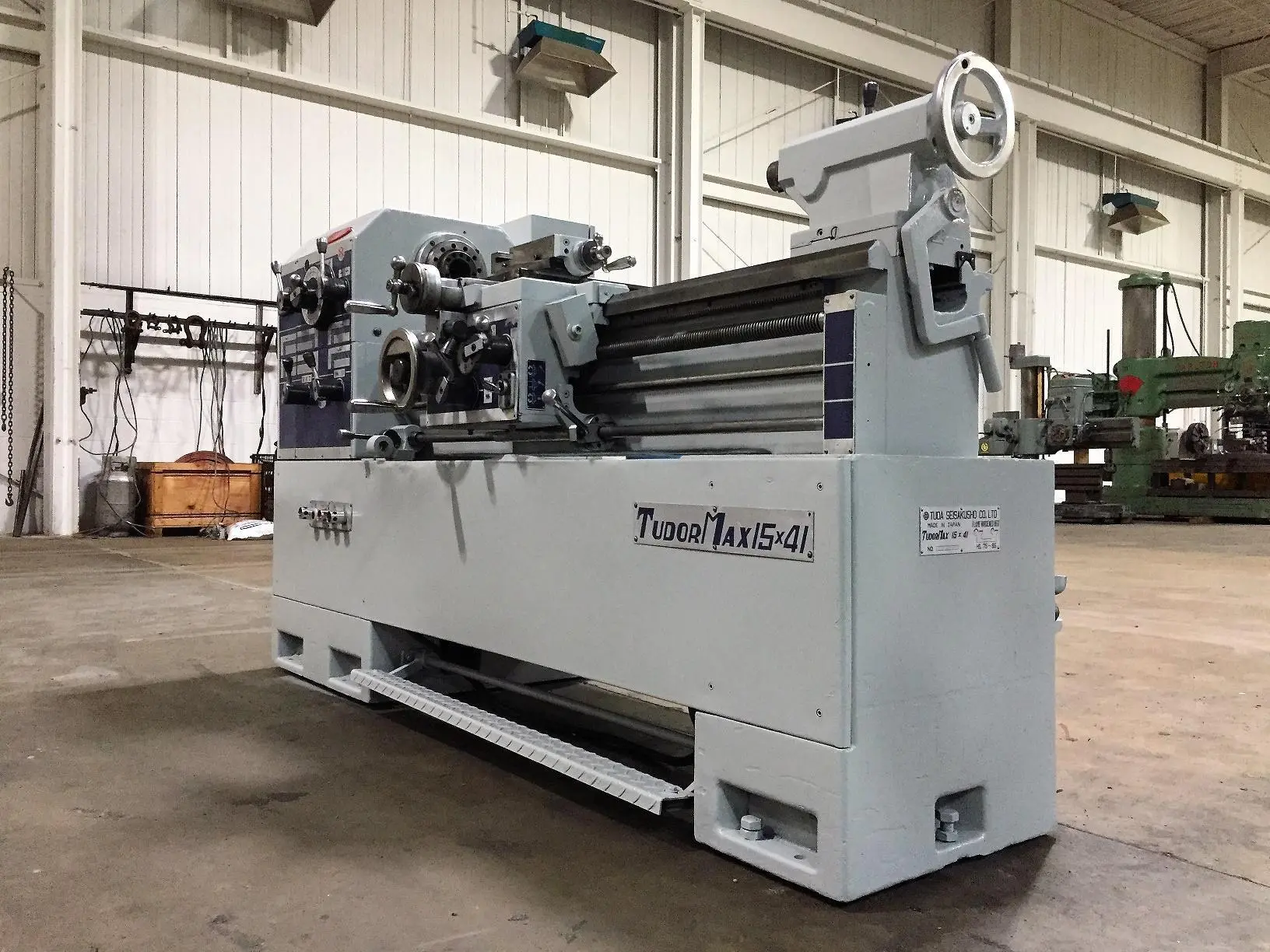

USED 1983 TUDA 15X41

Equipped With
15" x 40" TUDA MODEL TUDORMAX 15X41 ENGINE LATHE
New 1983
Swing Over Bed:                         15"
  Swing Over Cross Slide:                 8.5"
  Distance Between Centers :              40"
  Spindle Nose:                           D1-6
  Spindle Speed:                          40-1,500 RPM (16) Speed Range
  Spindle Bore:                           2.25"
  Spindle Motor:                          5 HP
  Tailstock Spindle Taper:                #4 MT
  Floor Space Required:                   89"x41"
  Machine Height:                         47"
  Machine Weight:                         3,490 lbs
  Current Electrical Arrangement:         460/3/60


  Equipped with:

  Inch Metric Threading
  Quick Change Tool Post
  10" 3 Jaw Chuck
  Drill Chuck
  Tailstock
  Dial Thread Chasing Attachment
