USED 1985 HANCHETT VS122 HYD

Equipped With

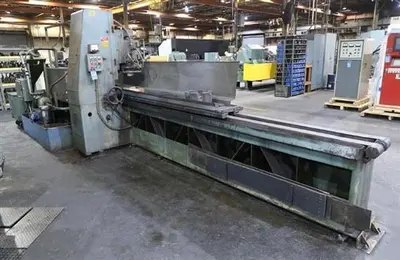

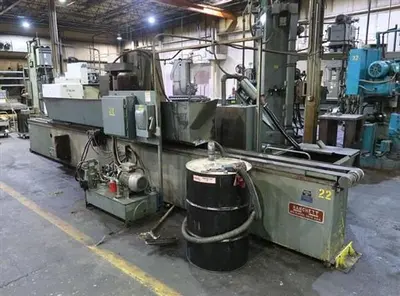

12" X 120" HANCHETT VS122 HYD HYDRAULIC-FEED VERTICAL-SPINDLE KNIFE/SURFACE GRINDER
New 1985
EQUIPPED WITH:

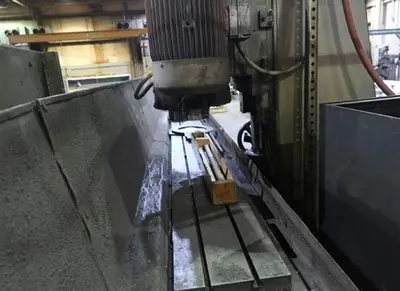

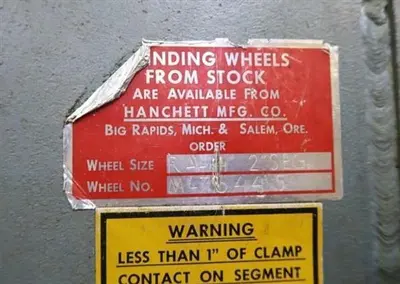

14" DIAMETER QUICK-CHANGE SEGMENTED GRINDING WHEEL
INCREMENTAL POWER DOWN FEED

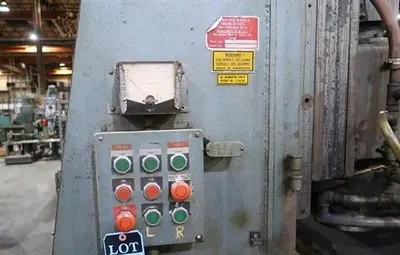

AMMETER CHECK FOR MOTORIZED SPINDLE LOADS
REAR OPERATORS STATION

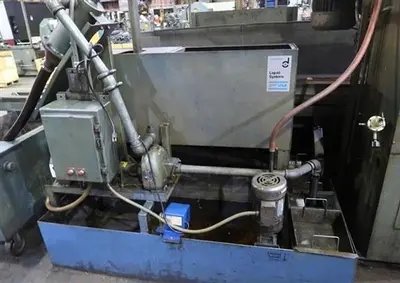

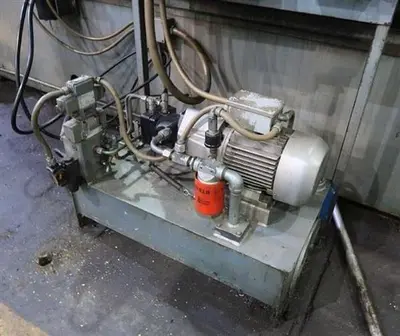

FAUVER HYDROSTATIC HYDRAULIC DRIVE UNIT (18 GALLON)

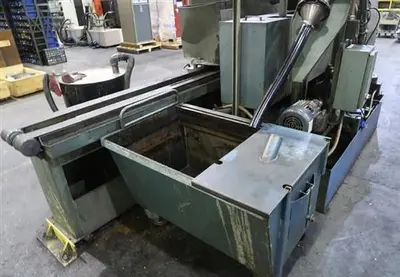

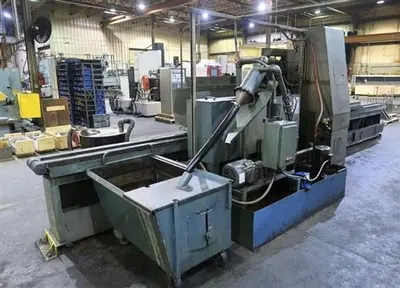

EXTRA RACK & SCRAP BIN ON CASTER
Table working surface, w x l
12" X 124"
Table overall dimensions
12" X 141"
Grinding width capacity, maximum
12"
Height under grinding wheel
12"
Table longitudinal stroke, length
131.5"
Grinding wheel diameter, maximum
14"
Number of grinding wheel segments
6
Table longitudinal feeds, range
15 TO 75 FPM
Spindle vertical feeds, range
.002 TO .0025 IPR

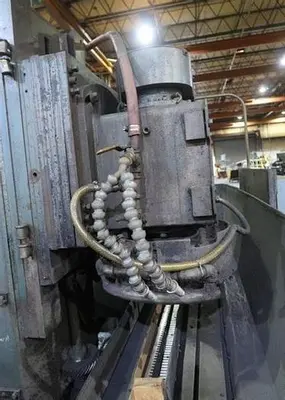

Grinding wheel spindle motor
15 HP
Overall dimensions, l x w
287" X 70"
Overall height
85"
