Equipped With

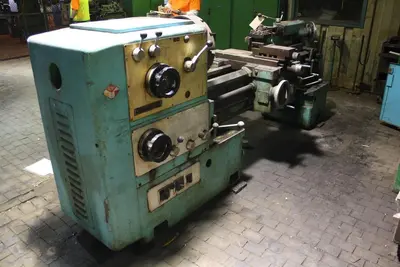

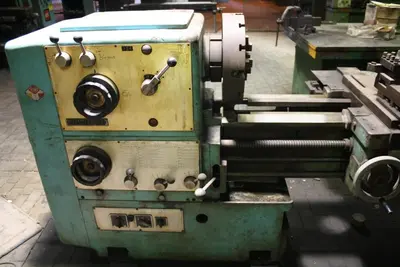

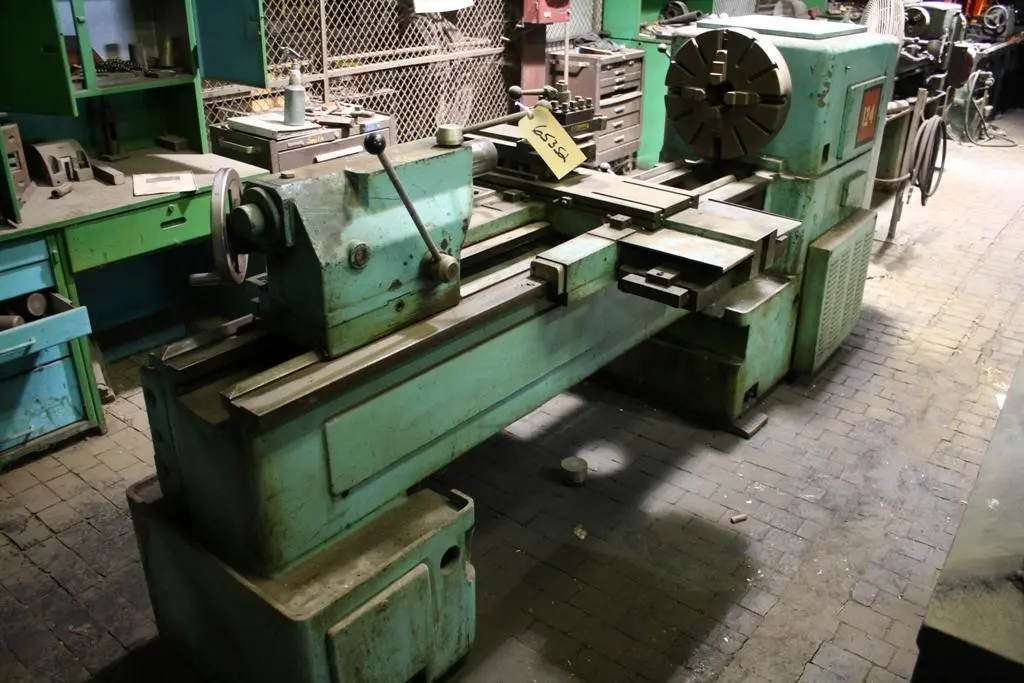

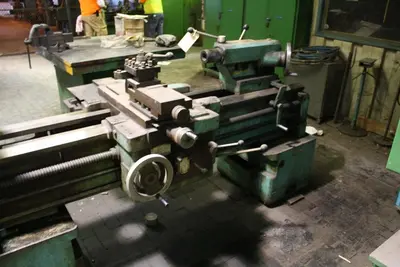

21" X 60" SUMMIT ENGINE LATHE
MODEL ......................... 21
SWING OVER WAYS ............... 21"
SWING OVER CROSS SLIDE ........ 13"
SWING IN GAP .................. 28"
LENGTH OF GAP ................. 16"
DISTANCE BETWEEN CENTERS ...... 60"
SPINDLE SPEEDS ................ 15 TO 1600 RPM
SPINDLE HOLE .................. 3"

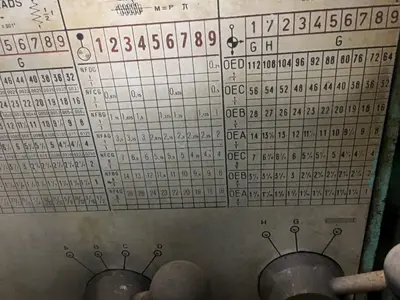

ENGLISH THREADS ............... 1/2 TO 56 TPI
METRIC THREADS ................ 1/2 TO 28
4 JAW CHUCK ................... 18"
STEADY REST ................... 9-1/2"
TAPER ATTACHMENT .............. YES
THREAD DIAL ................... YES
HARD WAYS ..................... YES
MOTOR ......................... 5 HORSEPOWER
