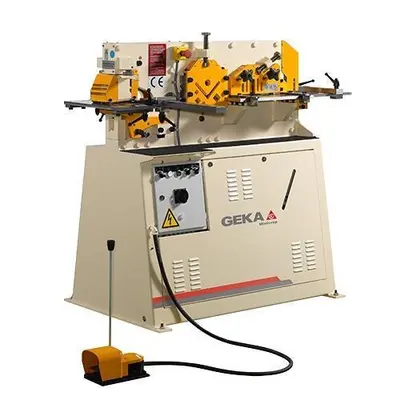

NEW GEKA MINICROP SINGLE CYLINDER HYDRAULIC IRONWORKER
he Geka Minicrop metal working machine is one of three Geka hydraulic ironworker models featuring a single cylinder. It includes all the same features as the Microcrop model.
Additionally, the Minicrop metal working machine also includes a wide range of openings for cutting round and square bars and a gooseneck die-holder for punching profiles and legs and webs. The Geka Minicrop, for sale at any of our distributors and dealers, may also be fitted with a wide range of tools and accessories for notching and punching.
Features and specifications of the Geka Minicrop single-cylinder ironworker
L cutting system at 90º without deformation. Wide range of openings for round and squared-cut without deformation.
Goose neck die-holder for punching of D and E sections in legs and web for U and I profiles.
Blade for flat bar with unique radial geometry for shearing with minimum deformation.
Rectangular notching equipment with precision machined worktable and scaled stops.
Optional Blades for shearing D and E section up to 4″ with distortion.
Possibility of mounting a wide range of optional equipment for notching and punching.
This model can be offered in 220V Single Phase version.
FEATURES
MINICROP
Punching Power
50 US Tons
Punching
Ø1-1/16″x1/2″
Shears for section iron L at 90º
3″ x 3″x 5/16″
Cutting of Flat Bars
10″x3/8″ & 8″x1/2″
Notching
2″x1 1/2″x1/4″
Capacities based on a material resistance of 65,000 tensile.
The manufacturer reserves the right to make modifications without prior notice.
Main Features of the Geka Minicrop Ironworker
Cutting of angles.
Punching station with gooseneck holder.
Rectangular notching.
Shears for flat bars with a table graduated with degrees and two guide bars.
