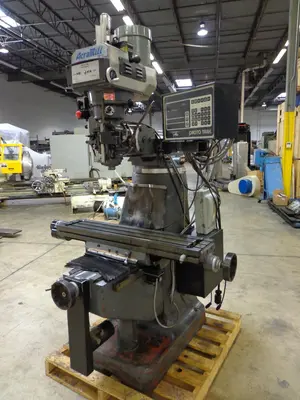

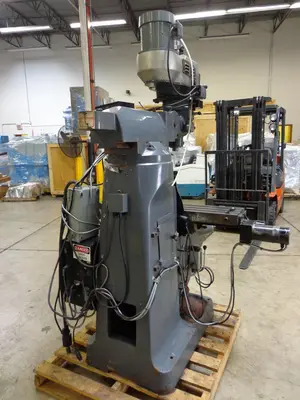

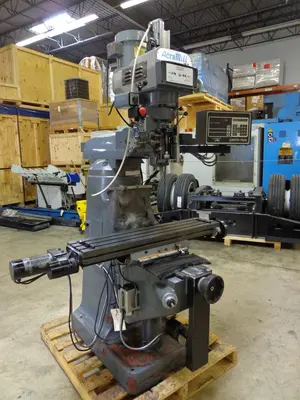

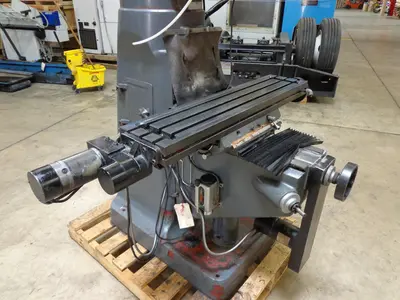

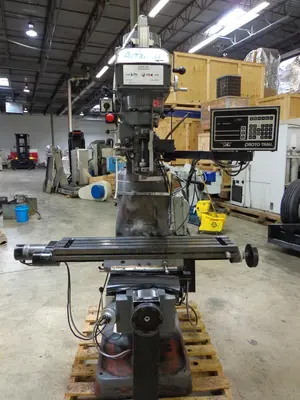

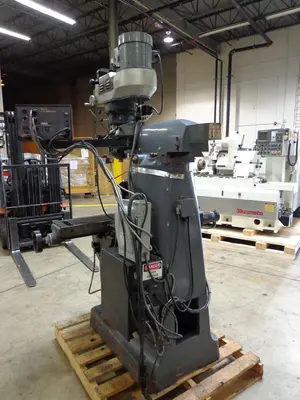

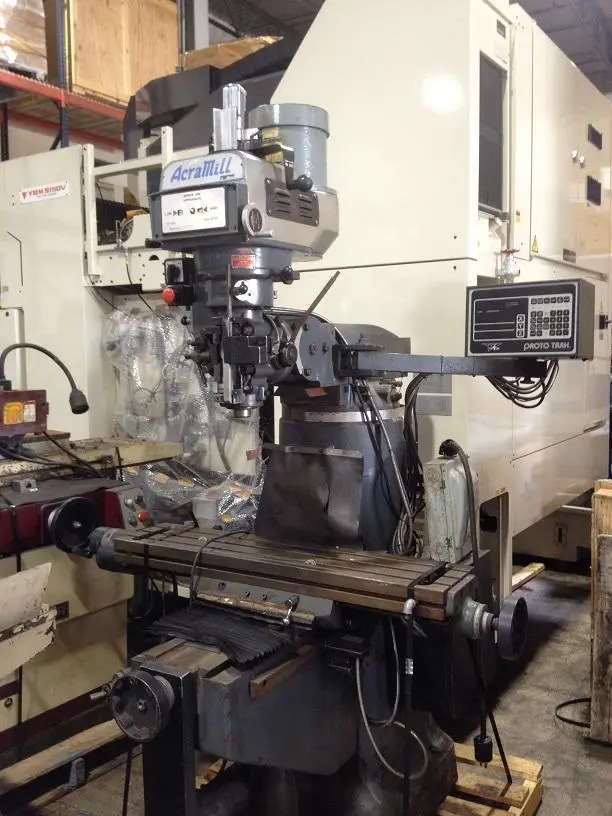

ACRAMILL SOUTHWESTERN INDUSTRIES AM2V CNC VERTICAL MILL

Equipped With
ACRAMILL SOUTHWESTERN INDUSTRIES AM2V CNC VERTICAL MILL
New 1994
T Slotted Table Size:                   9 x 42
  Max Table Load:                         550 LBS
  X Axis Travel:                          26"
  Y Axis Travel:                          12"
  Z Axis Travel:                          5"
  Spindle to Table:                       18.75"
  Spindle Speeds:                         75-4200 RPM
  Rapid Rates:                            200 IPM (X,Y)
  Rapid Rates:                            100 IPM (Z)
  Main Motor Drive:                       3 HP
  Current Electrical Arrangement:         220/440/3/60


  Complete With

  Southwestern Industries Proto Trak 3 Axis CNC Control
  Kurt Power Draw Bar

  Approximate Dimensions:                 54"(LR) X 48"(FB)
  Approximate Weight:                     2,400 Lbs.
