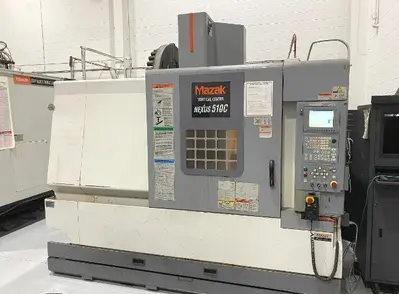

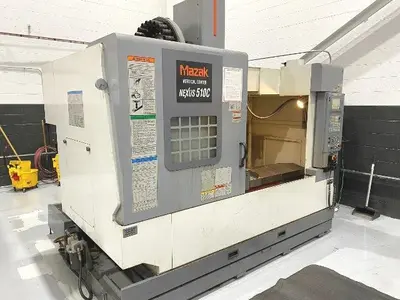

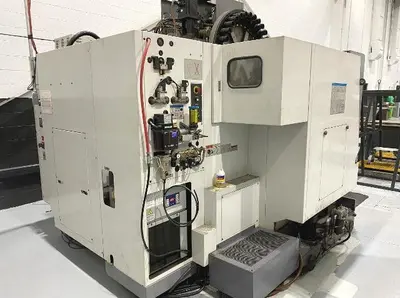

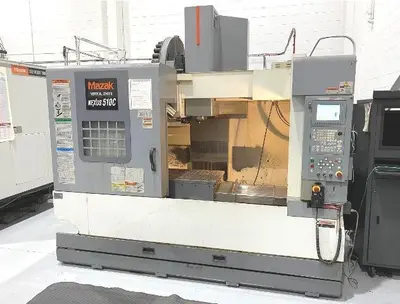

USED 2003 MAZAK 510C

Equipped With
MAZAK NEXUS 510C CNC VERTICAL MACHINING CENTER
New 2003
Equipped With:

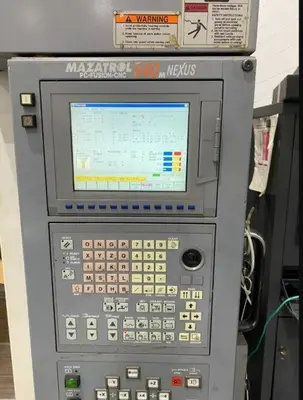

Fusion 640 Control
Coolant through spindle
Probe
Sub Plate

Specifications

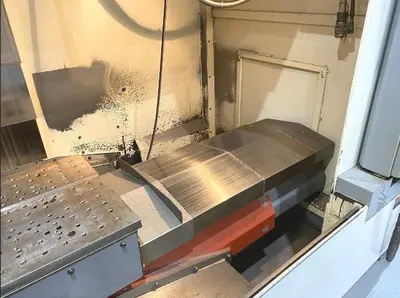

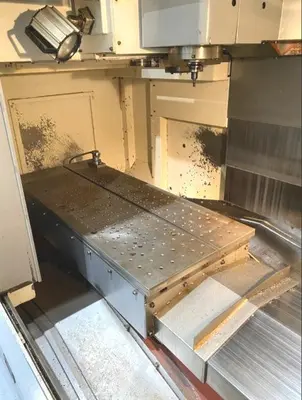

Table:
---------------
Table Size: 52" x 21"
Maximum Table Load: 1,102 Lbs.

Travels:
---------------
X-Axis Travel: 41"
Y-Axis Travel: 20"
Z-Axis Travel: 20"

Spindle:
---------------
Spindle Speeds (Maximum): 12,000 RPM
Spindle Taper: CT 40
Main Motor (30 min. / cont.): 20 H.P.

Tool Changer:
---------------
Tool Changer Positions: 30

Rapids:
---------------
Rapid Traverse (XYZ): 1,417.3 IPM
Max Tool Diameter: 3.15"
With Adjacent Pockets Empty: 4.92"
Max Tool Length: 13.78"
Max Tool Weight: 17.64 Lbs
Approximate Floor Space: 114" x 112"
Approximate Weight: 15,180 Lbs.
