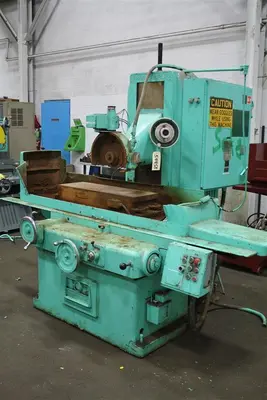

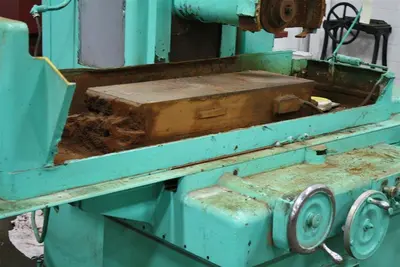

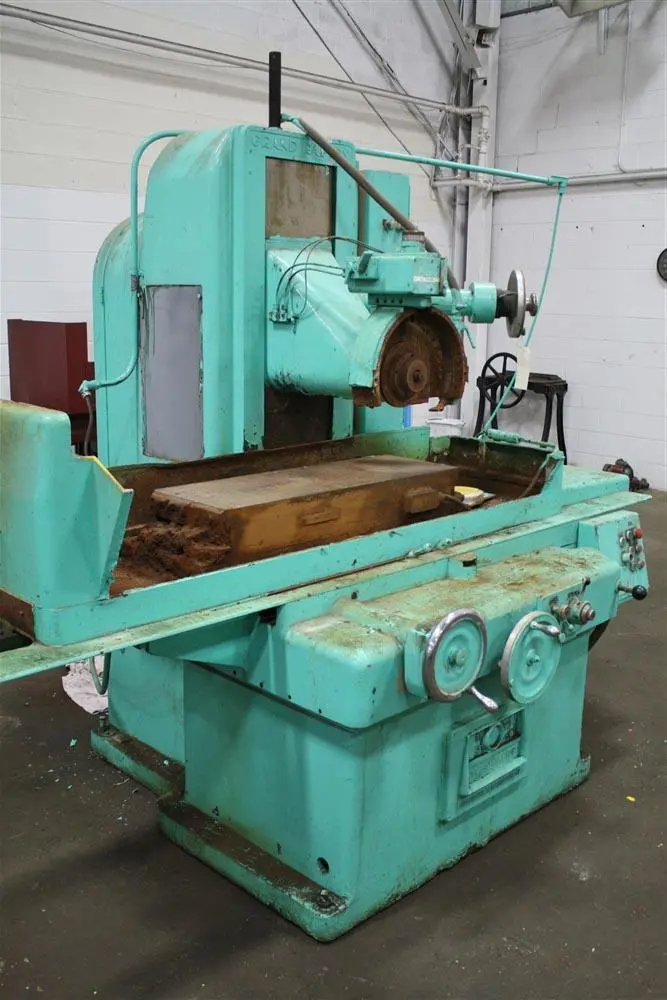

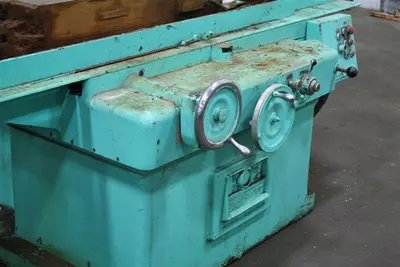

12" X 36" GRAND RAPIDS #550 HORIZONTAL SURFACE GRINDER

Equipped With
12" X 36" GRAND RAPIDS #550 HORIZONTAL SURFACE GRINDER
NEW 1975
SPECIFICATIONS:
GRINDING CAPACITY ............. 12" X 36"
MAXIMUM HEIGHT UNDER WHEEL .... 18"
STANDARD WHEEL SIZE ........... 14" X 1-1/2" X 5"
ELECTRO MAGNETIC CHUCK ........ 12" X 369" X 4-1/2"
TABLE TRAVERSE (VARIABLE) ..... 3 TO 150 IPM
LONGITUDINAL TABLE TRAVEL ..... 47-1/2"
CROSS TRAVEL .................. 13-3/4"
HYDRAULIC MOTOR ............... 3 HORSEPOWER
SPINDLE MOTOR ................. 7-1/2 HORSEPOWER
