1/4" x 12' WYSONG, MODEL 1225 CNC FRONT AND REAR BACKGAUGING

Equipped With

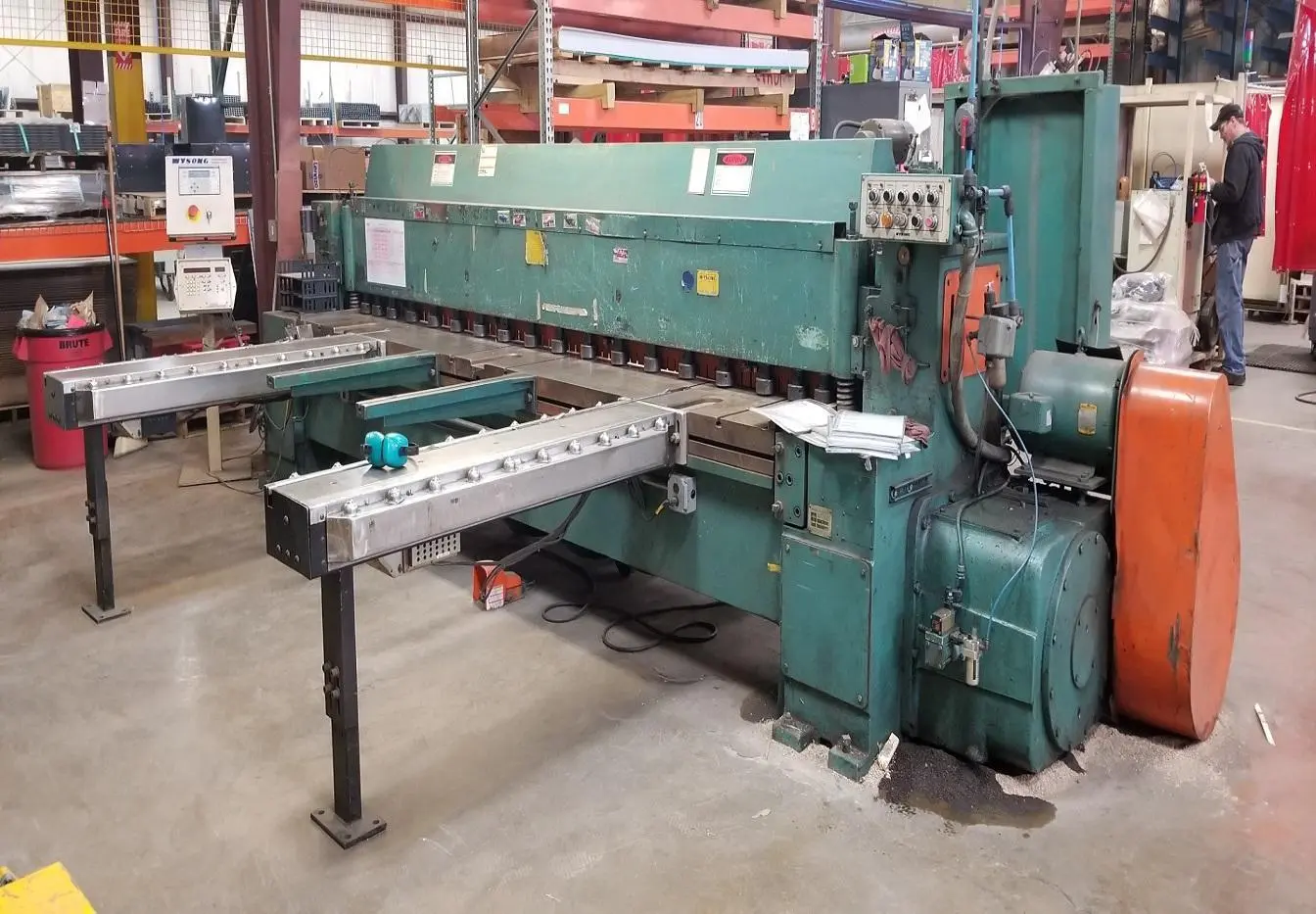

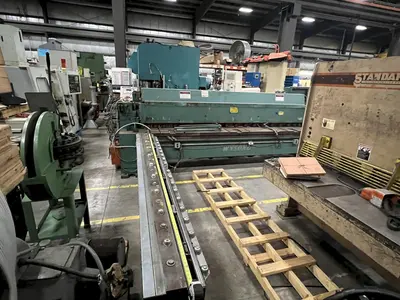

1/4" x 12' WYSONG, MODEL 1225 CNC FRONT AND REAR BACKGAUGING MECHANICAL POWER SQUARING SHEAR
New 1984
SPECIFICATIONS:
CAPACITY (MILD STEEL) ............. 1/4"
CAPACITY (STAINLESS)............... 7 GA.
CUTTING LENGTH..................... 12'
RAKE OF UPPER BLADE ............... 1/4"
BACK GAUGE RANGE .................. 36"
MOTOR ............................. 15 HP
STROKES PER MINUTE ................ 50
WEIGHT (APPROX.) .................. 30,000 LBS
MACHINE DIMENSIONS................. 19' L X 8' W X 6' H
EQUIPPED WITH:
SUPPORT ARMS
SQUARING ARM

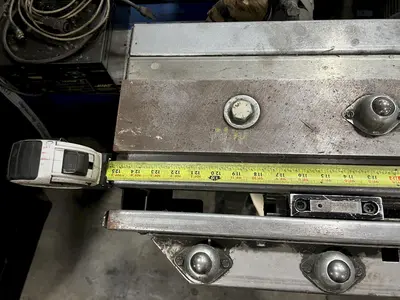

36" FRONT OPERATED POWER BACK GAUGE
FRONT GAUGING SYSTEM
