Equipped With

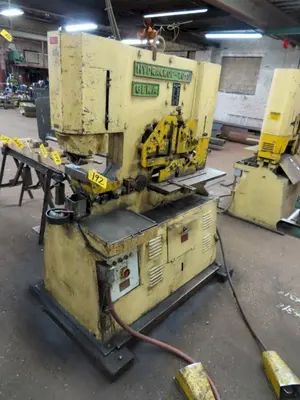

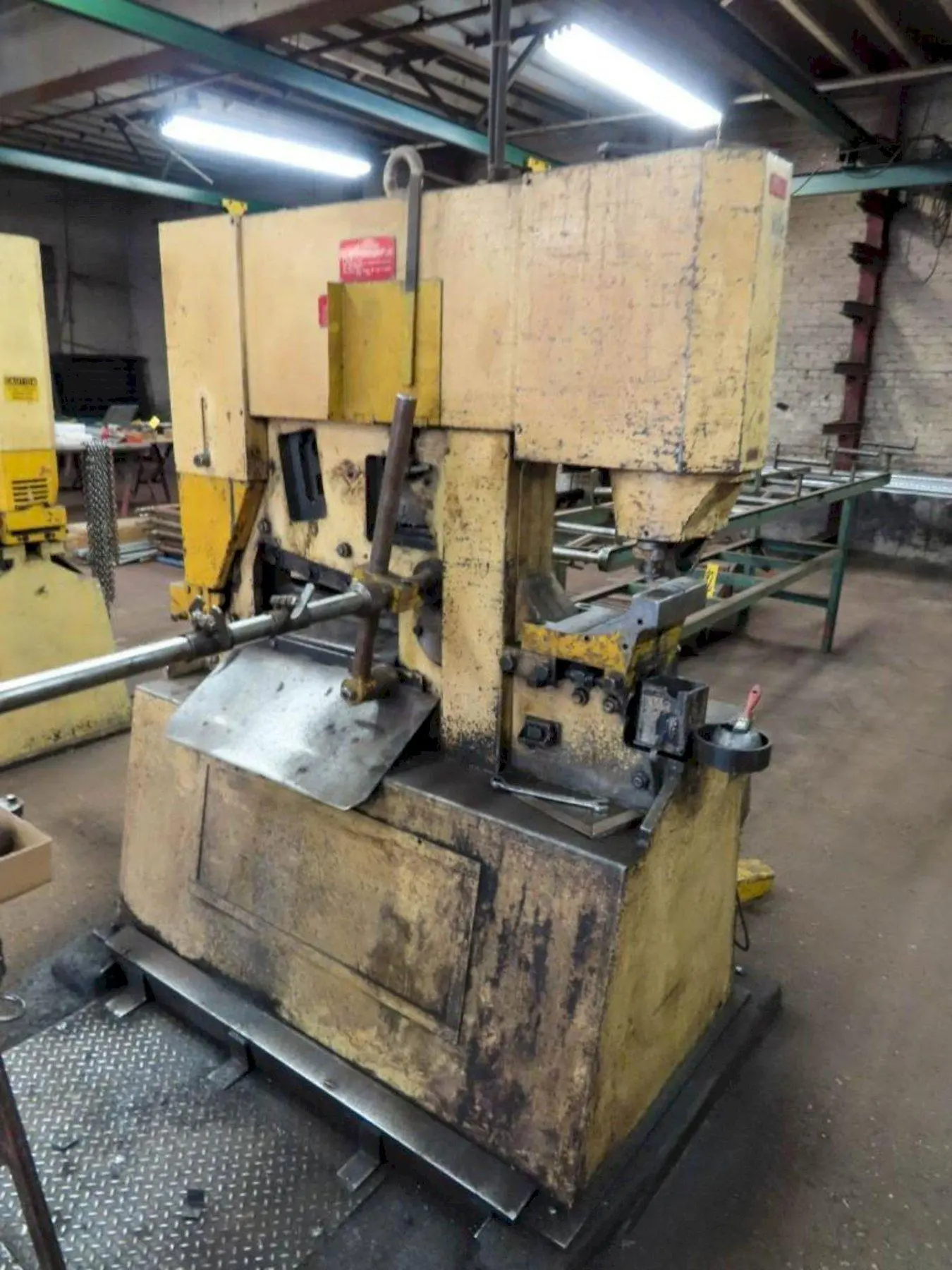

70 TON GEKA MODEL #70-S HYDRAULIC IRONWORKER
CAPACITY PUNCHING ............... 77 TON
MAXIMUM HOLE DIAMETER ........... 1-1/8" X 3/4"
CAPACITY ANGLES AT 90 DEGREES ... 5" X 5" X 1/2"
CAPACITY ANGLES AT 45 DEGREES ... 3" X 3" X 5/16"
FLATS ........................... 18" X 5/8"
ROUNDS .......................... 1-3/4"
SQUARES ......................... 1-3/4"
NOTCHER ......................... 2" X 3-1/2"
TEES ............................ 4-3/4"
CHANNELS ........................ 4-3/4"
STROKES PER MINUTE .............. 48
ELECTRONTIC LENGTH GAUGE ........ YES
DEPTH OF THROAT ................. 12"
DUAL CYLINDERS .................. YES
DUAL ELECTRIC FOOT PEDALS ....... YES
MOTOR ........................... 5 HORSEPOWER
