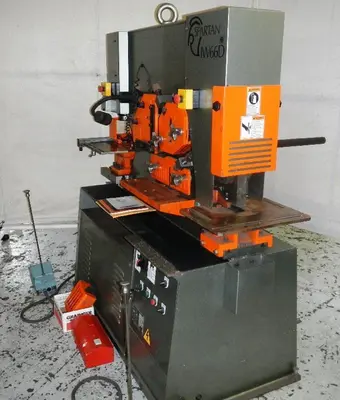

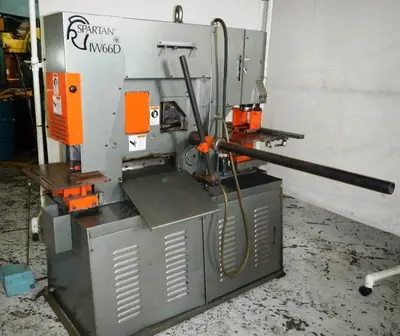

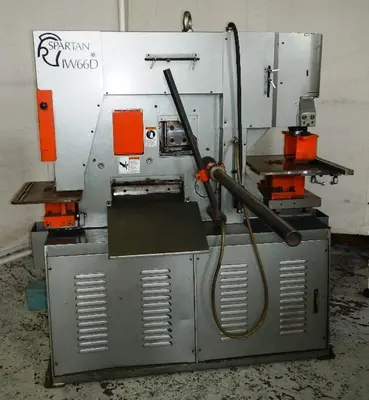

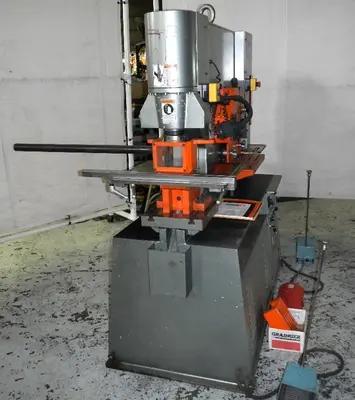

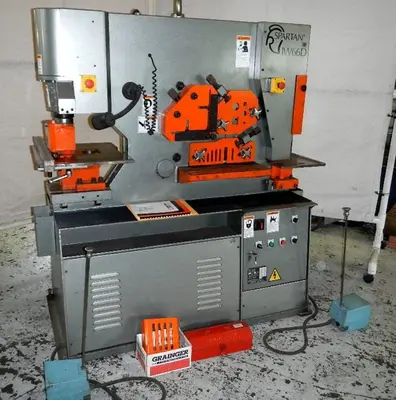

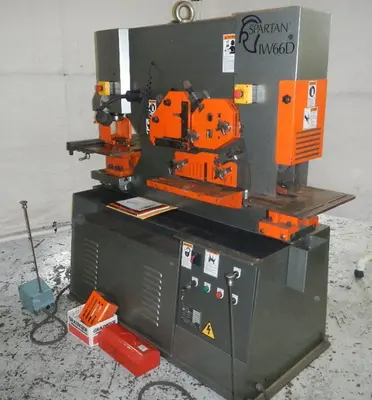

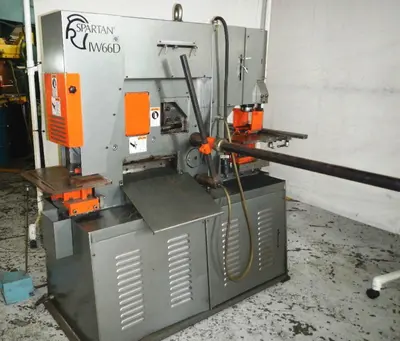

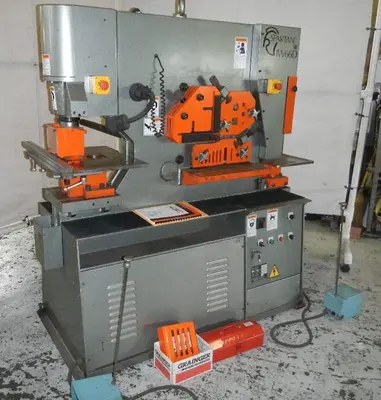

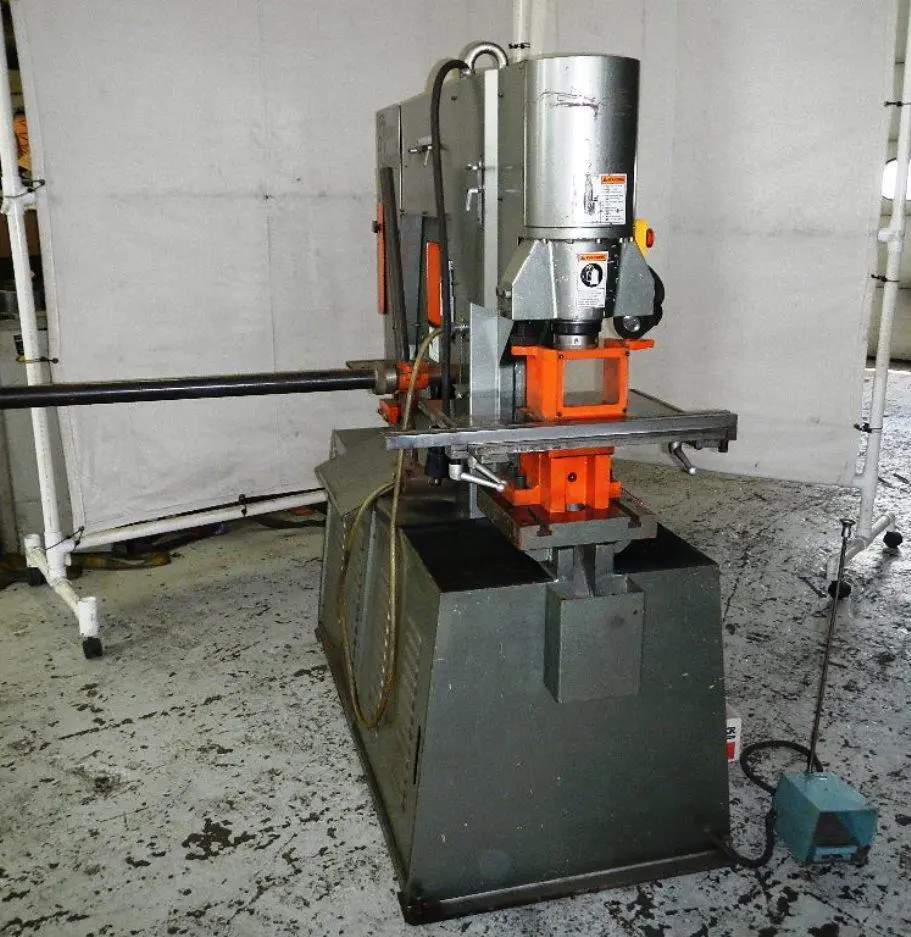

ARMSTRONG BLUM/ SPARTAN MODEL IW66D HYDRAULIC IRONWORKER

Equipped With
ARMSTRONG BLUM/ SPARTAN MODEL IW66D HYDRAULIC IRONWORKER
New 2010
SPECIFICATIONS:
Punching Capacity 66 Tons
1" dia in 3/4" thick steel
Stroke Length 4"
Throat Depth 12"
Flat Bar Shear 14" x 9/16" thick
10" x 3/4"
Angle Shear Capacity 5" x 5" x 1/2"
Bar Shear Capacity 1 1/2" Round
1 1/2" x 1 1/2" Square
Notching Station Capacity 3 1/2" x 3 1/2" x 3/8" thick steel
Work Height 41"
Punching Speed 30 SPM

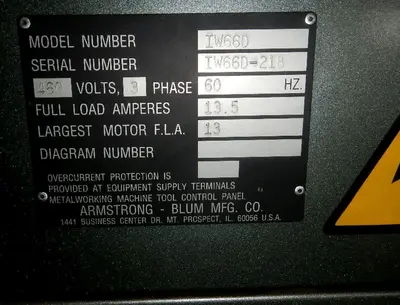

Motor 7 1/2 HP/230/460/60/3
Hydraulic Oil Capacity 24 gallons
Approximate Overall Dimensions 28"W x 77"L x 73"H
Approximate Weight 4,000 Lbs.
EQUIPPED WITH:

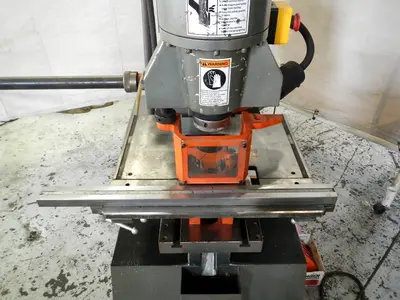

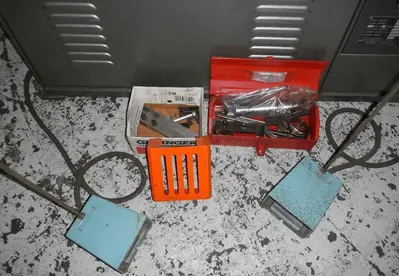

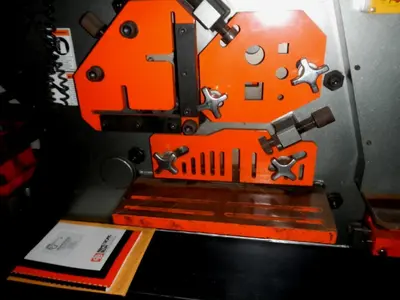

TWO SIMULTANEOUS WORK STATIONS, DUAL REMOTE ELECTRIC FOOT PEDALS, FIVE WORK AREAS (PUNCHING, NOTCHING, ANGLE, FLAT, ROUND AND SQUARE BAR SHEARS, QUICK CHANGE PUNCH, FLAT BAR SHEARING TABLE, PRECISION PUNCHING AND NOTCHING TABLE, ONE METER (40") TOUCH AND CUT LENGTH STOP WITH FINE
ADJUST MENT, FULL MANUALS & SCHEMATICS.
