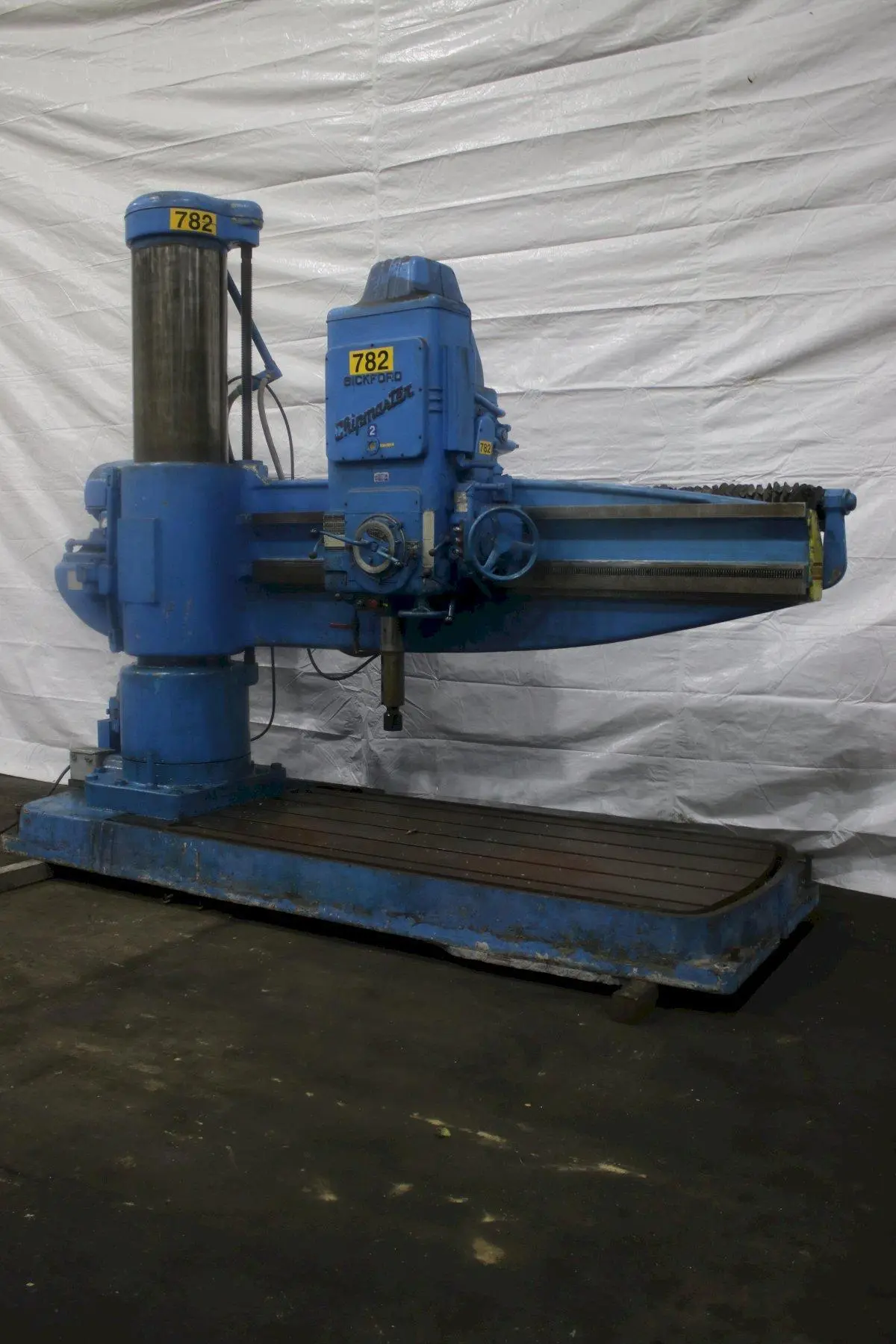

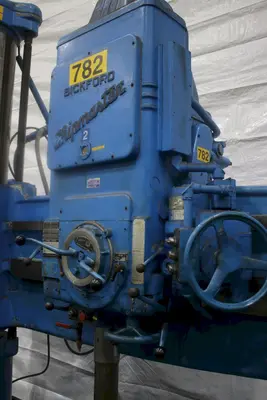

USED 1974 GIDDINGS & LEWIS 00190

Equipped With
8' X 19" GIDDINGS & LEWIS MODEL 00190 RADIAL DRILL
NEW 1974
SPECIFICATIONS:
AREA OF BASE ......................... 102" X 50"
SPINDLE SPEEDS ....................... (36) 10 TO 1250 RPM
FEEDS ................................ (18) .004 TO .125 IPR
THREADS .............................. 8, 11-1/2, 14, 18, 20, 27 TPI
SPINDLE TRAVEL ....................... 20"
DIAMETER OF SPINDLE .................. 4-1/2"
TAPER IN SPINDLE ..................... #6MT
DISTANCE SPINDLE TO COLUMN ........... 17" MINIMUM, 96 MAXIMUM
DISTANCE SPINDLE TO BASE ............. 36" MINIMUM, 78" MAXIMUM
TRAVERSE OF HEAD ON ARM .............. 79"
TRAVERSE OF ARM ON COLUMN ............ 42"
POWER HEAD TRAVERSE .................. YES
POWER ELEVATION & CLAMPING ........... YES
COOLANT .............................. YES
MAIN MOTOR HORSEPOWER ................ 25
