Equipped With

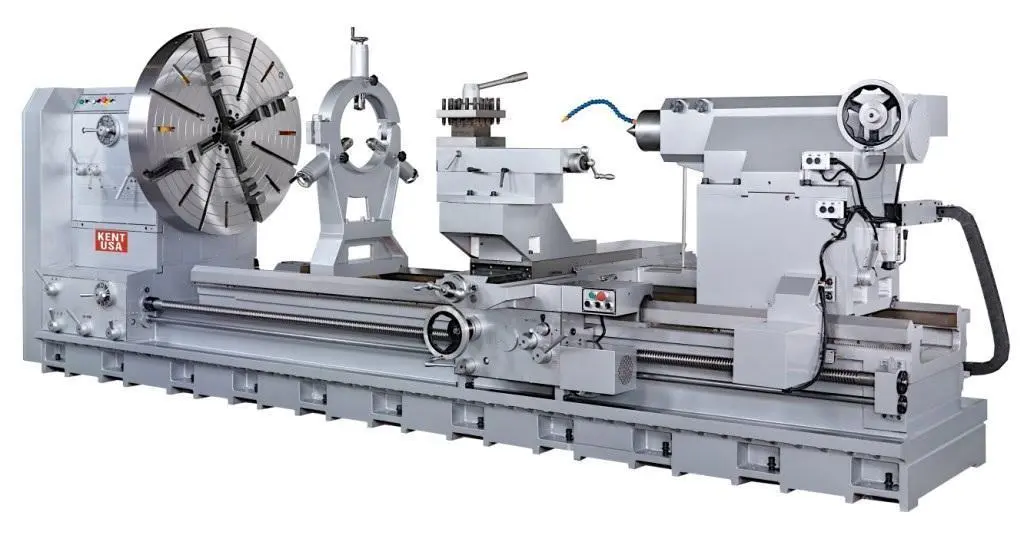

NEW 55" X 120"/160"/200"/240" KENT USA MODEL HK-55 LARGE BORE PRECISION ENGINE LATHE
· 30 HP Spindle Motor, 16-Speeds
· 5.98” Spindle Through Hole
· Extra Heavy Ribbed One Piece Bedways and Base
· Spindle Jog Button Control
· One-shot Lubrication for Apron, Carriage, and Bed Ways
· Two Speed Tailstock with Motorized Tailstock Base
· Magnetic Clutch Brake
4 Way Rapid Feed
Capacity
Swing over bed ways
55” (1400mm)
Swing over cross slide
39” (990mm)
Swing over gap
66” (1680mm)
Gap length (w/ face plate)
14.57” (370mm)
Bed width
32” (810mm)
Distance between centers
120”/160”/200”/240” (3M/4M/5M/6M)
Headstock
Spindle hole
5.98” (152mm)
(Opt. 9” (230mm), 12” (305mm), 15” (380mm))
Spindle nose
ASA A2-11 (Opt. A2-15/A2-20)
Spindle to sleeve taper
Spindle speed
16 Steps, 4 – 420 RPM
(Opt. 12 Steps, 7~266 RPM, B9, B12)
Spindle speed ranges
N/A
Carriage
Top slide (compound) travel
15.75” (400mm)
Cross slide travel
27.56” (700mm)
Feed Box
Thread capacity (inches)
1/4 - 30 TPI
Thread capacity (metric)
1 - 120 MM
Modular threads range
0.25 - 30 M
Diametral pitch range
1 – 120 DP
Longitudinal feeds
0.00236 – 0.277 IPR
Cross feeds
0.00118 – 0.138 IPR
Tailstock
Quill diameter with tang
7.87” (200mm)
Quill travel
20.87” (530mm)
Quill taper
MT#6 (Opt. MT#7)
Power
Main motor
30 HP (40 HP, 50HP Option)
Coolant pump motor
1/8 HP
Control circuit voltage
115 V
Dimension
Shipping dimension (L)
240”/280”/320”/360”
Dimension
Shipping dimension (W)
89”
Dimension
Shipping dimension (H)
91”
Approximate Weight
Net weight (lbs.)
32,670/35,090/37,510/39,930
Gross weight (lbs.)
34,870/37,510/40,150/42,790
