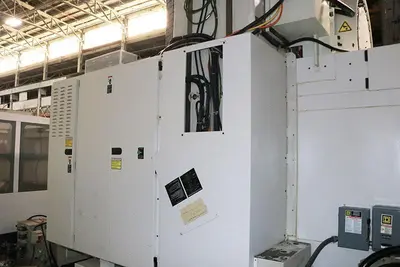

USED 2005 FADAL VMC-65354T-HT

Equipped With

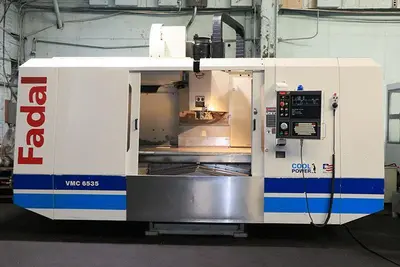

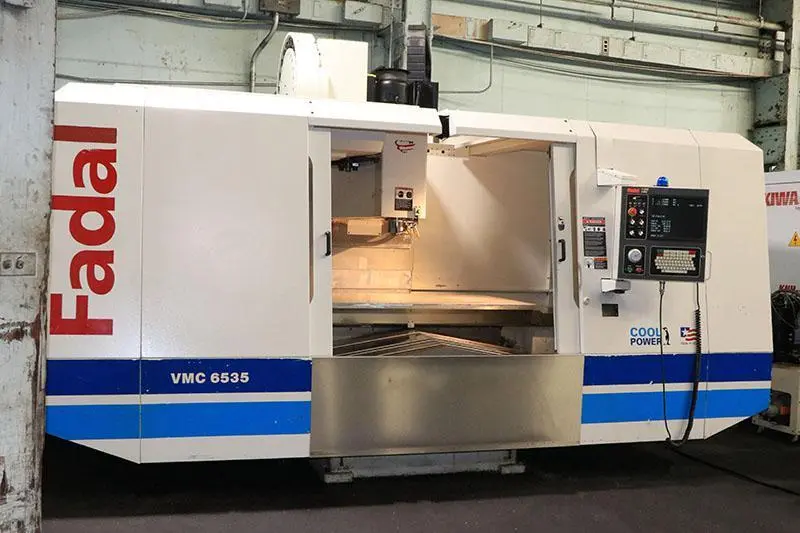

FADAL VMC-65354T-HT VERTICAL MACHINING CENTER
new 2005
SPECIFICATIONS:

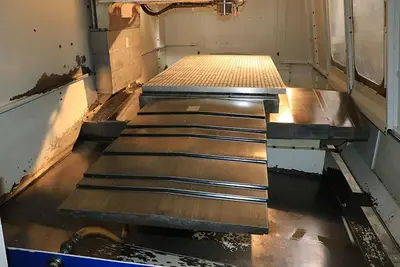

TABLE SIZE ................................... 75" x 35"
TABLE WEIGHT CAPACITY ........................ 4,250 LBS
MACHINE TRAVELS:
    X - AXIS ................................. 65"
    Y - AXIS ................................. 35"
    Z - AXIS ................................. 34"
TABLE TOP TO SPINDLE ......................... 4" - 38"
THROAT DEPTH ................................. 34"
SPINDLE NOSE ................................. #40 CT
SPINDLE SPEED ................................ 10,000 RPM
TOOL MAGAZINE ................................ 24 ATC
MAX TOOL DIAMETER ............................ 3" / 6"
MAX TOOL LENGTH .............................. 15"
RAPID TRAVERSE - X/Y AXIS .................... 900 IPM
RAPID TRAVERSE - Z-AXIS ...................... 700 IPM
CUTTING FEEDRATE ............................. 400 IPM
MAIN MOTOR ................................... 22.5 HP
MACHINE WEIGHT ............................... 28,500 LBS.
APPROXIMATE DIMENSIONS ....................... 219"W x 130"D x 133"MAX H

EQUIPPED WITH:

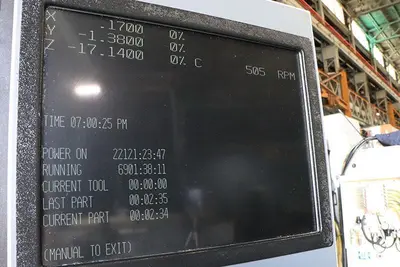

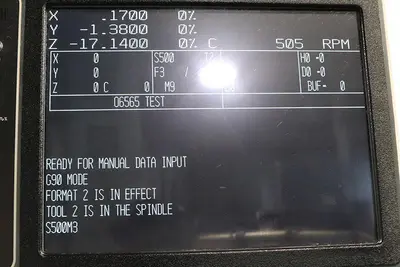

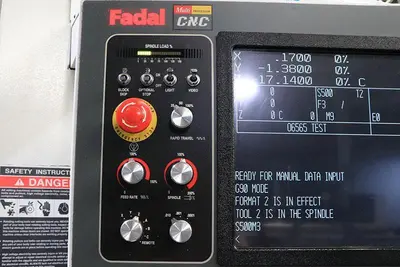

FADAL MODEL: 32 MP CNC CONTROL
   HIGH SPEED CPU, GRAPHICS, COLOR MONITOR, 422K MEMORY
RIGID TAPPING
REMOTE JOG HANDLE
LCD MONITOR
COOLANT THROUGH SPINDLE
CHIP BLASTER HIGH PRESSURE
COOLANT SYSTEM & WASH DOWN
HIGH TORQUE SPINDLE
24 STATION SIDE MOUNTED TOOL CHANGER
COOL POWER (TEMPERATURE CONTROL OF SPINDLE & BALLSCREWS)

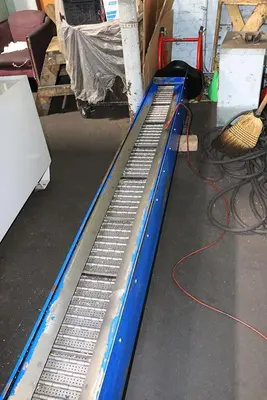

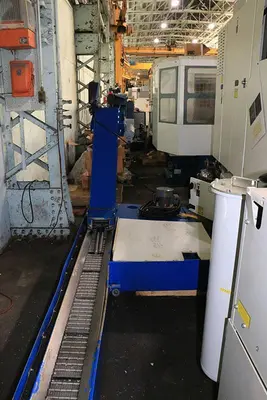

CHIP CONVEYOR

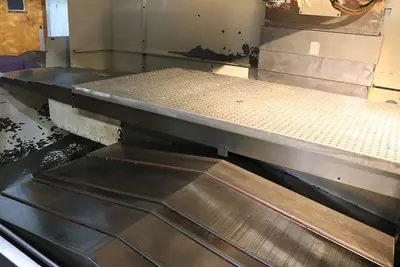

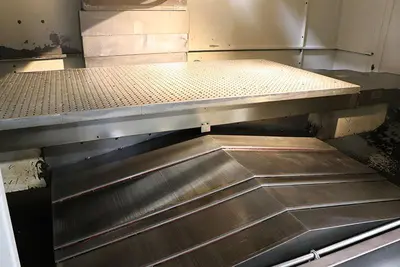

BOX WAYS ALL AXES
