Equipped With

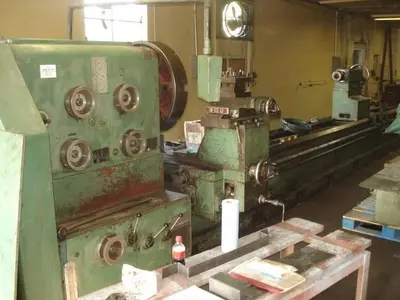

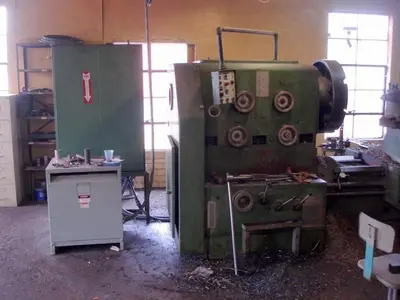

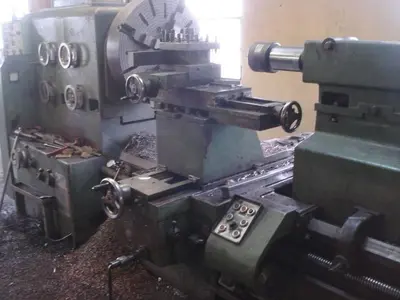

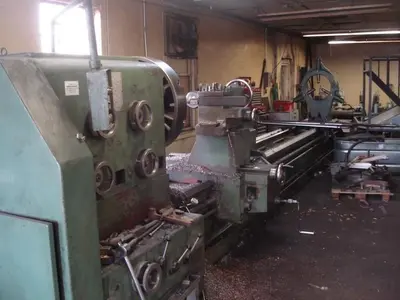

60"/73" X 240" LANSING MODEL GR GAP BED ENGINE LATHE
New 1973
Equipped With:
31-1/2" 4-Jaw Chuck
31-1/2" 3-Jaw Chuck

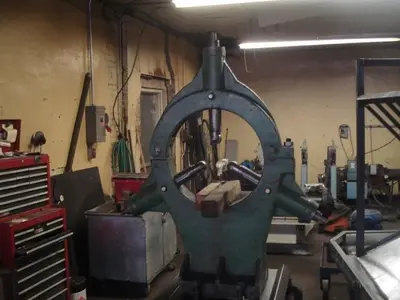

21" Diameter Steady Rest
Inch/Metric Threading
Pendant Control
Swing Over Bed: ............................................................................................................................ 60"
Swing Over Gap: ........................................................................................................................... 73"
Swing Over Cross Slide:.................................................................................................................. 43"
Distance Between Centers:............................................................................................................ 240"
Spindle Speeds: ......................................................................................................... 2.8 – 310 RPM
Hole Through Spindle:...................................................................................................................... 4"
Spindle Nose:....................................................................................................................... Cam-Lock
Tailstock Taper:..................................................................................................................... No. 6 MT
Tailstock Quill Diameter:.................................................................................................................5.5"
Motor (Est.): ............................................................................................................. 50 HP 3/60
