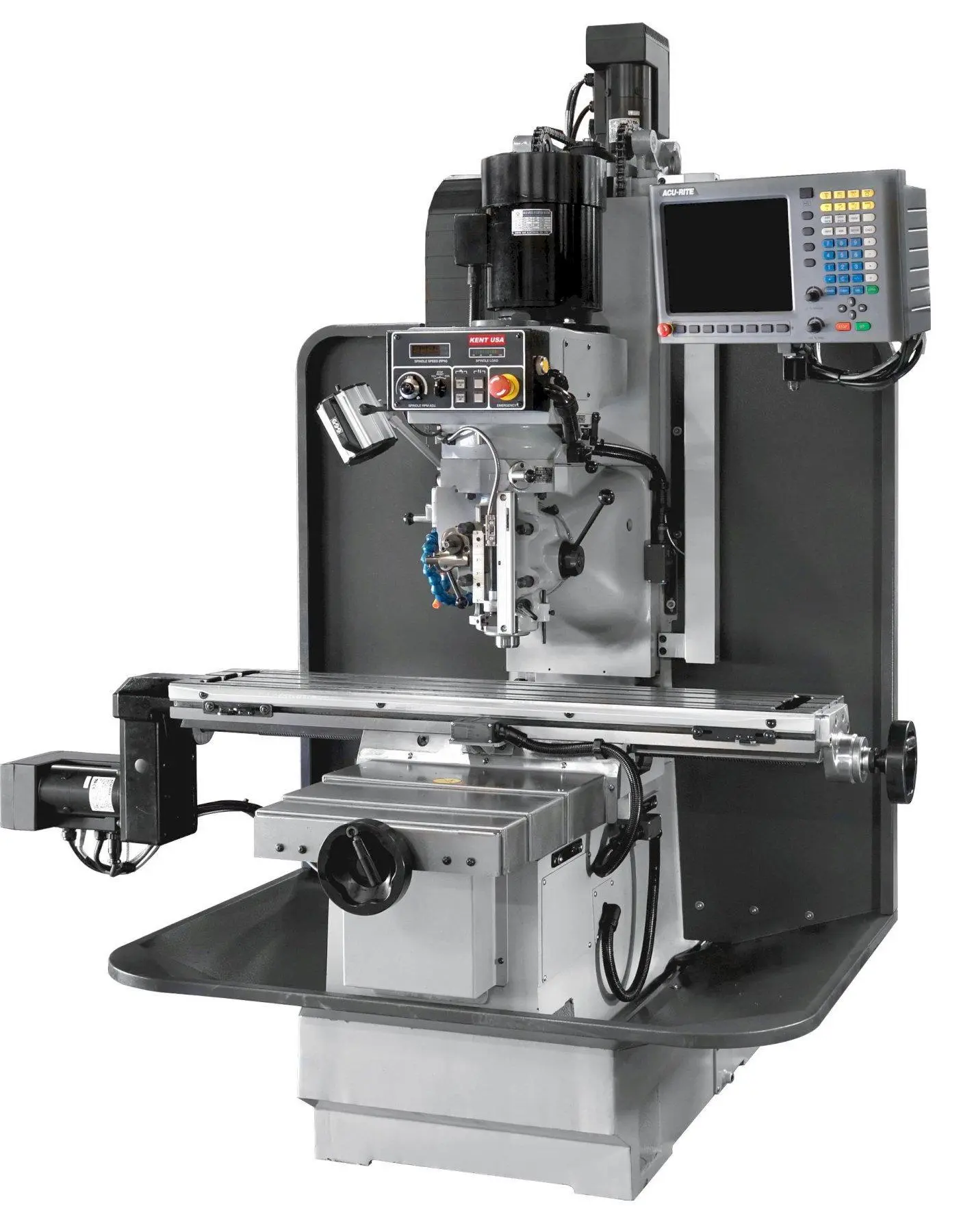

10" x 50" KENT USA KTM-3VVK MANUAL KNEE MILL - NEW
PRODUCT FEATURES
Rigid Spindle/Head housing with powerful 3 hp vector drive spindle motor
80 – 4500 rpm programmable spindle provides greater range of machining capability
Metal telescopic way cover on front saddle ways for enhance durability
X-axis and Y-axis metal hand wheels for manual operation and set ups
Automatic lubrication system with metered check valves
Programmable flood coolant with splash guards and chip pan
Built-in coolant reservoir in machine base
Certified Meehanite® machine casting for superior dampening and stability
OPTIONAL ACCESSORIES
Quill scale feedback with linked Z-axis compensation
Linear glass scale feedback option (X/Y/Z)Electronic edge finder (0.5” shank, 0.2” tip)
Electronic edge finder (16mm shank, 6mm tip)
Touch probe KT-130
Off-Line Software (desktop programming option)
Internal transformer to provide 120V for CNC control
(120V for CNC so that separate 120V source not needed)
Air power drawbar
Option for 440V electrics instead of 220V 3PH power
Multi-tap transformer 440~480V primary to 220V, 20KVA
Machine start up installation and operator training
Programmable rotary table indexer
GENERAL SPECIFICATIONS:
MACHINE CAPACITY:
Table size....................................................... 10” x 50”
Table travel (X-axis)....................................... 30”
Saddle travel (Y-axis)..................................... 16”
Column travel (Z-axis)................................... 22”
Spindle nose to table top............................... 2” ~ 24”
Spindle center to column............................... 17.8”
Quill travel..................................................... 5”
Quill diameter............................................... 3-3/8”
Table load capacity........................................ 1480 lbs (distributed)
T-slots (number x width)................................ 3 x 5/8”
MILLING HEAD:
Spindle motor................................................ 3 hp
Spindle taper.................................................. R8 / (Opt. NMTB30)
Speed range................................................... 80 - 4500 rpm
Quill power feed (per rev)............................. 0.0017” / 0.0032” / 0.0054”
Drilling capacity............................................. ø 1”
Tapping capacity............................................ ø 0.25”
RAPID TRAVERSE:
Rapid traverse X/Y/Z..................................... 200 inch/min (MillPwr-G2)
UTILITY:
Machine power required............................... 220V / 3PH / 30A
CNC control/servo power required............... 120V / 1PH / 20A
Compressed air required............................... 80 psi
Coolant reservoir........................................... 10 gallon
Lubrication tank size...................................... 0.5 gallon
WEIGHT & DIMENSION:
Machine weight............................................. 3960 lbs
Packing dimension......................................... 98” x 58” x 83”
