Equipped With

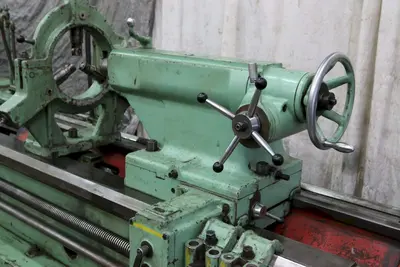

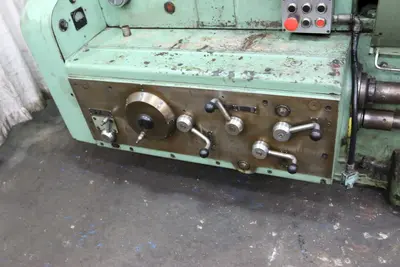

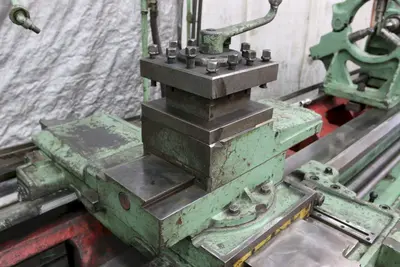

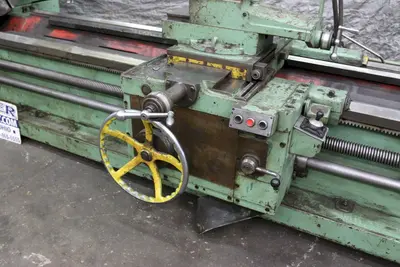

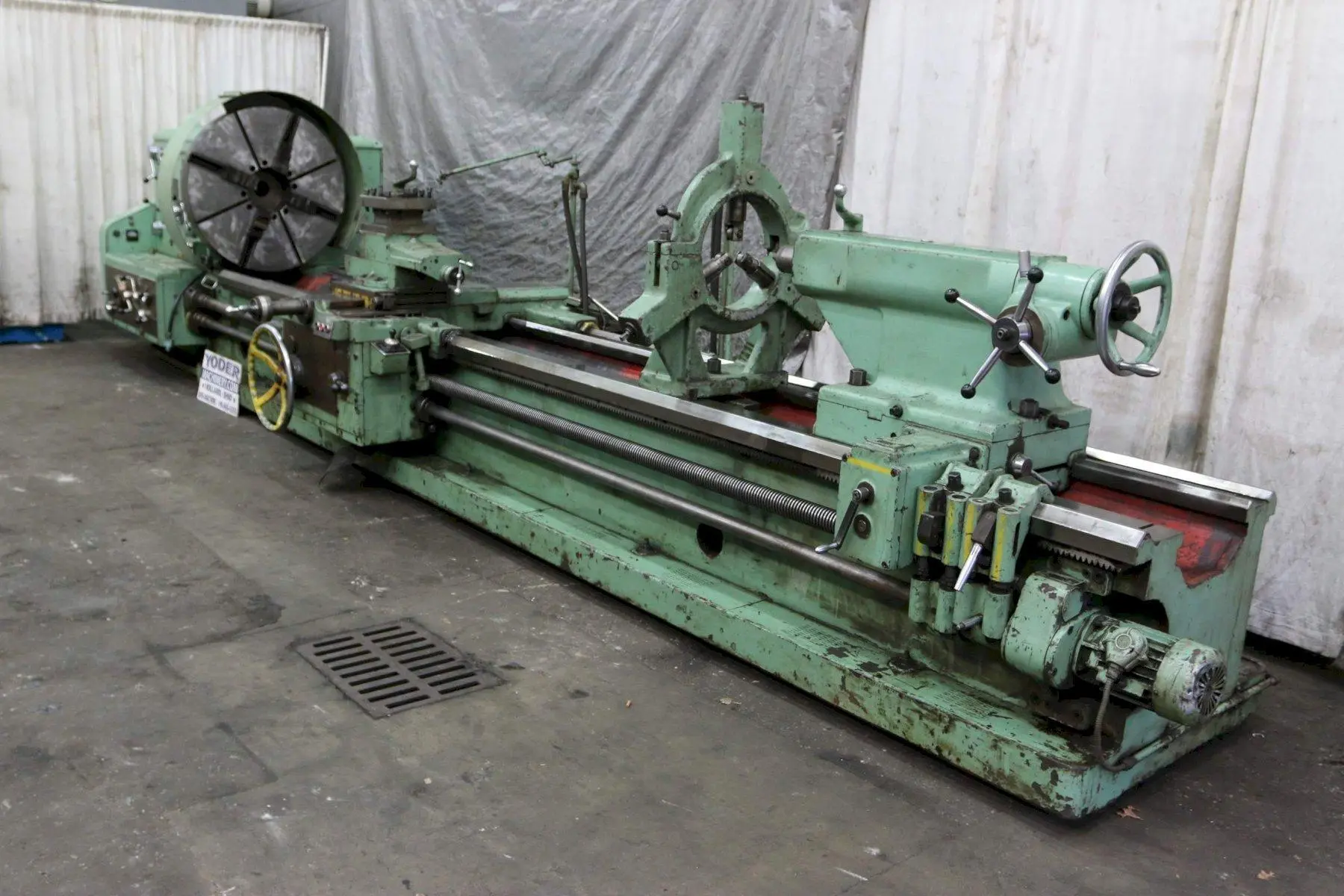

40" X 16' STANKO MODEL 165 GAP BED ENGINE LATHE
New 1975
SWING OVER WAYS ........................ 41"
SWING OVER CROSS SLIDE ................. 26"
DISTANCE BETWEEN CENTERS ............... 196" (16')
SPINDLE SPEEDS ......................... (24) 5 TO 500 RPM
LONGITUDINAL FEEDS ..................... .0008 TO 0.041 IPR
THREADS ................................ 1/4 TO 32 TPI
METRIC THREADS ......................... 1 TO 120 MM PITCH
DIAMETER OF SPINDLE HOLE ............... 3.75"
RAPID TRAVERSE ......................... 4 WAY

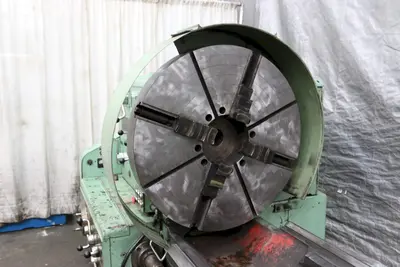

CHUCK .................................. 39" 4-JAW CHUCK
TAPER ATTACHEMENT ...................... YES

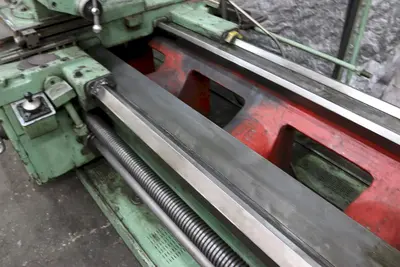

HARD WAYS .............................. YES

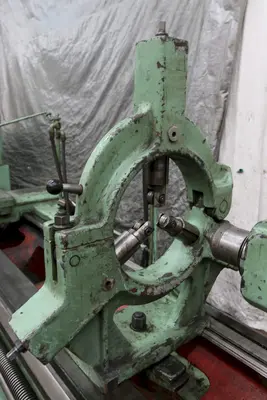

STEADY REST ............................ 15" 3 POINT ROLLER
FOLLOW REST ............................ YES

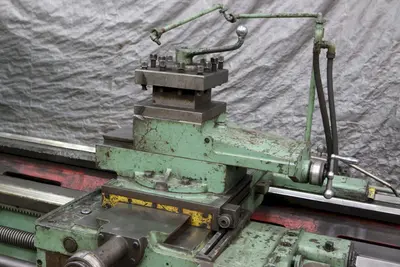

COOLANT ................................ YES
MOTOR .................................. 25 HORSEPOWER
