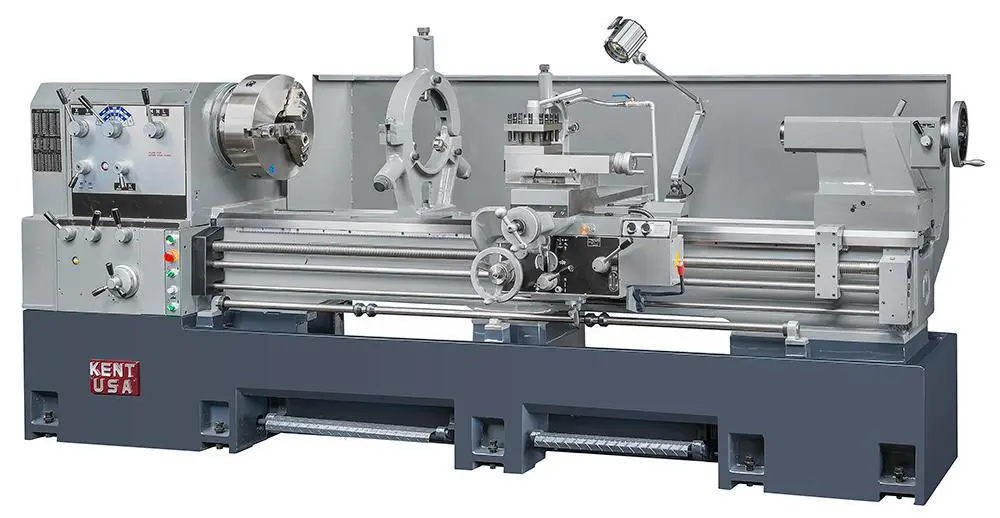

26" x 80" KENT USA HW-2680 MANUAL PRECISION LATHE - NEW
PRODUCT HIGHLIGHTS
15 HP Spindle Motor, 12-Speeds
4.5” Spindle Through Hole
Solid Full Length Casting Base
Spindle Jog Button Control
One-shot/Auto Lubrication for Apron, Carriage, and Bed Ways
Multi-position Adjustable Feed Position Stops
Dual Inch/Metric Calibrated Tailstock Quill
STANDARD ACCESSORIES
3-jaw chuck
Steady rest
Follow rest
Thread Chasing Dial
Carriage Stop
4-position tool post
Coolant system
Capacity
Swing over bed ways
26” (660mm)
Swing over cross slide
17.3” (440mm)
Swing over gap
35” (890mm)
Gap length (w/ face plate)
11.8” (300mm)
Bed width
15.75” (400mm)
Distance between centers
80”/130”/169”
(2000/3300/4300mm)
Headstock
Spindle hole
4.5” (115mm)
Spindle nose camlock
D1-11
Spindle to sleeve taper
MT#7
Spindle bore
4.5”(115mm)
Spindle speed
12 Steps,
10–1000 RPM(bore 115mm)
Carriage
Cross slide travel
14.75” (375mm)
Top slide (compound) travel
8” (200mm)
Feed Box
Thread capacity (inches)
44, 2 - 56 TPI
Thread capacity (metric)
39, 0.5 - 14 MM
Leadscrew Diameter
1.5”
leadscrew pitch
4 TPI
Longitudinal feeds
0.002 – 0.032 IPR
Cross feeds
0.001 – 0.0094 IPR
Tailstock
Quill diameter with tang
3.3” (85mm)
Quill travel
6.5” (165mm)
Quill taper
MT#5
Power
Main motor
15 HP
Coolant pump motor
1/8 HP
Control circuit voltage
115 V
Dimension
Shipping dimension (LxWxH)
137”/186”/219”x41”x52”
Weight
Net weight (approx)
6570/8223/10890 LBS
Gross weight (approx)
6900/8554/11332 LBS
