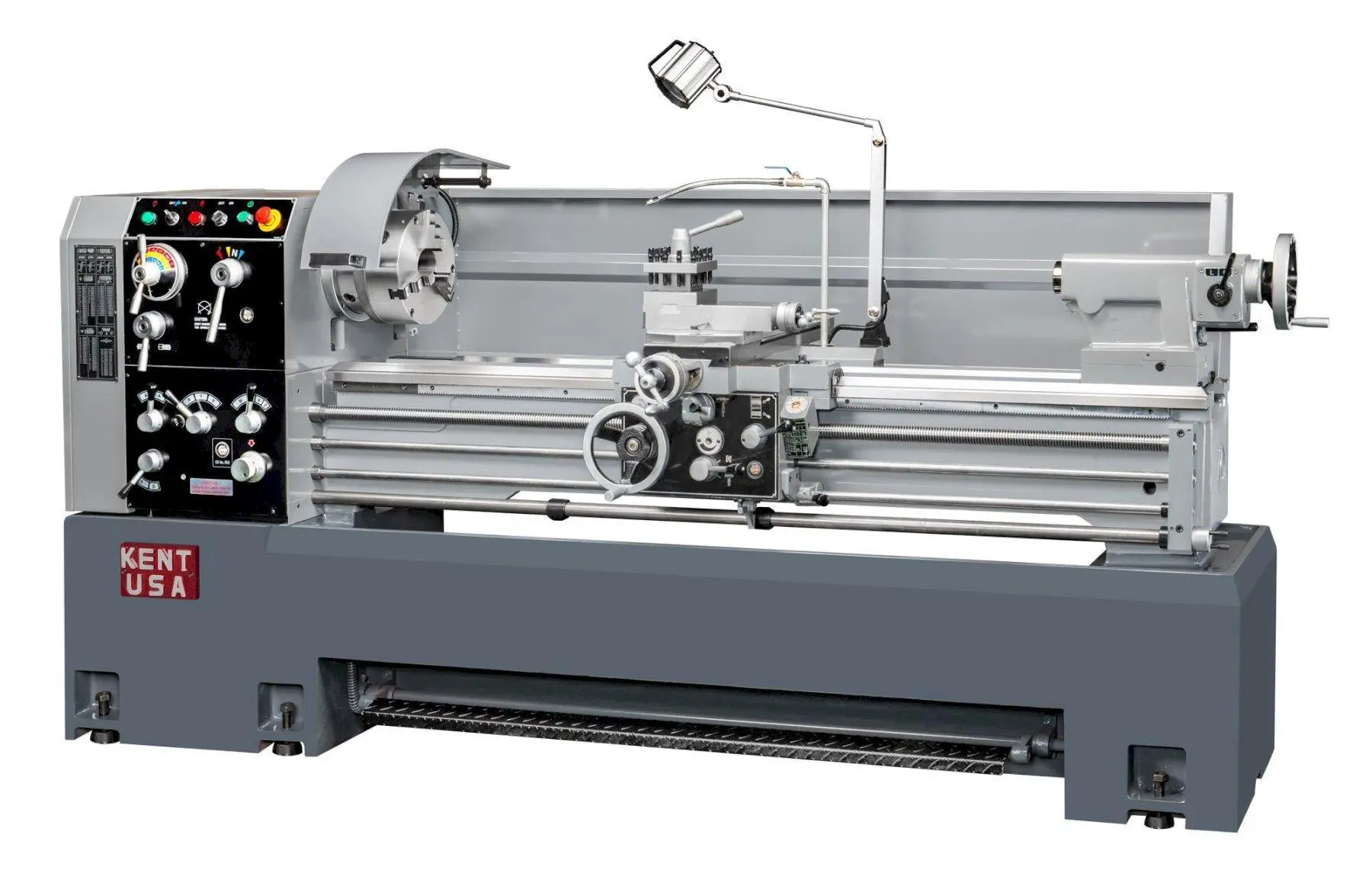

NEW KENT CS-1860

Equipped With
18" x 63" KENT USA CS-1860 MANUAL PRECISION LATHE - NEW
PRODUCT HIGHLIGHTS
·         7.5 HP Spindle Motor, 12-Speeds
·         Precision Spindle with 3 Point Support
·         3.2” Spindle Through Hole
·         Hardened and ground spindle gears and shafts; hardened and ground bedways
·         Solid Full Length Casting Base; Full-length Safety Foot Brake
·         Spindle Jog Button Control
·         One-shot/Auto Lubrication for Apron, Carriage, and Bed Ways
·         Multi-position Adjustable Feed Position Stops
·         Dual Inch/Metric Calibrated Tailstock Quill
STANDARD ACCESSORIES
10" 3 jaw chuck
Steady rest(Dia. 35~220mm)
Follow rest
Work light
Thread chasing dial
4-position tool post
Coolant system

Capacity
Swing over bed ways
18” (460mm)
Swing over cross slide
10.2” (260mm)
Swing over gap
26.7” (680mm)
Gap length (w/ face plate)
10.2” (260mm)
Bed width
13.2” (336mm)
Distance between centers
63” (1600mm)
Headstock
Spindle hole
3.2” (82mm)
Spindle nose camlock
D1-8
Spindle to sleeve taper

Spindle speed
12 Steps, 25 – 1500 RPM
Spindle speed ranges
(25,40,55,75,90,130,190,270,
470,720,1020,1500)
Carriage
Bearing length on ways
18” (500mm)
Cross slide width
6.8” (170mm)
Cross slide travel
12” (295mm)
Top slide (compound) travel
5” (127mm)
Feed Box
Thread capacity (inches)
45, 2 - 72 TPI
Thread capacity (metric)
41, 0.2 - 14 MM
Modular threads range
18, M0.3 – 3.5
Diametral pitch range
21, D.P. 8 - 44
Longitudinal feeds
0.0015 – 0.04 IPR
Cross feeds
0.00075 – 0.02 IPR
Tailstock
Quill diameter with tang
2.56” (65mm)
Quill travel
5.9” (150mm)
Quill taper
MT#5
Power
Main motor
7.5 HP
Coolant pump motor
1/8 HP
Control circuit voltage
110 V
Dimension
Shipping dimension (LxWxH)
114”x39”x58.3”
Weight
Net weight (approx)
4510 LBS
Gross weight (approx)
4642 LBS
