Equipped With

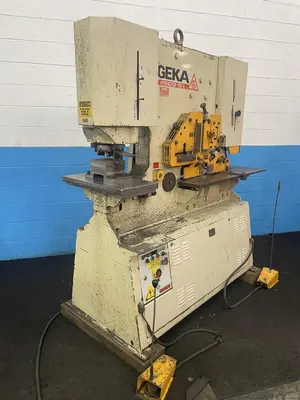

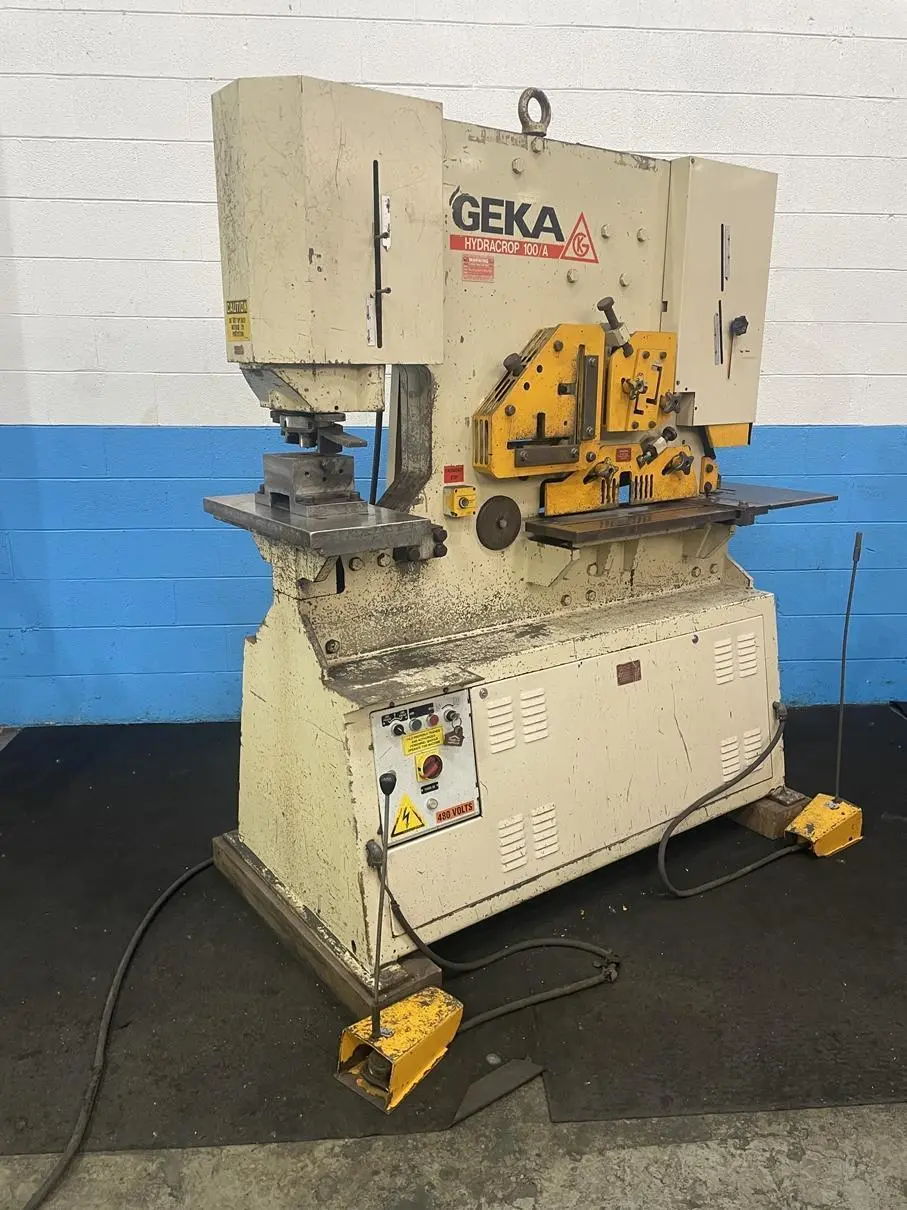

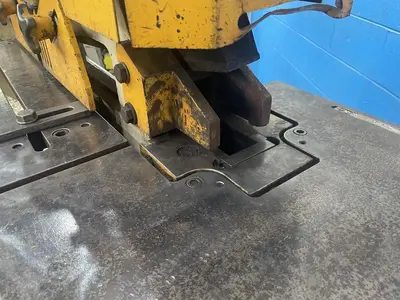

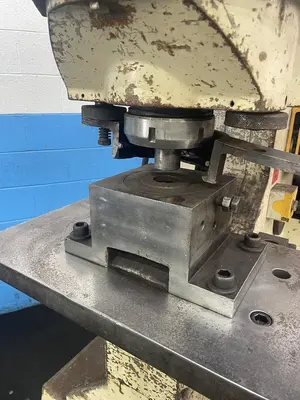

100 TON GEKA MODEL HYD100 HYDRAULIC IRONWORKER
PUNCHING CAPACITY .............. 1-3/16" X 1"
DEPTH OF THROAT ................ 12"
STROKE ......................... 12"

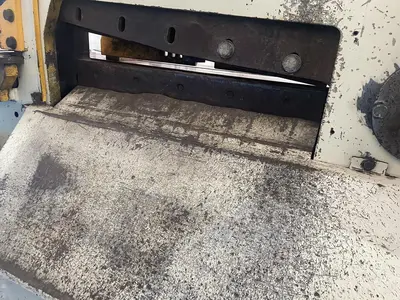

SHEAR FLATS .................... 24" X 5/8" - 16" X 3/4"
LENGTH OF BLADES ............... 24"

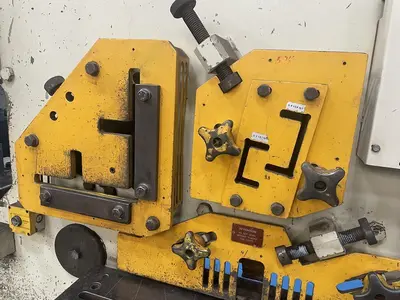

ANGLE SHEAR CAPACITY ........... 6" X 6" X 1/2"
ANGLE SHEAR @ 45 DEGREES ....... 3" X 3" X 5/16"

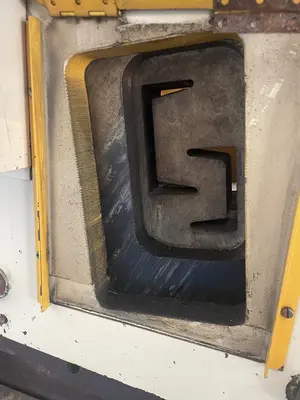

BAR CROPPER ROUND BARS ......... 2" - SQUARE BARS 2"

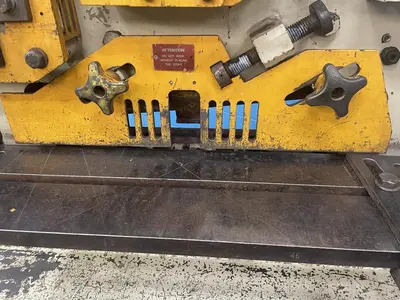

NOTCHER ........................ SHEET METAL 1/2" ANGLE IRON 4"
NOTCHER DEPTH @ WIDTH .......... 3-1/2" X 2"
STROKES PER MINUTE ............. 20 @ 3/4"
TWO FOOT PEDALS ................ YES
DUAL RAMS ...................... YES
MOTOR ......................... 7-1/2 HORSEPOWER
