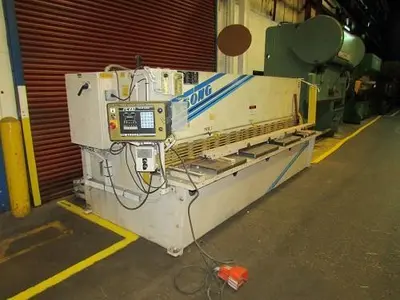

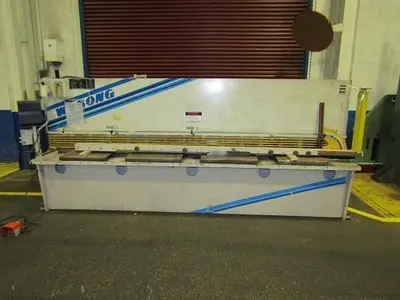

1/4" X 12' WYSONG #H2512 HYDRAULIC SQUARING SHEAR

Equipped With
1/4" X 12' WYSONG #H2512 HYDRAULIC SQUARING SHEAR
SERIAL NO. H4-247
EQUIPPED WITH
36" FRONT OPERATED BACK GAUGE,
12'LH OR RH SQAURING ARM
(2) SUPPORT ARMS
ELECTRIC FOOT PEDDLE
PUSHBUTTONS FOR START - STOP
MANUAL BLADE CLEARANCE ADJUSTMENT
SPEED CONTROL VALVE
SPECIFICATIONS:
CAPACITY (MILD STEEL): 12' X 1/4"
CAPACITY IN STAINLESS STEEL: 12' X 7 GAUGE
LENGTH OF BLADE: 146"
DISTANCE BETWEEN HOUSINGS: 127"
GAP: 3"
HOLD DOWNS: 16
RAKE ANGLE: 5/16"
OPERATION: HYDRAULIC
CONTROL: WYSONG PC-100 CNC
MOTOR: 15HP
WORKING HEIGHT: 32"
APPROXIMATE DIMENSIONS: 181" X 85" X 73" H
APPROXIMATE WEIGHT: 21,000 LBS
WITH STACKER
