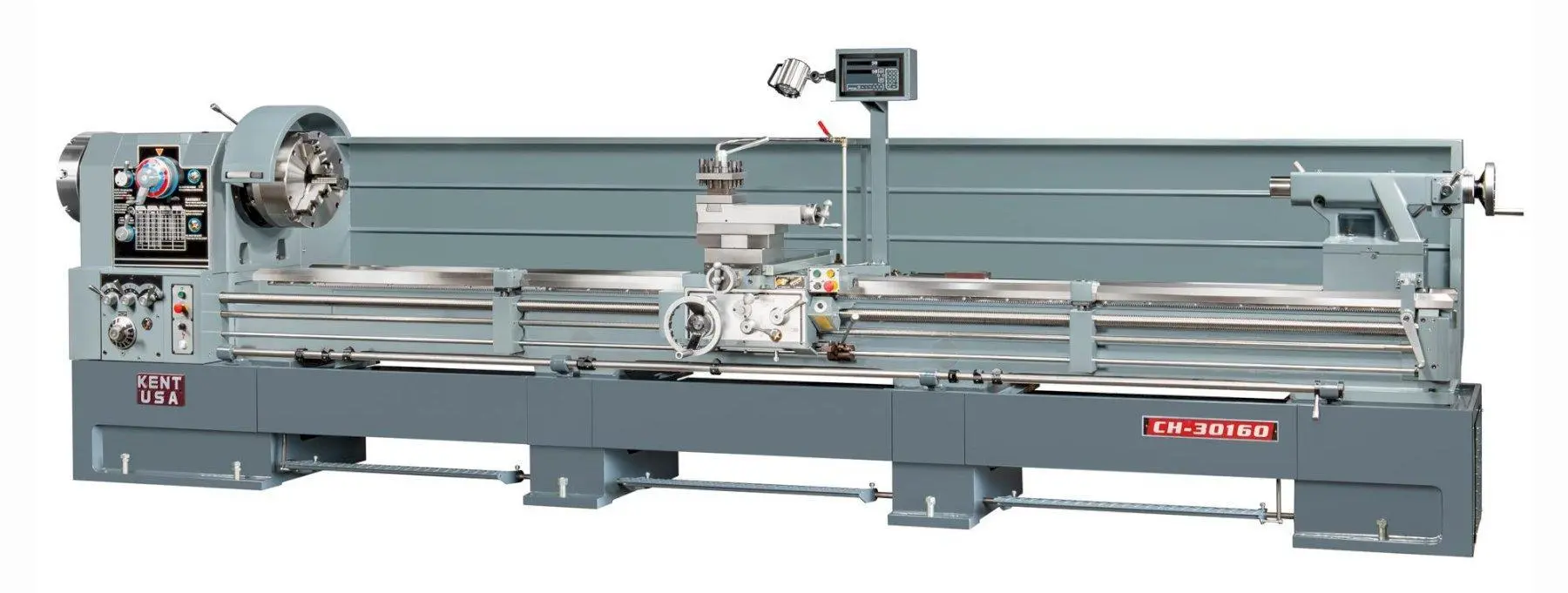

NEW - 26" x 90"/120"/160" KENT USA MODEL CH-30 PRECISION ENGINE LATHE
Outstanding Features:
· 15 HP Spindle Motor, 12-Speeds
·
4.1” (104mm)Spindle Through Hole
· Solid One Piece Full Length Casting Base and Bedways for Maximum Rigidity
· Spindle Jog Button Control
· One-shot Lubrication for Apron, Multi-position Adjustable Feed Position Stops
· Dual Inch/Metric Calibrated Tailstock
· Dual Inch/Metric Dials
PRICE INCLUDES:
3-jaw chuck (16”, made in Taiwan), Steady rest(10”, roller), follow rest(40-184mm), Thread chasing dial, 4 position tool post, Coolant system with full-length splash guard, 4 position carriage stop, 2 speed tailstock, Z-axis Rapid travel, Dead center x 2 pcs, LED worklight
Capacity
Swing over bed ways
30” (760mm)
Swing over cross slide
21.4” (445mm)
Swing over gap
39” (892mm)
Gap length (w/ face plate)
10.63” (270mm)
Bed width
15.75” (400mm)
Distance between centers
90”/120”/160”
(2300/3000/4000mm)
Headstock
Spindle hole
4.1” (104mm)
Spindle nose camlock
D1-11
Spindle to sleeve taper
MT#7
Spindle bore
4.1”(104mm)
Spindle speed
12 Steps,
13–1200 RPM(bore 104mm)
Carriage
Cross slide travel
15.75” (400mm)
Top slide (compound) travel
8.98” (228mm)
Feed Box
Thread capacity (inches)
44, 2 - 72 TPI
Thread capacity (metric)
39, 0.2 - 14 MM
Leadscrew Diameter
1.77”(45mm)
leadscrew pitch
4 TPI
Longitudinal feeds
0.0012 – 0.039 IPR
Cross feeds
0.0004 – 0.0117 IPR
Tailstock
Quill diameter with tang
3.15” (80mm)
Quill travel
10” (250mm)
Quill taper
MT#5
Power
Main motor
15 HP (Opt.:20HP)
Coolant pump motor
1/8 HP
Control circuit voltage
115 V
Dimension
Shipping dimension (LxWxH)
160”/187”/227”x45”x76”
(4055/4755/5755x1150x1950mm)
Weight
Net weight (approx)
7,678/8195/9526 lbs
(3490/3725/4330 Kgs)
Gross weight (approx)
1,178/8795/10,228 lbs
* Please note: All pricing, features, and specifications are subject to change without prior notice. Pricing based FOB Tustin, California.
Power Requirement: 230 volts, 3-phase, 60 Hz, 50 Amp or
460 volts, 3-phase, 60 Hz, 25 Amp
