Equipped With

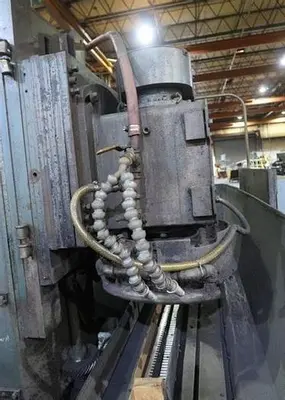

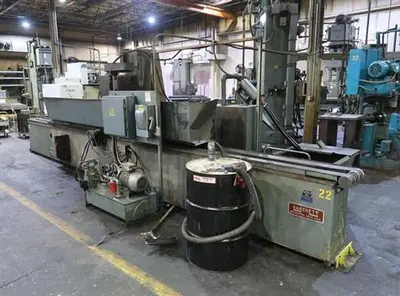

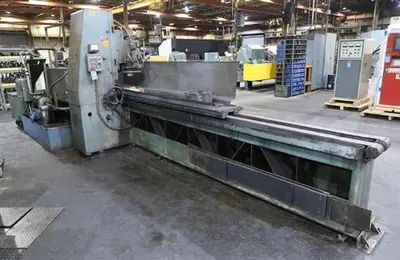

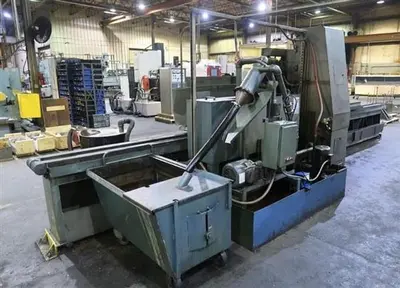

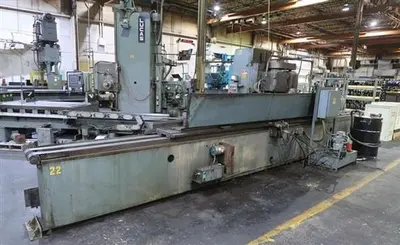

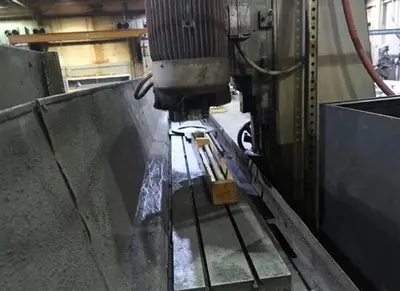

12" X 120" HANCHETT MODEL VS122 HYD HYDRAULIC-FEED VERTICAL-SPINDLE KNIFE/SURFACE GRINDER
New 1985

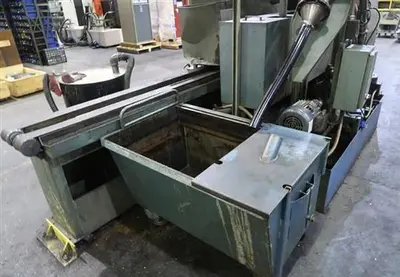

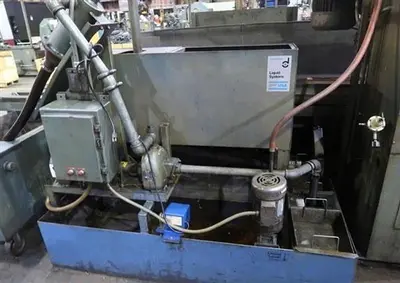

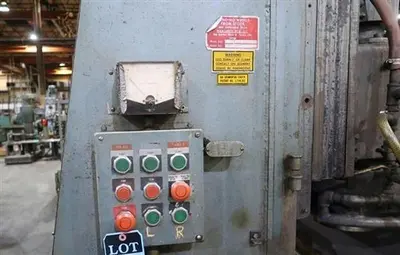

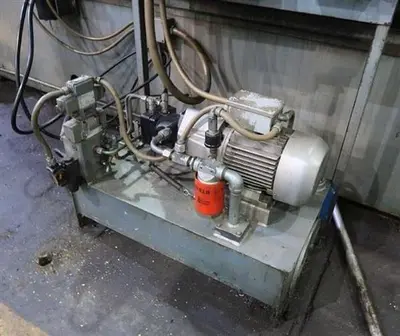

EQUIPPED WITH: 14" DIAMETER QUICK-CHANGE SEGMENTED GRINDING WHEEL INCREMENTAL POWER DOWN FEED AMMETER CHECK FOR MOTORIZED SPINDLE LOADS REAR OPERATORS STATION FAUVER HYDROSTATIC HYDRAULIC DRIVE UNIT (18 GALLON) EXTRA RACK & SCRAP BIN ON CASTERS
SPECIFICATIONS:
Table working surface, w x l
12" X 124"
Table overall dimensions
12" X 141"
Grinding width capacity, maximum
12"
Height under grinding wheel
12"
Table longitudinal stroke, length
131.5"
Grinding wheel diameter, maximum
14"
Number of grinding wheel segments
6
Table longitudinal feeds, range
15 TO 75 FPM
Spindle vertical feeds, range
.002 TO .0025 IPR
Grinding wheel spindle motor
15 HP
Overall dimensions, l x w
287" X 70"
Overall height
85"
