NEW KENT USA KVTC-3270

Equipped With

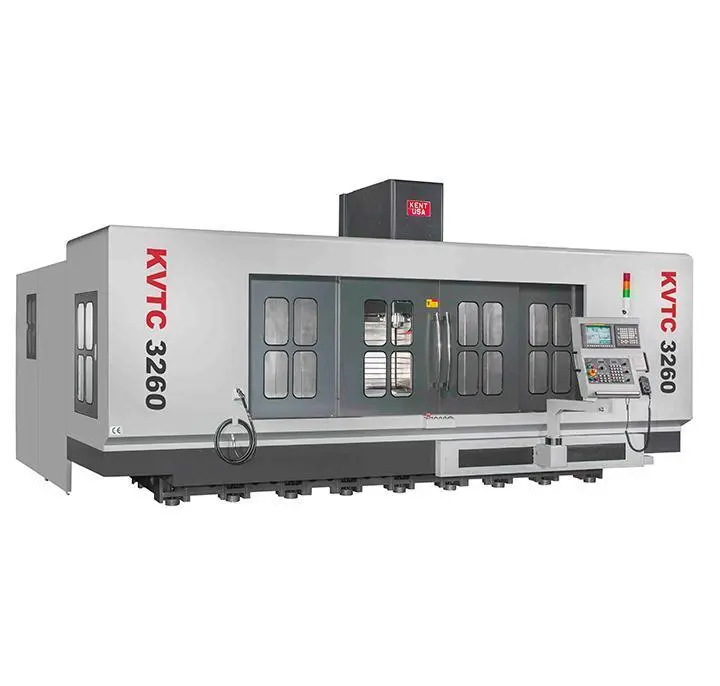

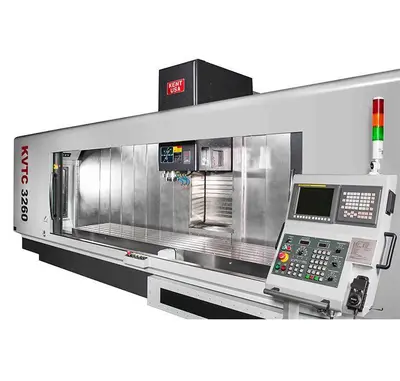

NEW KENT USA MODEL KVTC-3270 CNC TRAVELING COLUMN VERTICAL MACHINING CENTER
Product Highlights
The Kent CNC Traveling Column Type Vertical Machining Centers combine proven machine design with advance technology in control and manufacturing.  Reliability and performance make this series a favorite among demanding job shops and in-house productions alike. Traveling column milling gives you more efficiency and power by having the XYZ movements on the column and a fixed large table. This setup is beneficial especially if the job requires machining multiple workpieces at a time, which can vastly reduce your load/unload time. In addition, the heavy cutting spindle and rigid machine structure enable higher milling efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around. Lastly, our high speed traveling column center VMCs are equipped with CAT, ISO, and DIN 40/50 Taper options with around 10000 RPM in spindle speed or more.
The Kent CNC Track Record of Reliability
With over 18,000 machine tools sold worldwide since 1979, Kent CNC Traveling Column VMCs are proven to increase productivity, delivering reliable and profitable performance. For other  capacity requirements, please see our Linear Way 3-Axis VMC, Heavy Duty High Speed VMC and Double Column VMC.
·         Large working capacity of up to 126” x 28” x 24” travels and 138” x 24” table
·         Powerful 25HP servo spindle motor with up to 12,000 RPM with spindle chiller system
·         Fanuc AICC-NANO high speed contour control
·         Fanuc “i” series high torque dual wound high/low spindle motor
·         Fanuc data server and ethernet
·         Fanuc 0i-MD control w/10.4” LCD color monitor & solid graphics
Standard Equipment
Spindle Chiller
External MPG
M30 Auto Power Off
Chip Conveyor
M-Code Air Blast
Air Condition for Electrical Box
Auto Lubrication System
Oil Skimmer
Coolant System
Leveling Pads and Screws
Tools & Toolbox
Water/Air Gun
Rigid Tapping
Halogen Lamp
Alarm Tower
Full Enclosure Cover
Electrical/Operation Manual
Accessories
4th/5th Axis Rotary Table
12k RPM Spindle
Auto Tool Length
Coolant Through Spindle
CE Electrical Box
Optical Scale
Specifications
Table Size                                                            138" x 23.6"
Travels
                X Axis Travel                                       126"
                Y Axis Travel                                       29"
                Z Axis Travel                                       25"
Spindle Nose To Table                                       4.724" - 29.133"
Spindle Center To Column                                 31"
Table Load Capacity                                          5,511 Lbs
Spindle Taper                                                    BT40/CAT40/DIN 40 (Opt BT50/Cat 50 / DIN 50)
Spindle RPM
                BT40                                                 75 - 10,000 RPM
                BT50                                                 75 - 6,000 RPM
Main Motor
                BT40                                                 15/20 HP
                BT50                                                 25/25 HP
ATC Magazine                                                  24 / 32 / 40
Rapid Traverse                                                  1260 IPM
Cutting Feed                                                     472 IPM

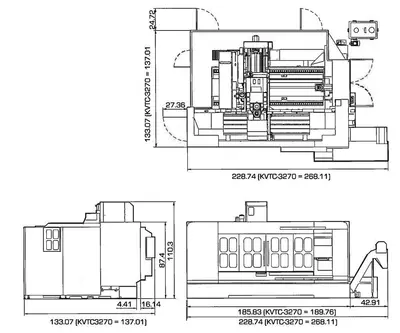

Approx Dimensions                                         164" x 268" x 118"
Approx. Weight                                                38,581 Lbs
