NEW KENT USA KLT-2000

Equipped With
NEW KENT USA MODEL KLT-2000 CNC TURNING CENTER
KENT USA KLT-2000 series CNC slant bed lathe combines proven machine design with advance technology in control and manufacturing.  Reliability and stability make these a favorite among demanding job shops and in-house productions alike.  The heavy duty turret and rigid machine body structure enable higher turning efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around.  Upgrade your global competitiveness today.
8” 3-jaw chuck with 2” bar capacity
5” max turning diameter, 15.7” max turning length
45° slant bed with one piece Meehanite® casting for superior dampening and stability
High grade C3 precision ball screws and pretension for enhanced precision
Auto lubrication system metered check valves and piston distributor
STANDARD EQUIPMENT
Fanuc 0i-T CNC control with 10.4” color LCD
Fanuc i-Series high torque spindle and axis motor with digital drive system
Fanuc Auto-Measure System (X and Z)
Fanuc Macro-B and High Speed Skip Function
Fanuc USB, PCMCIA, Ethernet and RS-232 ports
Fanuc Manual Guide i – computer assist programming
Fanuc 400 registered part program numbers and 640M part program memory
Swivel-Out control panel
Heat exchanger for electrical cabinet
Hydraulic power supply unit
Flood coolant system (4 bar)
Chain (Hinge) type chip conveyor and chip cart
Full enclosure and way covers
Automatic lubrication system
3 color stack indicator light
8 station heavy duty high precision turret (10/12 station optional)
Standard soft jaws 3 sets + hard jaws 1 set
Precision Linear Guideways on X and Z axis
45° slant bed with one piece Meehanite® casting
C-3 grade high precision ball screws
Facing tool holder (R/H) 25×25 mm 1 set
Facing tool holder (L/H) 25×25 mm 1 set
Boring bar holder ø32 mm 4 sets
Boring bar socket ø32 mm 1 set with 8/10/12/16/20/25 mm
U-Drill holder ø32 mm
U-Drill sockets ø32 mm 1 set with 16/20/25 mm
Drilling sockets ø32 mm MT 1/2/3
Operator and Maintenance/Parts manuals

SPECIFICATIONS
Control                                            Fanuc 0i-TF
Swing Over Bed                             20.5"
Spindle Over Cross Slide               12.6"
Max Turning Diameter                    11.8"
Max Turning Length                       15.7"
Bed Slant Angle (Box Ways)          45 Deg
Spindle Nose Taper                        A2-6
Power Chuck Diameter                  8"
Spindle Speed                               4,500 RPM
Spindle Motor                                20 HP
Bar Capacity                                  2"
Travels
     Z Axis Travel                            15.7"
     X Axis Travel                            6.69"
Rapid Traverse (X / Z)                  1181 IPM
Tailstock Body Travel                    7.87"
Tailstock Quill Travel                     5.9"
Tailstock Quill Taper                      MT 4

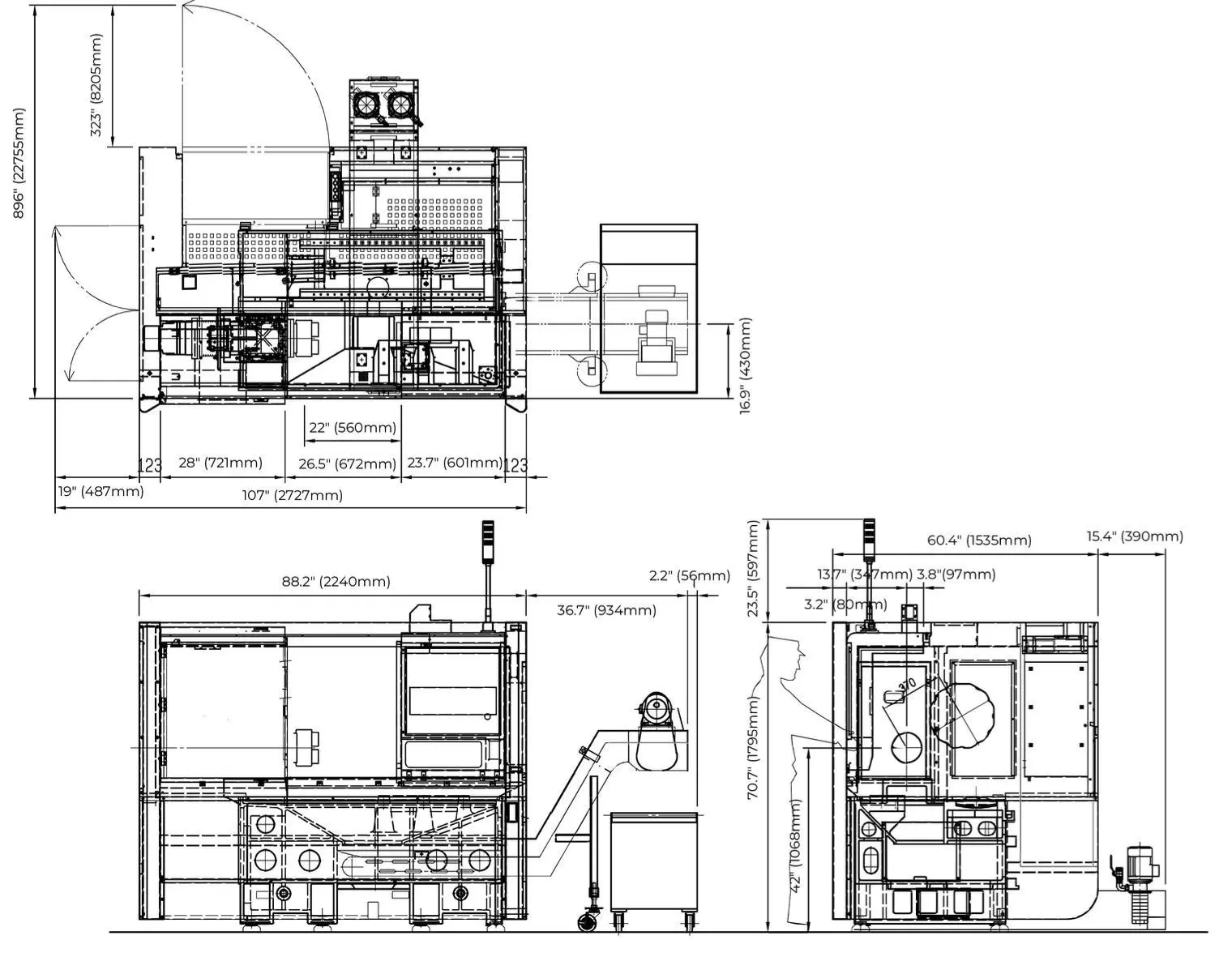

Approx Dimensions                      126" x 71" x 91"
Approx. Weight                             3300 Lbs
