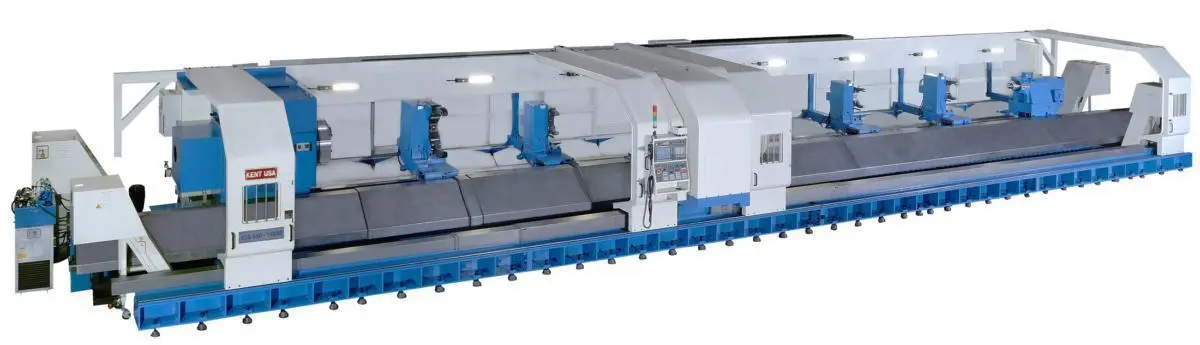

NEW KENT USA CLB

Equipped With
NEW KENT USA CLB 5-AXIS MILLING TURNING CENTER
Product Highlights
The Kent CNC 5-Axis Milling Turning Center provides 2 excellent configurations for complex multi-tasking milling and turning. The sub-spindle system is built on an independent guideway to provide maximum support. Both 5-axis milling turning centers are also equipped with a 20 ATC system for multi-tasking processing.
Maximum Cutting Diameter
37.4″
Center Height
27″
Distance Between Centers
118.1″-551.2″
Control
Fanuc 0i-TF
Bed Width
43″
Bed Way
2 Box way for Carriage; 1 V-Way and 2 flat way for tailstock and steady rest
Spindle Bore
6″ (Opt. Up to 16″)
Spindle Nose
A2-11 (Opt. Up to A2-28)
Spindle Speed
9-900 to 5-250 RPM
Spindle Center
MT#6
Spindle Power
40/50 HP
Quill Diameter
7.87″ (Opt. 9.8″)
Quill Stroke
9.8″
Quill Movement
Hydraulic
Tailstock Center
MT#6


X-Axis Feed Rate
197 ipm
X-Axis Ballscrew Diameter
50mm x P5
X-Axis Stroke
22″
Z-Axis Ballscrew Diameter
80mm x P10
Z-Axis Stroke
118″ up tp 551″
Y-Axis Feed Rate
197 ipm
Y-Axis Ballscrew Diameter
40mm x P5
Y-Axis Stroke
±3.9″

Boring Bar Compound with Tailstock

Control
Fanuc 0i-TF
X2 Servo Motor
5.4 HP
Z2 Servo Motor
9.4 HP
Boring Bar Diameter
5.9″ (Opt. 9.8″)
Internal Holte Maximum Cutting Diameter
9.8″ – 33″ (Opt. 13.8″ – 37″)
Internal Hole Maximum Cutting Depth
59″ (Opt. 98.4″)
X2 Rapid Traverse
197 ipm
X2 ballscrew Diameter
40mm x P5
X2 Stroke
11.8″
Z2 Rapid Traverse
197 IPM
Z2 Ballscrew Diameter
63mm x P5
Z2 Stroke
118″
