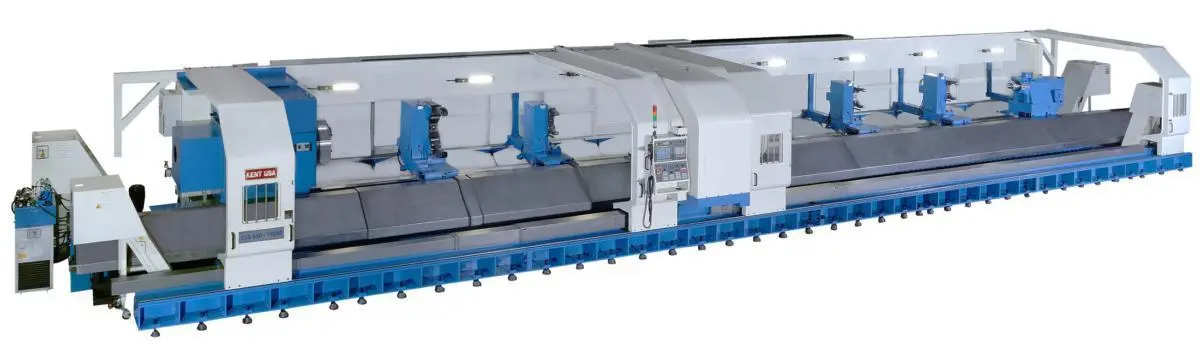

NEW KENT USA CLB-B

Equipped With
NEW KENT USA CLB-B 5-AXIS MILLING TURNING CENTER
Product Highlights
The Kent CNC 5-Axis Milling Turning Center provides 2 excellent configurations for complex multi-tasking milling and turning. The sub-spindle system is built on an independent guideway to provide maximum support. Both 5-axis milling turning centers are also equipped with a 20 ATC system for multi-tasking processing.
Maximum Cutting Diameter
37.4″
Center Height
31.7″
Distance Between Centers
196.9″
Control
Fanuc 31iB
Bed Width
50.8″
Bed Way
2 Box way for Carriage; 1 V-Way and 2 flat way for tailstock and steady rest
Spindle Bore
9.1″
Spindle Nose
A2-15
Spindle Speed
9-600 RPM
Spindle Center
MT#6
Spindle Power
40/50 HP
Sub Spindle Mode
Kenturn MV2005B-CTS + 20 Tool ATC
Sub Spindle Servo Motor
Fanuc 15/6000i
Sub Spindle Speed
300-4500 RPM
Tool Size
BT50/CAT50/ISO50
Quill Diameter
7.87″ / 9.84″
Quill Stroke
9.8″
Quill Movement
Hydraulic
Tailstock Center
MT#6
X-Axis Feed Rate
197 ipm
X-Axis Ballscrew Diameter
50mm x P5
X-Axis Stroke
33″
X-Axis Servo Motor
Fanuc 5.4 HP
Z-Axis Ballscrew Diameter
80mm x P10
Z-Axis Servo Motor
Fanuc 9.4 HP
C-Axis Indexing System
CS Axis
Y-Axis Feed Rate
±4″
Y-Axis Ballscrew Diameter
40mm x P5
Y-Axis Servo Motor
Fanuc 5.4 HP with Brake
B-Axis Index Accuracy
15″
B-Axis Motor
Fanuc 4 HP
B-Axis Min Increment
0.001 mm
B-Axis Traverse
±90°
Steady Rest Quill Diameter
3.15″ (Opt. 4.13″)
Steady Rest Capacity
11.8″-19.7″ (Opt. 29.5″-37.4″)
