Equipped With

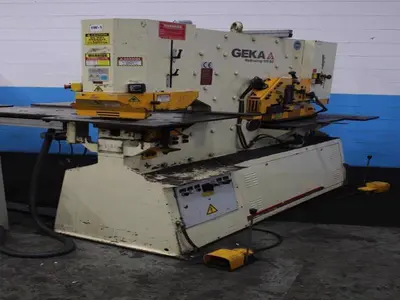

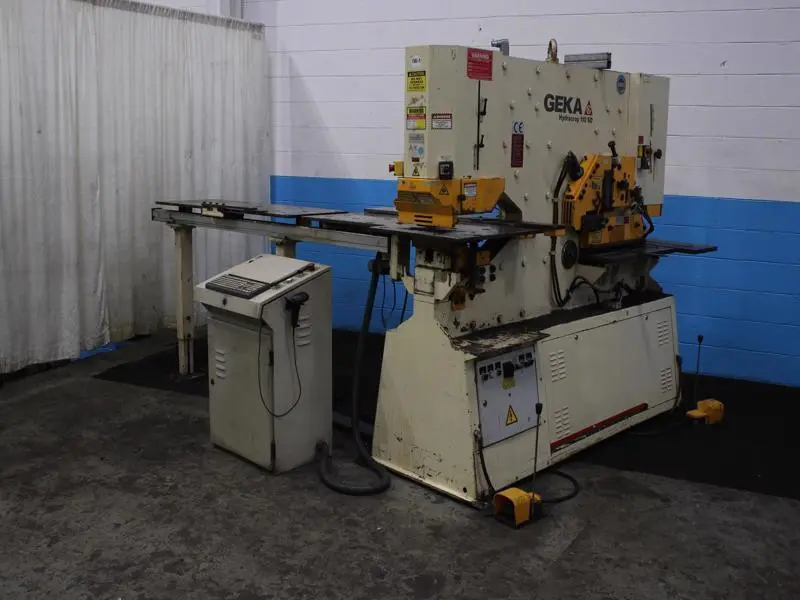

110 TON GEKA MODEL HYD 110 SD CNC HYDRAULIC IRONWORKER
NEW 2012
SPECIFICATIONS:
CAPACITY ........................ 110 TON

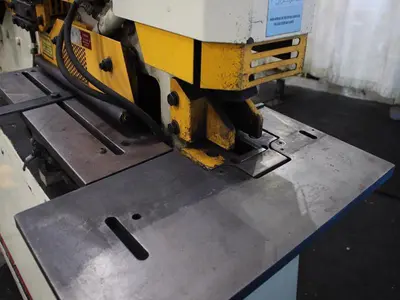

PUNCHING CAPACITY ............... 1-1/2" X 3/4"
DEPTH OF THROAT ................. 24"
STROKE .......................... 3-5/32"
SHEAR FLATS ..................... 24" X 5/8"; 16" x 3/4"

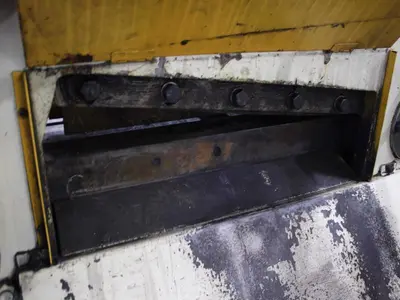

LENGTH OF BLADES ................ 24"
ANGLE SHEAR CAPACITY ........... 6" X 6" X 1/2"
ANGLE SHEAR @ 45 DEGREES ........ 3" X 3" X 5/16"
BAR CROPPER ROUND BARS .......... 2", SQUARE BARS 2"
NOTCHER ......................... SHEET METAL 1/2", ANGLE IRON 4"
NOTCHER DEPTH & WIDTH ........... 3-1/2" X 2"
STROKES PER MINUTE ............. 20 @ 3/4"
TWO FOOT PEDALS ................. YES
DUAL RAMS ....................... YES
2 AXIS CNC GAUGING .............. YES
MOTOR ........................... 7-1/2 HORSEPOWER
