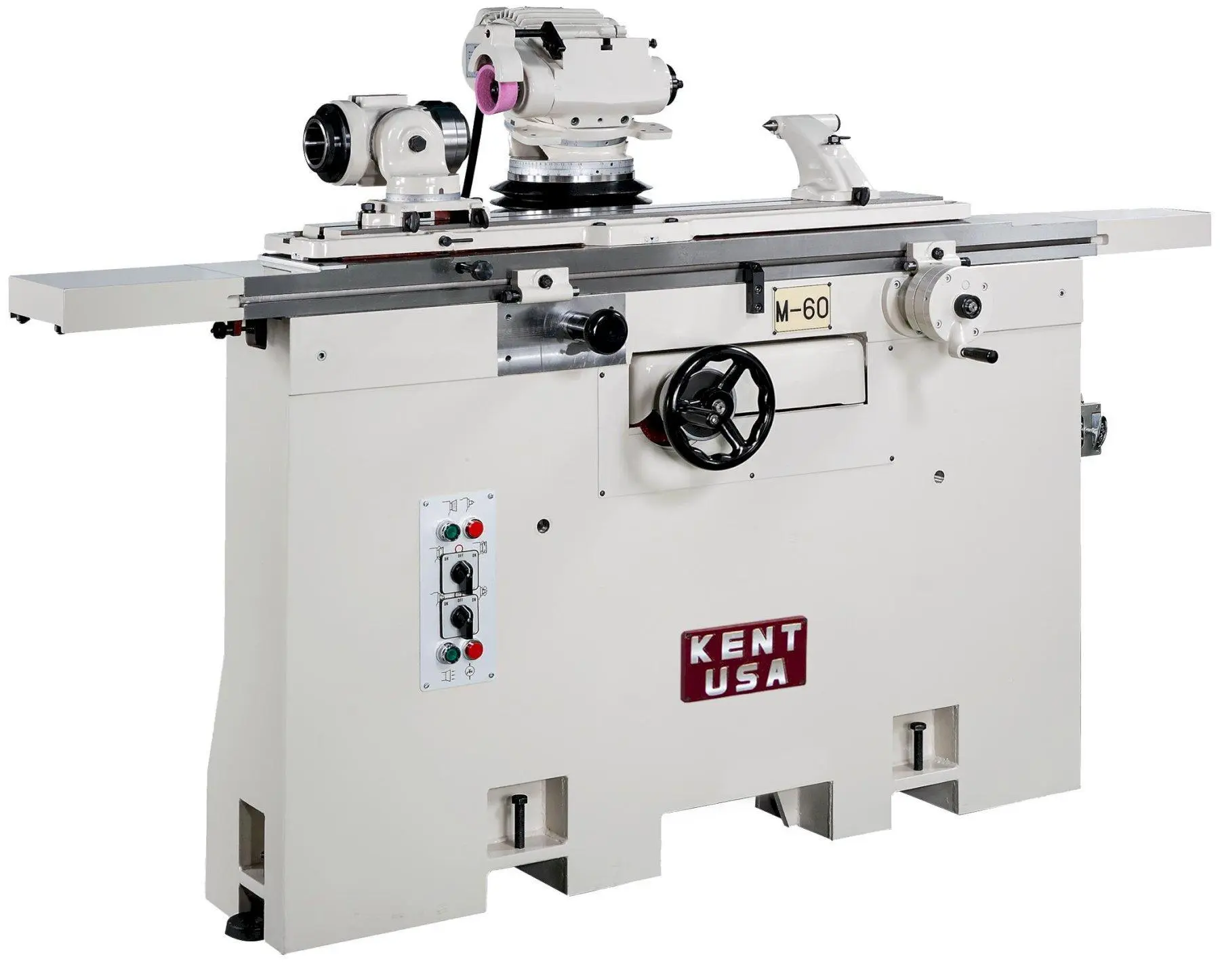

KENT USA MODEL M-60 UNIVERSAL TOOL & CUTTER GRINDER - NEW
PRODUCT FEATURES
1.5 H.P. Spindle Motor;
Precision ABEC 7 Angular Contact Ball Bearing Spindle;
Roller ball on linear table ways for easy and smooth movements;
Centralized one-shot lube; Table Swivels 120 degree Allows for More Versatile Setups;
Tilting Wheelhead Also for Easy Angle Grinding;
Accessories
Standard Accessories
Leveling Blocks
Workhead
Right-hand Tailstock
Center Gauge
Ejector Rod
Center for Workhead Spindle MT5
Diamond Dresser Holder
Grinding Wheel Washer Set
Wheel Guard (Outer Diameter of Grinding Wheel Max. Ø90)
Wheel Guard (Outer Diameter of Grinding Wheel Max. Ø110)
Wheel Guard (Outer Diameter of Grinding Wheel Max. Ø125)
Wheel Guard (Outer Diameter of Grinding Wheel Max. Ø150)
Wheel Guard Holder (short)
Wheel Guard Holder (long)
2 Sets Grinding Wheel Flanges
4” Grinding Wheel Flange Extension (Ø31.75 mm)
Grinding Wheel (PA 90D x 38T x 31.75H)
Grinding Wheel (GC 125D x 38T x 31.75H)
Grinding Wheel (WA 150D x 13T x 31.75H)
Grinding Wheel (GC 150D x 13T x 31.75H)
Grinding Wheel (WA 150D x 19T x 31.75H)
Draw-in Bolt for Workhead and Spacer (metric thread)
Wheel Spanner
Collet Wrench
Fixture Rod
Open End Wrench (17-19 mm)
Combination Wrench (19 mm)
Combination Wrench (24 mm)
Tool Box & Adjusting Tool
Optional Accessories
Left-hand Tailstock
Tool Holder
MT5 to MT2 Morse Taper Sleeve
MT5 to MT3 Morse Taper Sleeve
MT5 to MT4 Morse Taper Sleeve
4” Grinding Wheel Flange Extension (Ø12.7 mm)
Universal Tooth Rest Plate and Blade Holder Extension Tool Grinding Attachment
Plain Tooth Rest Holder
Plain Tooth Rest Holder
Fine Adjustment Guide Rod
Grinding Wheel (WA 76D x 12.7T x 12.7H) 31.5C Chuck
Grinding Wheel (A 100D x 1.5T x 12.7H)
Frequency Converter
T-Wrench
Belt for Spindle Drive
Touch-Up Paint
Radius Grinding Attachment (Radius NO.1)
Radius Grinding Attachment (Radius NO.2)
Face Mill Grinding Attachment
Helical Grinding Attachment
Cylindrical Grinding Attachment
Internal Grinding Attachment
Workhead Indexing Attachment
Extended Grinding Wheel Spindle
Surface Grinding Attachment
Drill Pointing Attachment
Lathe Tool & Planer Tool Grinding Attachment
Spring Collet Set
Dust Collector
Wet Grinding Attachment with Waterproof Equipment
5C Chuck
CCD System with Software and IPC
Linear Scale (Resolution of X and Y axes is 0.001)
Linear Guideway – X axis (M-40)
Hydraulic Device – X axis (M-40) Travel:350 mm
PLC Controller – X axis (M-40) Travel:300 mm
PLC Controller – Y axis
Upgrading Grinding Wheel Spindle Motor to 2 HP
CE Safety Device
Transformer
Swing Over Table:
10” (250mm)
Distance Between Centers:
35.43”
Distance Between Tailstock and Workhead:
30.7”
Taper Hole in Workhead Spindle:
One End – ASA #50; other end – M.T. #5
T-Slot (number and size):
One - 0.565”
Working Surface:
5 5/16” x 44.88”
Grinding Wheel Spindle:
2600, 3700, 6200 R.P.M.
Spindle Motor:
1.5 H.P.
Table Longitudinal Travel:
23.62”
Saddle Cross Travel:
10”
Table Swivel Travel:
+/- 60°
Table Graduation on End:
+/- 10°
Wheel Head Tilt:
+/- 15°
Wheel Head Swivel:
360°
Vertical Travel of Wheel Head:
10”
Wheel Spindle Center to Top of Table:
Max – 12”, Min – 2”
Wheel Spindle Center to T-Slot Center:
Max – 16.5”, Min – 6 ½”
Floor Space Required:
61” x 108”
Packing dimension:
(L x W x H) 120" x 70" x 60"
Net weight:
2,800 LBS
Gross weight:
3,200 LBS
