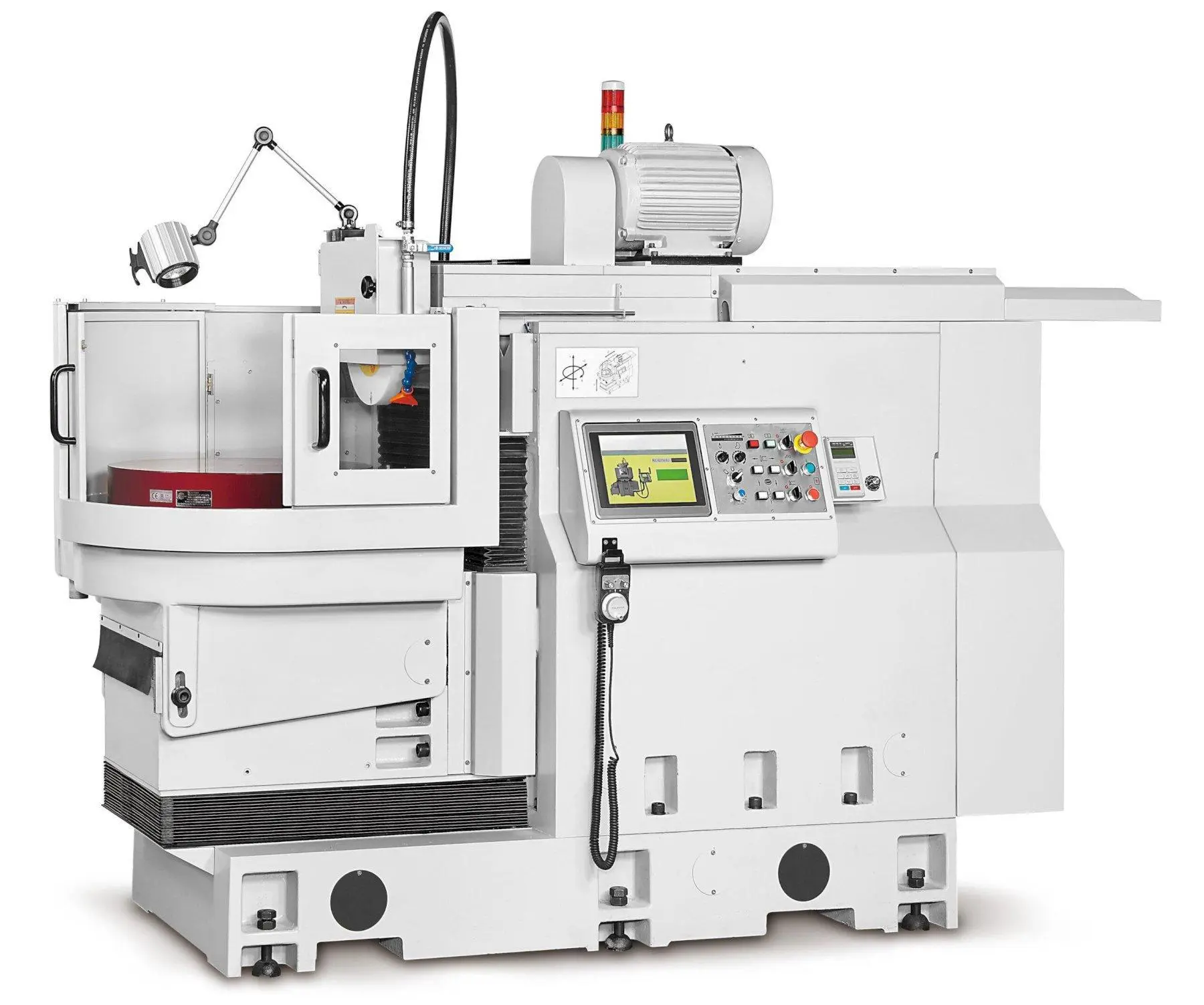

NEW 23.6" KENT USA MODEL KRGH-600 CNC ROTARY SURFACE GRINDER
FEATURES
Z-axis W/ double V, longitudinal V & flat Turcite way
AC servo motor drive for 3 axes,
10″ color touch screen with CNC controlled
Auto wheel dressing with compensation
Open top splash guard
Auto lubrication system
SPECIFICATIONS
Rotary Magnetic Chuck Diameter 23.6"
Max Grinding Radius 12.9"
Distance Table Surface To Spindle Surface 13.7"
Rotary Magnetic Chuck Speed 10-100 RPM
Rotary Magnetic Chuck Motor 2 HP
Spindle Motor 10 HP
Spindle Speed 1750 RPM
Auto Downfeed Power 2 HP
Vertical Downfeed Graduation 0.00004"
Wheel Size 14" x 1.5" x 5"
Net Weight 13,220 Lbs
Gross Weight 13,550 Lbs
Approx. Dimensions 106" x 52" x 72"
Accessories
Standard Accessories
Grinding wheel (Dia x Thickness x Bore) 14″x1.5″x5″ (60HZ)
Grinding wheel adaptor (flange) & puller
Arbor & nut for wheel balancing
Diamond tool (1/4 carat) with a base
Dust sweeping plate
Halogen Working lamp (fitted on the machine)
Leveling plates
Leveling bolt with nuts
Eyebolt
T-Nut & screws Tool box & Tools
Lubricant oil (4 liters, Mobile #1405 ) Plug (5/8″)
Touch up paint
Operation manual and inspection sheet
Coolant system C/W a magnetic dust separator
Automatic diamond wheel dresser with compensation
Automatic demagnetizing controller for electro-magnetic chuck
Electro-magnetic chuck (standard)
Grinding wheel balancing apparatus
Spare grinding wheel flange
Spindle overload protection device
Standard splash guard
Optional Accessories
Spindle inverter(3 HP/ 440V/ 60Hz)
Heidenhain” two axes DRO system
Coolant system and paper filter (10.5 gal )
Coolant system with paper filter and magnetic dust separator (10.5 gal)
Cutting fluid cooler
Auto dynamic balancer for grinding wheel on machine
Grinding wheel flange (auto & dynamic)
