Equipped With

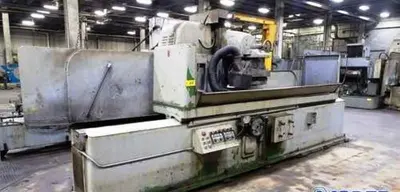

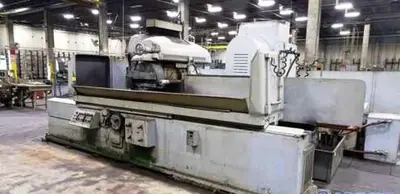

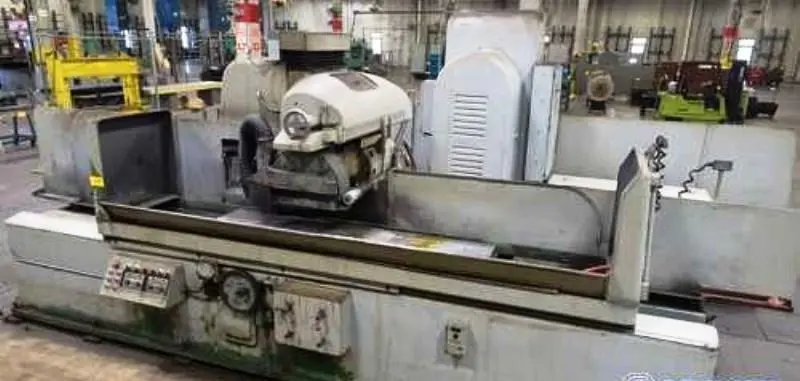

18" X 84" THOMPSON MODEL C HYDRAULIC SURFACE GRINDER
NEW 1952
SPECIFICATIONS:
GRINDER WORK CAPACITY ................. 84" X 18" X 16" HIGH
WHEEL SIZE ............................ 20" X 6" X 12"
TABLE TRAVEL .......................... 96"
CHUCK SIZE ............................ (2) 42" X 18" X 4-7/8"
SPINDLE SPEED ......................... 1200 RPM
TABLE FEEDS ........................... 10 TO 100 FPM
INCREMENTAL DOWNFEED .................. .0002 TO .004 IPR
AUTOMATIC CROSS FEED .................. YES
POWER ELEVATION ....................... YES
OVER THE WHEEL DRESSER ................ YES
CHUCK CONTROLS WITH NEUTROFIER ........ YES
COOLANT ............................... YES
TABLE BED WAY COVERS .................. YES
HYDRAULIC MOTOR ....................... 10 HORSEPOWER
SPINDLE MOTOR ......................... 30 HORSEPOWER
