Equipped With

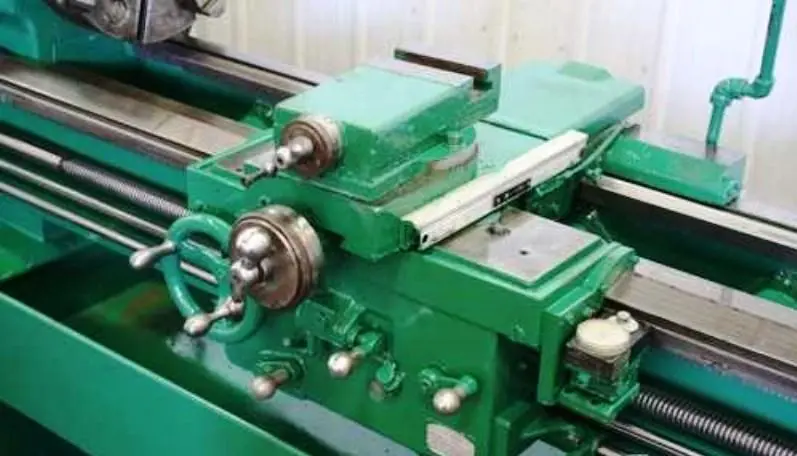

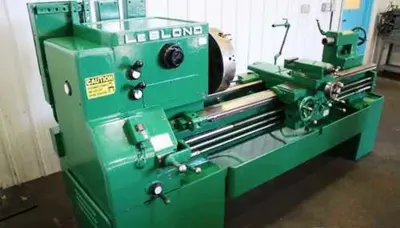

21" X 54" LEBLOND SERVO ENGINE LATHE
SPECIFICATIONS:
SWING OVER WAYS ................ 21"
SWING OVER CROSS SLIDE ......... 13"
DISTANCE BETWEEN CENTERS ....... 54"
SPINDLE SPEEDS ................. (12) 40 TO 1600 RPM
FEEDS .......................... () .0023 TO .132 IPR
THREADS ........................ () 2 TO 112 TPI
DIAMETER OF SPINDLE HOLE ....... 1-3/4"
3-JAW CHUCK .................... 13"
HARDEN REPLACEABLE WAYS ........ YES
THREAD DIAL .................... YES
MOTOR .......................... 10 HORSEPOWER
