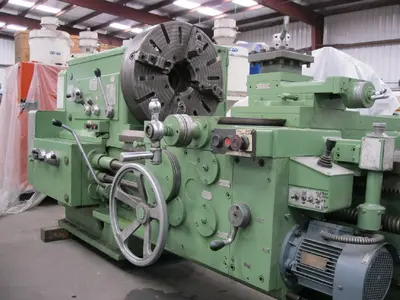

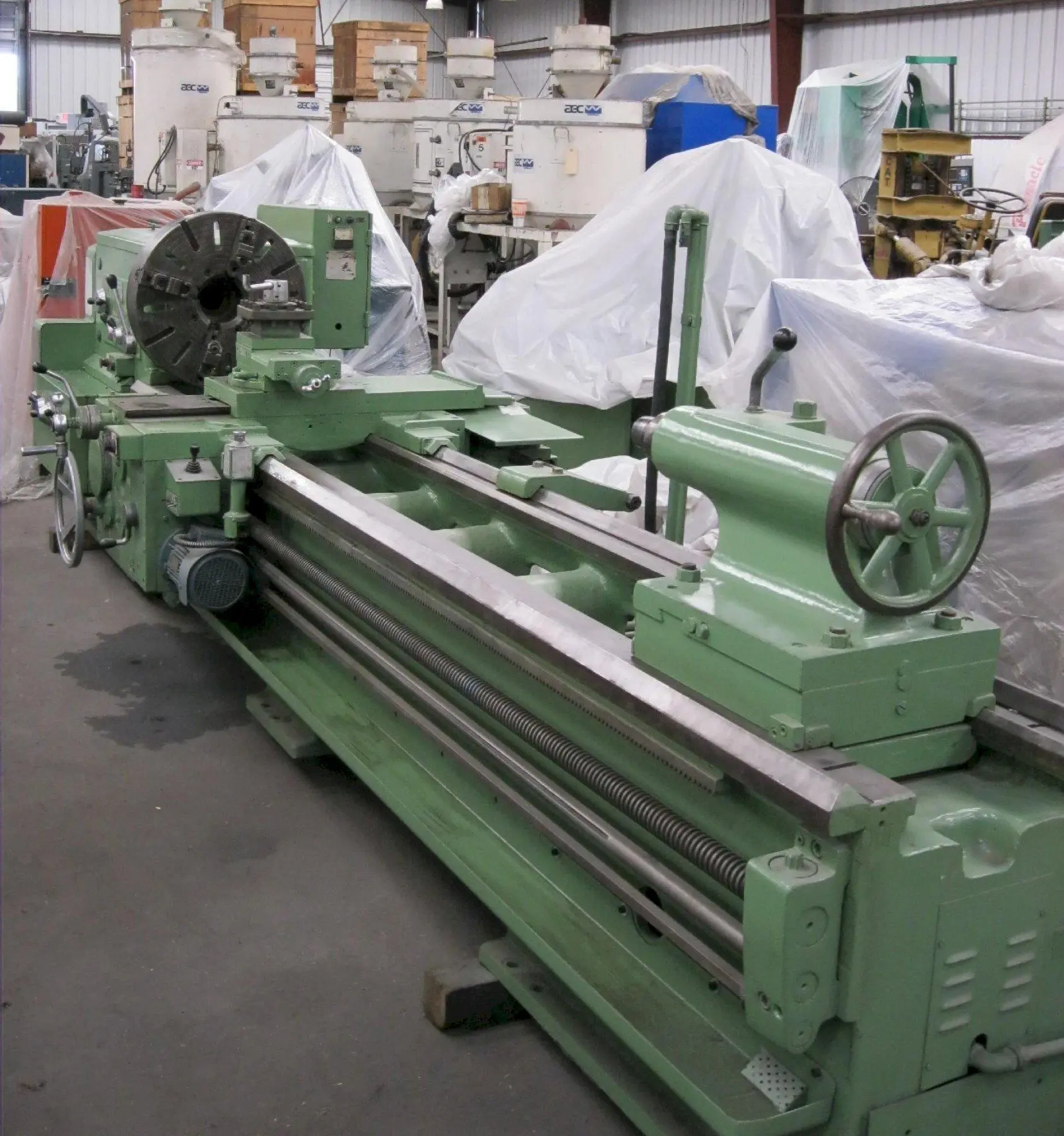

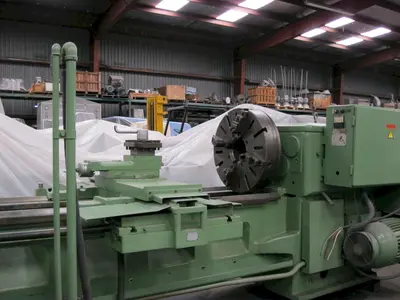

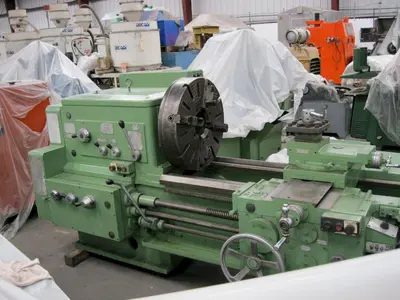

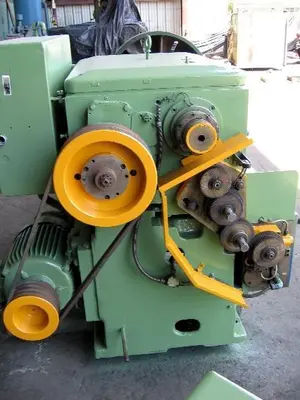

27" x 118" RYAZAN MODEL 1M63N ENGINE LATHE

Equipped With
27" x 118" RYAZAN MODEL 1M63N ENGINE LATHE
New 1991
Swing over the bed                27.56”
Swing over the carriage        13.78”
Cross slide travel                   15”
Center distance                      118”
Chuck                                     21” 4-jaw with a 4” hole in the chuck, 2-piece top jaw
Spindle hole                           4 1/8”
Threading                              Inch, Metric, Diametral and Modular threading
Taper attachment                  Yes
Spindle speeds                       10-1250, 22 steps
Feeds                                      32
Main motor                            20 hp
Electrics                                 currently 440volt
Dimensions                            206” Long x 70” wide x 60” high
Weight                                   12,600 lbs.
