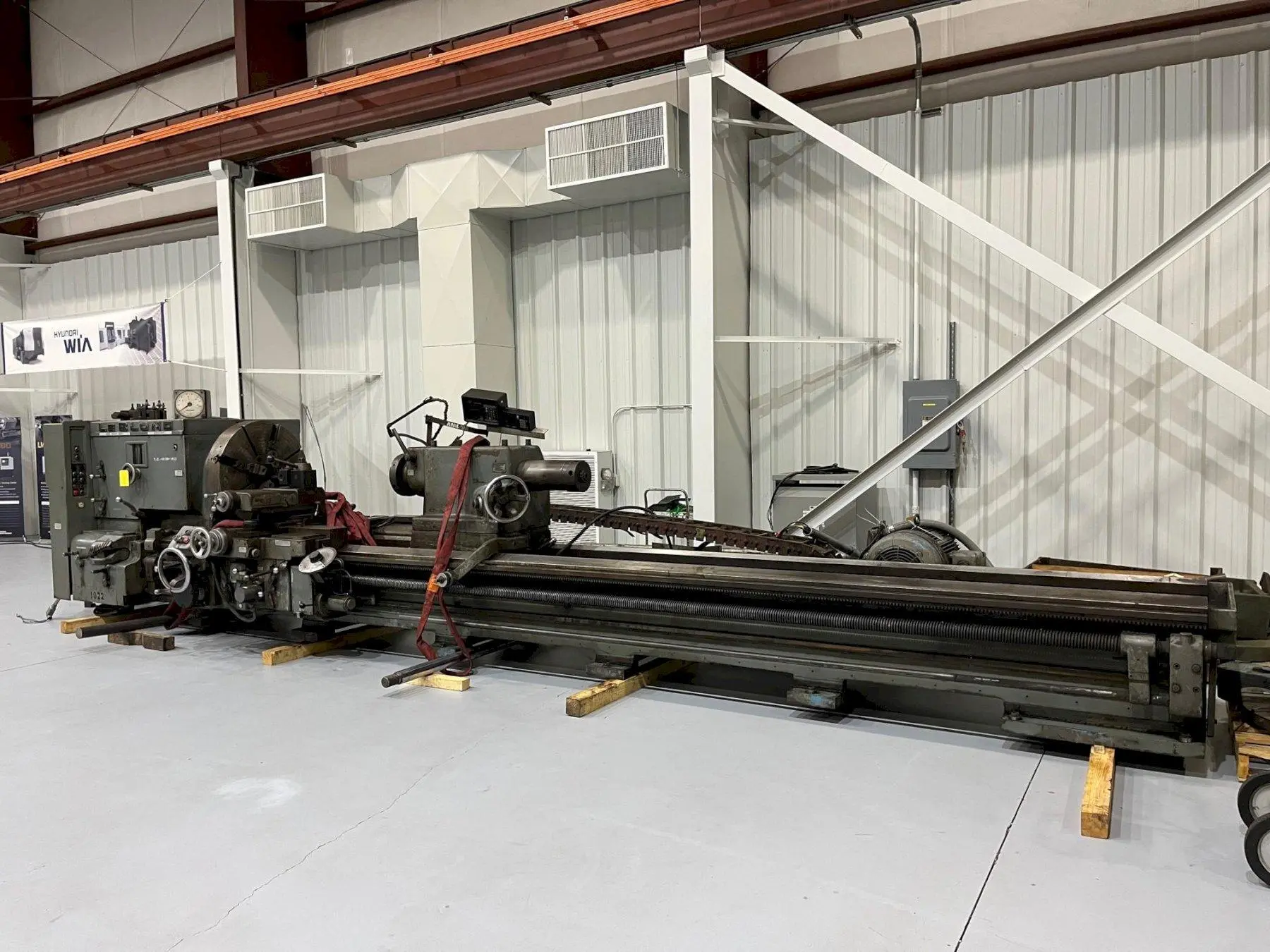

40" x 204" LEBLOND MODEL NK4025 HEAVY DUTY ENGINE LATHE

Equipped With
40" x 204" LEBLOND MODEL NK4025 HEAVY DUTY ENGINE LATHE
New 1969
Swing over bed ways ......................................................................................... 40"
Swing over cross slide ...................................................................................... 25”
Distance between centers (17’) ......................................................................... 204"
Bed width ........................................................................................................... 34"
Bed depth ........................................................................................................... 26"
Spindle mount ................................................................................................... 11”A1
Spindle center to floor ....................................................................................... 44”
Hole thru spindle ................................................................................................ 3.062"
Spindle RPM (36 speeds) .................................................................................... 5.4 to 600 RPM
Threads per inch ............................................................................................... ¾” to 46 TPI
Feeds ................................................................................................................. .004” to .250” IPR
Tailstock, quill diameter ..................................................................................... 8"
Tailstock, quill taper ........................................................................................... #6
Tailstock, quill travel ........................................................................................... 18"
Tailstock, quill taper ........................................................................................... #6 MT
Tailstock, quill chuck mount ............................................................................... 11” A1

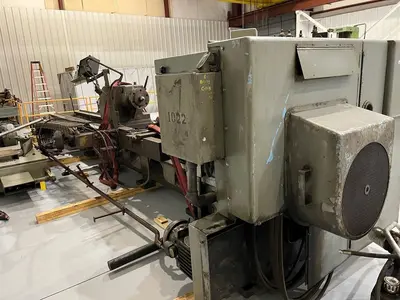

Main motor horsepower ..................................................................................... 75 HP
Electrics – 220/440 ............................................................................................ 440 volt (wired)
Floor space (l x w x h) ........................................................................................ 355’ x 90” x78”
Weight ............................................................................................................... 43,000 lbs.
Equipped with:
 Hardened and ground bed ways

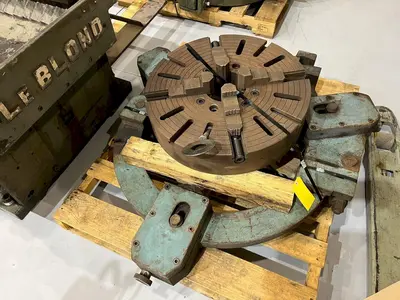

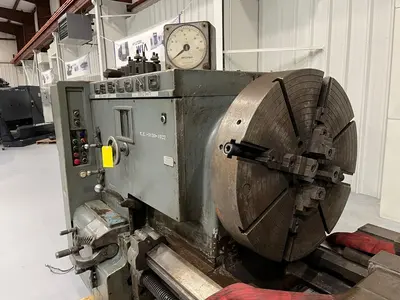

 32" chuck, 4-jaw, t-slotted
 25" chuck, 4-jaw, t-slotted
 Rapid traverse
 Threading dial
 Micrometer carriage stop
 Aloris EA tool post with EA1 holder

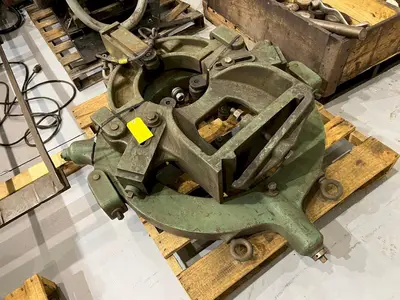

 (1) steady rest, 24“ capacity
 (1) steady rest, 20“ capacity
 (1) steady rest, 12“ capacity

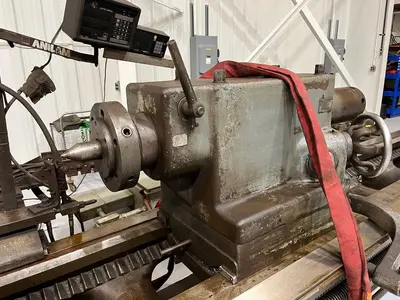

 Tailstock live quill, w/ 11”-A1 chuck mount
