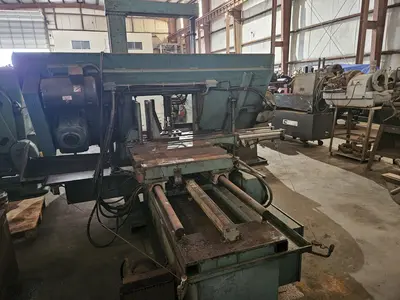

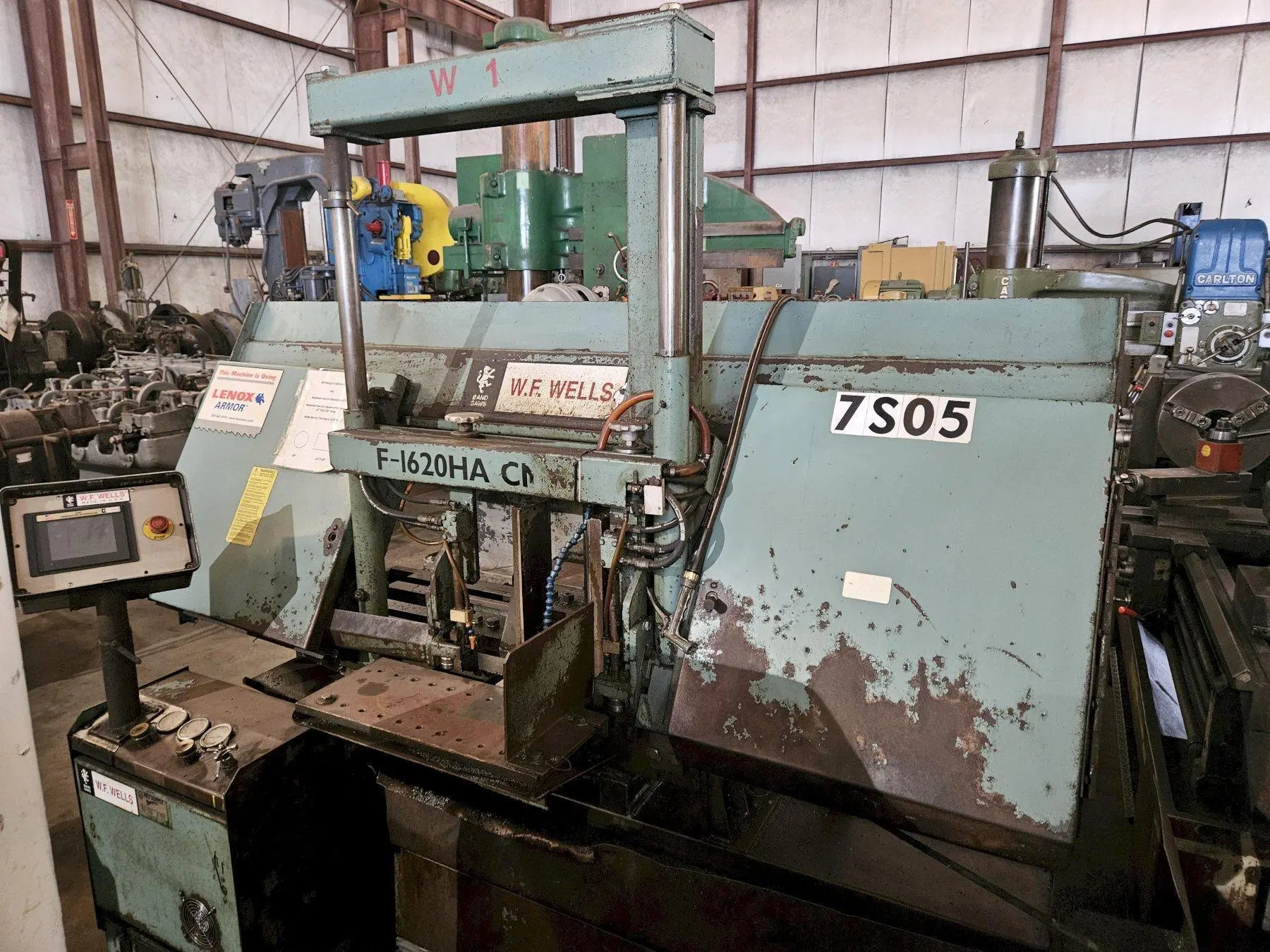

16" X 20" W.F. WELLS MODEL F-1620-HA CNC FULLY AUTOMATIC HORIZONTAL BAND SAW
Overview
Specifications
Equipped With
16" X 20" W.F. WELLS MODEL F-1620-HA CNC FULLY AUTOMATIC HORIZONTAL BAND SAW
Serial NO. A2862-FHA0515
SPECIFICATIONS
Capacity Rectangular at 90 Degrees: 17" High x 20" Roung
Capacity Round: 17" Diameter
Weight Capacity: 5000 lbs.
Blade Speed: 60 to 500 SFPM
Blade Size: 1-1/2" x 0.050" x 16'8"
Blade Guide: Roller Guides with Carbide Inserts
Vise: Hydraulic, Full Stroke, 15" High
Bandwheel Size: 22"
Blade Tension: Hydraulic
Blade Drive: 10 HP, AC Vector Drive
Sawing Force: 0 to 750 lbs.
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 35"
Shipping Weight: 4500 lbs.
Dimensions (LWH): 104" x 101" x 88"
