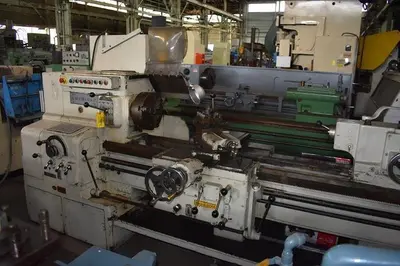

USED 1969 AMERICAN STYLE C
Overview
Specs
Equipped With
21.5" X 54" AMERICAN "STYLE C 16X54" ENGINE LATHE
NEW 1969
EQUIPPED WITH: 12" 3-JAW CHUCK HARD WAYS - 4-WAY TOOL POST FULL-LENGTH LEAD-SCREW THREADING QUICK CHANGE GEAR BOX AND THREADING DIAL FULL LENGTH COOLANT-CHIP PAN
SPECIFICATIONS:
Hole thru spindle
2
Hole thru spindle
2"
Swing over bed ways, rated
16"
Swing over bed ways, actual
21.5"
Swing over carriage wings
20"
Swing over cross-slide
13"
Distance between centers
54"
Cross-slide cross-feed travel
12.25"
Top-slide cross-feed travel
4"
Tailstock, spindle diameter
4"
Tailstock, spindle travel
10"
Tailstock, spindle taper
#4 MT
(27) spindle speeds, range
23 TO 1500 RPM
(66) carriage longitudinal feeds
.0015 TO .091 IPR
(66) thread changes, range
2 TO 120 TPI
Weight, approximately
10000 LBS
